nrg global instruments make U – Tube , single limb , inclined tube Manometer is the basic and mostly used style of manometer. The U - Tube manometer is a versatile, economical instrument for the measurement of pressure, vacuums or differential pressures. Pressure measurements are accomplished by balancing a vertical head of indicating fluid with the pressure to be measured. As there is no cams, gears or levers to operate in the manometer, the readings obtained are always accurate. The U Tube Manometer, have “U” shaped tube, half filled with liquid (Water / Mercury / SP Gr. 0.81). When both the tubes are open, the liquid is at the same height in each leg (Tube / Limbs). When positive pressure is applied to one leg the liquid is forced down in that leg and up in the other. The difference in the height, which is the sum of the reading above and below zero, tells you the pressure. When vacuum is applied to one leg, the liquid rises in that leg and falls in the other. The difference in the height indicates the amount of vacuum. The U Tube Manometer, consisting of two Glass Limbs. Stainless Steel / Brass Connecting fittings mounted on a metallic frame, provided with White Acrylic Scale with zero at the center. The U Tube Liquid Column Manometer we provide is used to determine Velocity and Static Pressure, Leakage, Fan Efficiency and Gas Pressure. The Manometer will be protected with transparent acrylic front cover fix with Aluminum frame and external zero adjustment Knob / Drain Plug / Fill Plug will Be Provided

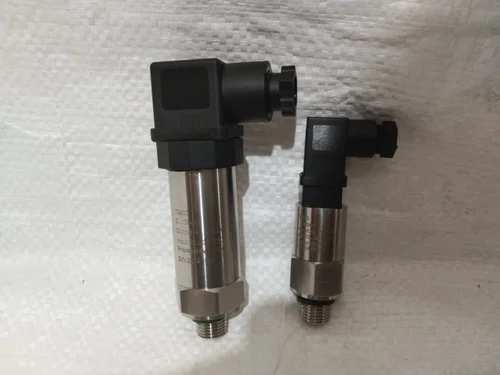

Nrg global make PRESSURE TRANSMITTER Output: 4....20 Ma Wiring: Two wire Power supply: 10...30 VCD Accuracy: 0.25 % of BSFL Zero span adjustment: YES Electrical connector: Plug as per DIN 175301-803A Process connection: 1/2” BSP Body & wetted part: SS 316L Medium temperature: -30...+100 oc Data sheet: PE 81.61 Range: 0...16 Bar

· Full Bore Electromagnetic Flow Meter · Best Accuracy :- +/- 0.5 % Of Reading · Excellent Measuring Accuracy To Low Velocity, Measure Double Directions Flows · Buried Sensor (IP 68) No need Measure Well While Instillation; · Precision Coil Winding Technology, Make Magnetic Field More Uniform · Build-in Reference Electrode, No Need Connect Ground Ring; · Dual Frequency Excitation And Stubble Zero Point; · Self-Diagnostic Function, And Intelligent Operation APPLICATION: · ETP/STP Plant · Bore Well Water · Water Base Chemical Mixing Plant · Water Bathing Plant · Ro Plant · Starch Slurry · Food Mixing Plant · Pumping Station Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

· Full Bore Electromagnetic Flow Meter · Best Accuracy :- +/- 0.5 % Of Reading · Excellent Measuring Accuracy To Low Velocity, Measure Double Directions Flows · Buried Sensor (IP 68) No need Measure Well While Instillation; · Precision Coil Winding Technology, Make Magnetic Field More Uniform · Build-in Reference Electrode, No Need Connect Ground Ring; · Dual Frequency Excitation And Stubble Zero Point; · Self-Diagnostic Function, And Intelligent Operation APPLICATION: · ETP/STP Plant · Bore Well Water · Water Base Chemical Mixing Plant · Water Bathing Plant · Ro Plant · Starch Slurry · Food Mixing Plant · Pumping Station Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

Standard ParametersAccuracy : ±1.0% of F. S.Ambient temperature : -20 to +65°CProcess temperature : 300°C max.Operating Pressure Range : 75% of the scale valueOver Pressure Limit : ≤ 100 bar : 125% of Max. Scale Value: > 100 to ≤ 600 bar : 115% of Max. Scale Value: > 600 to ≤ 1600 bar : 110% of Max Scale ValueMaterials of ConstructionCase & bezel : AISI 304 SSBourdon : AISI 316L SSSocket : AISI 316 SS (Directly welded to the case)Movement : AISI 304 SSJoints : Tig Argon Arc WeldingProtection : IP 65Dial : Aluminium, black graduation on white backgroundPointer : Aluminium, black coloured, slotted zero adjustableWindow : Sheet glassFilling Plug : NeopreneGasket : NeopreneGlycerine Filled VersionAccuracy : ±1.6% of F.S.Ambient & Process Temperature : Maximum 65°CWindow : Plexi GlassDampening Liquids : Glycerine 99.7%Temperature EffectThe variation of indication caused by effects of temperature is to be calculated by below formula which is to be added in the specific accuracy while measurement:Formula ±0.04 x (t2-1) % of F.S.where t1: reference temperature (+20°C) and t2: ambient temperature in °C.Bourdon tube pressure gauge All stainless-steel construction Additional Information: Production Capacity: 1000 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

NRG GLOBAL INSTRUMENTS MAKE microprocessor based Ultrasonic level transmitter. It has Multifunction Instruments It is capable of monitoring Virtually Any Short Or Medium Range of Non-Contact Ultrasonic Level Measurements of Liquids, Solids Or Slurries. In this Instrument User can take measurements of Roller Lift of mills, water level and select the range in the range parameter and set Reverse action in Action parameter. It has One Analog Output 4-20mA and two digital control output (we can also define these two digital control output as relay1and 2). NOTE – To measure the level t of the tank ,the sensor has to be placed 22cm above the level as it is defined as the dead zone of the sensor . SPESCIFICATION Measuring Range : 0-15 Meters Main (auxiliary supply) : 24V DC O/P (Analog) : 4-20mA Digital (RL1&2) : +24v common Display LCD : 16 x2 Display value : In CM And MM(Millimeter) Revers Action : User can be take 4-20mA in revers action ACTION PARAMETER - if we mention the value of action parameter as 1 then it will work in reverse order and if value is mentioned as 0 it will work in forward order. RANGE PARAMETER – in range parameter we have to define that value which gives the output of 420mA. WORKING OF TRANSMITTER- (REVERSE ACTION ) if we mention the value of action parameter as 1 , suppose the object is placed 1 m (value of range parameter ) from the transmitter then this value will be considered zero and as the object will move closer to it ,it will begin to sense the distance and will give the output as soon as when the object will be at 22cm it will display maximum range i.e 420 mA. Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

The 80GHz Radar series is NRG radar operating at 76-81 GHz, which has a maximum measuringrange of 120m and nearly zero blind zone. It supports 4-wire and 2-wire applications.Higher operating frequency and shorter wavelength make it ideal for solid applications, includingthose with extreme dust and high temperature to + 2000. Built-in rich algorithm ensure stable outputeven in the application with fast agitator.The main benefitsBased on the self-developed CMOS millimeter wave RF chip, a more compact RF architecture,a higher signal-to-noise ratio, and nearly zero blind zone are realized.5GHz working bandwidth means higher measurement resolution and accuracy.3°antenna beam angle, so the interference in the environment has less impact on the instrument,and the installation is more convenient.Shorter wavelength yields good reflection properties on sloped solids, so aiming towardsmaterial angle of repose is usually not necessary.Remote debugging and remote upgrading is supported to reduce the cost of field personnel

NRG GLOBAL MAKE microprocessor based Ultrasonic level transmitter. It has Multifunction Instruments It is capable of monitoring Virtually Any Short Or Medium Range of Non-Contact Ultrasonic Level Measurements of Liquids, Solids Or Slurries. In this Instrument User can take measurements of Roller Lift of mills, water level and select the range in the range parameter and set Reverse action in Action parameter. It has One Analog Output 4-20mA and two digital control output (we can also define these two digital control output as relay1and 2). NOTE – To measure the level t of the tank ,the sensor has to be placed 22cm above the level as it is defined as the dead zone of the sensor . SPESCIFICATION Measuring Range : 0-15 Meters Main (auxiliary supply) : 24V DC O/P (Analog) : 4-20mA Digital (RL1&2) : +24v common Display LCD : 16 x2 Display value : In CM And MM(Millimeter) Revers Action : User can be take 4-20mA in revers action ACTION PARAMETER - if we mention the value of action parameter as 1 then it will work in reverse order and if value is mentioned as 0 it will work in forward order. RANGE PARAMETER – in range parameter we have to define that value which gives the output of 420mA. WORKING OF TRANSMITTER- (REVERSE ACTION ) if we mention the value of action parameter as 1 , suppose the object is placed 1 m (value of range parameter ) from the transmitter then this value will be considered zero and as the object will move closer to it ,it will begin to sense the distance and will give the output as soon as when the object will be at 22cm it will display maximum range i.e 420 mA. Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

sanitary pressure transmitters have a flush diaphragm which is suitable for the measurement of viscous fluids or media containing particulates that may clog the pressure connection of standard transmitters. The transmitters have piezoresistive technology which incorporates a silicon sensor. The diaphragm and wetted parts are 316L stainless steel. The stability of the silicon element allows the transmitter to be operated at a higher temperature range; at the same time this makes the zero and sensitivity thermal shifts over the whole operating temperature range of the transmitter very small. • 0...100 bar measuring ranges • 4~20mA current loop output • G1/2 - 1/2" BSP(M) process connection • Flush membrane structure without input pressure hole & cavity • Welded isolated diaphragm • High accuracy, high strength, sanitary type • Dimensions can be customized. • Gauge, absolute and sealed gauge pressure types Additional Information: Production Capacity: 100 Delivery Time: 10 days Packaging Details: export worthy packing
