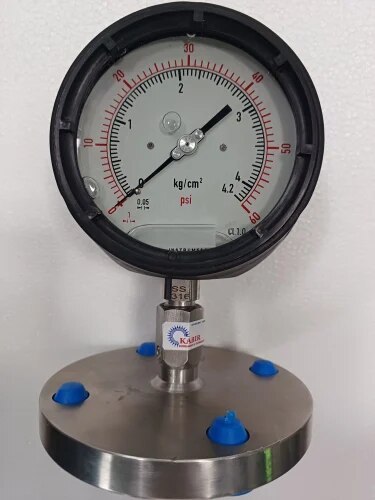

Standard ParametersAccuracy : ±1.0% of F. S.Ambient temperature : -20 to +65°CProcess temperature : 300°C max.Operating Pressure Range : 75% of the scale valueOver Pressure Limit : ≤ 100 bar : 125% of Max. Scale Value: > 100 to ≤ 600 bar : 115% of Max. Scale Value: > 600 to ≤ 1600 bar : 110% of Max Scale ValueMaterials of ConstructionCase & bezel : AISI 304 SSBourdon : AISI 316L SSSocket : AISI 316 SS (Directly welded to the case)Movement : AISI 304 SSJoints : Tig Argon Arc WeldingProtection : IP 65Dial : Aluminium, black graduation on white backgroundPointer : Aluminium, black coloured, slotted zero adjustableWindow : Sheet glassFilling Plug : NeopreneGasket : NeopreneGlycerine Filled VersionAccuracy : ±1.6% of F.S.Ambient & Process Temperature : Maximum 65°CWindow : Plexi GlassDampening Liquids : Glycerine 99.7%Temperature EffectThe variation of indication caused by effects of temperature is to be calculated by below formula which is to be added in the specific accuracy while measurement:Formula ±0.04 x (t2-1) % of F.S.where t1: reference temperature (+20°C) and t2: ambient temperature in °C.Bourdon tube pressure gauge All stainless-steel construction
Additional Information:
Production Capacity: 1000
Delivery Time: EX STOCK
Packaging Details: EXPORT WORTHY PACKING
