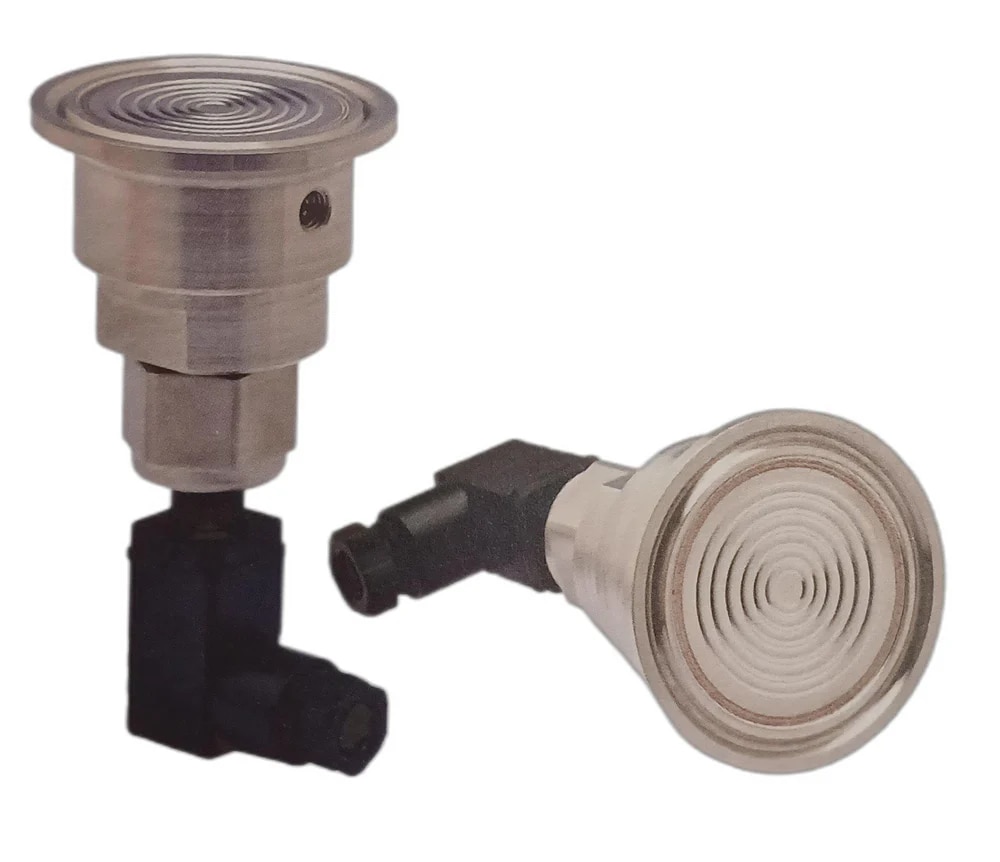

Tri Clamp Sanitary Diaphragm Seal Pressure Transmitter

Phone Number

08048032280

Please keep 0 before dialling the number.

Email Address salesnrgglobal@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 986/20/1, Diamond Park Gate No. 2, G.I.D.C Industrial Estate, GIDC, Makarpura, Vadodara-390010, Gujarat, India

Vadodara, India, 390010

Description

sanitary pressure transmitters have a flush diaphragm which is suitable for the measurement of viscous fluids or media containing particulates that may clog the pressure connection of standard transmitters. The transmitters have piezoresistive technology which incorporates a silicon sensor. The diaphragm and wetted parts are 316L stainless steel. The stability of the silicon element allows the transmitter to be operated at a higher temperature range; at the same time this makes the zero and sensitivity thermal shifts over the whole operating temperature range of the transmitter very small. • 0...100 bar measuring ranges • 4~20mA current loop output • G1/2 - 1/2" BSP(M) process connection • Flush membrane structure without input pressure hole & cavity • Welded isolated diaphragm • High accuracy, high strength, sanitary type • Dimensions can be customized. • Gauge, absolute and sealed gauge pressure types Additional Information: Production Capacity: 100 Delivery Time: 10 days Packaging Details: export worthy packing
