'the manometer'

Nrg make manometer is an instrument that has a small tube in the shape of a u that is filled with liquid to measure pressure or flow. A u-tube manometer is used as an indicator that the fan on the mitigation system is working. The first with the liquid levels in the u-tube equal on both sides, indicating that the fan on the mitigation system is not working properly. The other u-tube manometer the liquid levels on either side of the u- tube are different in height (h), indicating a pressure difference(p1,p2), which confirms that the system is working properly. Size : ¼”, 3/8”, 1/2” (bsp/npt) or nozzle type connection :wall mounting, stand mounting materials :astm a216 gr. Wcb(cs), ss 316, ss 304, ptfe, aluminium, acrylic, m. S, p. P, rubber, neoprene, and other as per customer requirement

Inclined Manometer Defination : Inclined Manometer : Range from 0 - 10 MM WC To 0 - 100 MM WC The is ainclined tube manometer scientific device, used to measure a very low pressure of liquid & gases. It is more suitable for measuring, very low pressure measurements or where greater accuracy is required. This inclined Tube is made by Acrylic or Plastic body.Manometer Working Principle : For measuring the pressure, one tube of the Inclined Tube Manometer forms into a reservoir & the other tube of the manometer is inclined, as per its required angle. After giving the pressure on its reservoir, which are filled with the suitable liquid, shows the changes, in the heights of the other tube or angle, of the Inclined Tube Manometer. Measuring Accuracy : The accuracy of measuring the pressure in the Inclined Tube Manometer, is easier for the Reader or end user , as he only judging or measuring, the pressure gives on its reservoir area, filled with the suitable liquid, of the Inclined Tube Manometer, which cause the liquid or Water or Mercury , to reach its require height in its single or angle tube area , of the Inclined Tube Manometer. Features : Clear, 25 mm drilled and Reamed Unbreakable acrylic block. Precision machined reservoirs and indicating column insure high accuracy. Zeroing is easy, using the sliding milky white scale, inbuilt preset spirit level for accurate mounting.

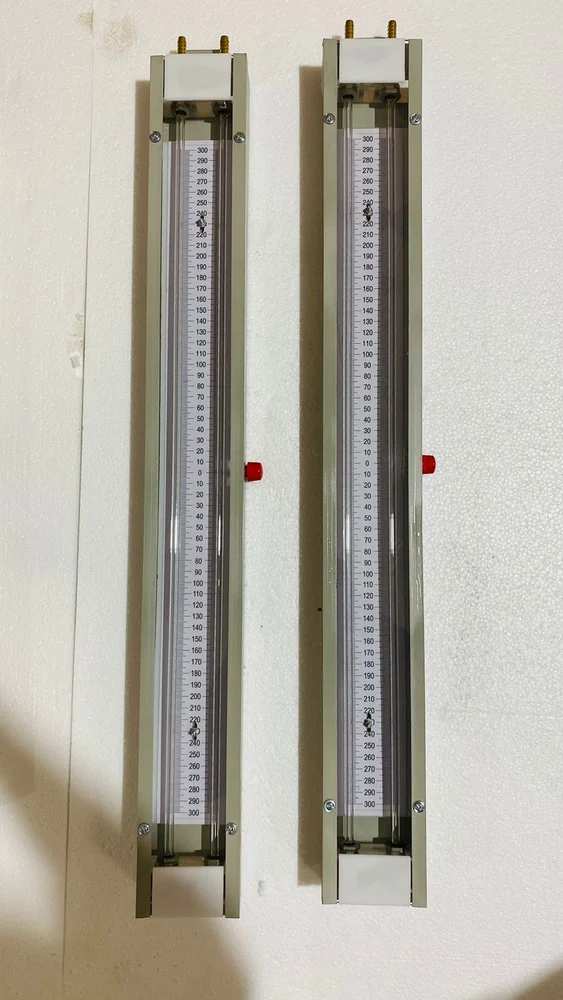

nrg global instruments make U – Tube , single limb , inclined tube Manometer is the basic and mostly used style of manometer. The U - Tube manometer is a versatile, economical instrument for the measurement of pressure, vacuums or differential pressures. Pressure measurements are accomplished by balancing a vertical head of indicating fluid with the pressure to be measured. As there is no cams, gears or levers to operate in the manometer, the readings obtained are always accurate. The U Tube Manometer, have “U” shaped tube, half filled with liquid (Water / Mercury / SP Gr. 0.81). When both the tubes are open, the liquid is at the same height in each leg (Tube / Limbs). When positive pressure is applied to one leg the liquid is forced down in that leg and up in the other. The difference in the height, which is the sum of the reading above and below zero, tells you the pressure. When vacuum is applied to one leg, the liquid rises in that leg and falls in the other. The difference in the height indicates the amount of vacuum. The U Tube Manometer, consisting of two Glass Limbs. Stainless Steel / Brass Connecting fittings mounted on a metallic frame, provided with White Acrylic Scale with zero at the center. The U Tube Liquid Column Manometer we provide is used to determine Velocity and Static Pressure, Leakage, Fan Efficiency and Gas Pressure. The Manometer will be protected with transparent acrylic front cover fix with Aluminum frame and external zero adjustment Knob / Drain Plug / Fill Plug will Be Provided

nrg make manometer is an instrument that has a small tube in the shape of a U that is filled with liquid to measure pressure or flow. A U-tube manometer is used as an indicator that the fan on the mitigation system is working. The first with the liquid levels in the U-tube equal on both sides, indicating that the fan on the mitigation system is not working properly. The other U-tube manometer the liquid levels on either side of the u- tube are different in height (h), indicating a pressure difference(P1,P2), which confirms that the system is working properly.

A pressure switch is a mechanical or electronic device that is activated when a certain threshold or setpoint is reached by the process fluid’s pressure. The pressure switch can differ depending on whether it consists of a bourdon tube, piston, diaphragm, or membrane that moves or deforms depending on the degree of pressure applied by the system. For example, an air pressure switch is used to maintain a constant pressure and can turn the compressor off once the tank reaches the required air pressure level. If the air pressure drops and more is required, the switch can also turn the compressor on.

Nrg make manometer

A flame arrester functions by absorbing the heat from a flame front thus dropping the burning gas/air mixture below its auto-ignition temperature; consequently, the flame cannot survive. The heat is absorbed through channels (passages) designed into an element.

“NRG GLOBAL” make Magnetic Level Gauge provides clear, high clarity indication of liquid level. Magnetic Level Gauges are principally designed as an alternative to glass level gauges. NRG GLOBAL offers Magnetic Level Gauges in top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic Level Gauge is consists of three major components: Float Chamber, Float and Indicator System. Magnetic Level Gauge operates on the principle of magnetic field coupling to provide Fluid Level Information. Float chamber is typically constructed with nonmagnetic pipe having process Connections that matches to the vessel connections. Float size and weight is determined by the process fluid, pressure, temperature and the specific gravity of the process fluid. Float contains magnets to provide 360 ̊magnetic flux field.

NRG GLOBAL INSTRUMENTS MAKE magnetically float operated Top Mounted Level Switch for controlling one or multi Levels by using reed Switch. The Unit Consists of Vertical Guide Pipe (Stem), Reed Switches Are located, Magnetic Float Sliding over the Stem according to the level in the tank. After passing the float, the reed relay will retain their output state. Various materials of construction are available depending up on Service Condition. Maximum 4 Set points can be given in a Single Level Switch & Maximum stem length will be 3 Meters. 2. Technical Data Float : S.S.316 / SS with PTFE / Poly Propylene Process Connection : Flanged / Screwed / TC Joint Flange : Mini 1” NB to Any Size in C.S. / S.S.304 / S.S.316 / SS with PTFE Coated / P.P. Switch : Hermetically Sealed Magnetically Operated Reed Switch with Rhodium Contact SPST / SPDT. Rating : 0.5 Amps @ 24 V DC OR 230 VAC 1 AMP Switch Housing : Die Cast Aluminum, Weather Proof IP 65 (Enclosure) / Flame Proof to II A, II B (IS – 2148 CMRS Dhanbad Approved) Operating Pressure : 10 Kg / Cm2 Operating Temp : Max. 90 C. Cable Entry : ½” NPT (F) OR ¾” ET (F) No of Switches : As Per Customer Requirement Stem Length : Up to 3 Meters.. other on your request Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING
