Magnetic Float Level Switch
Description

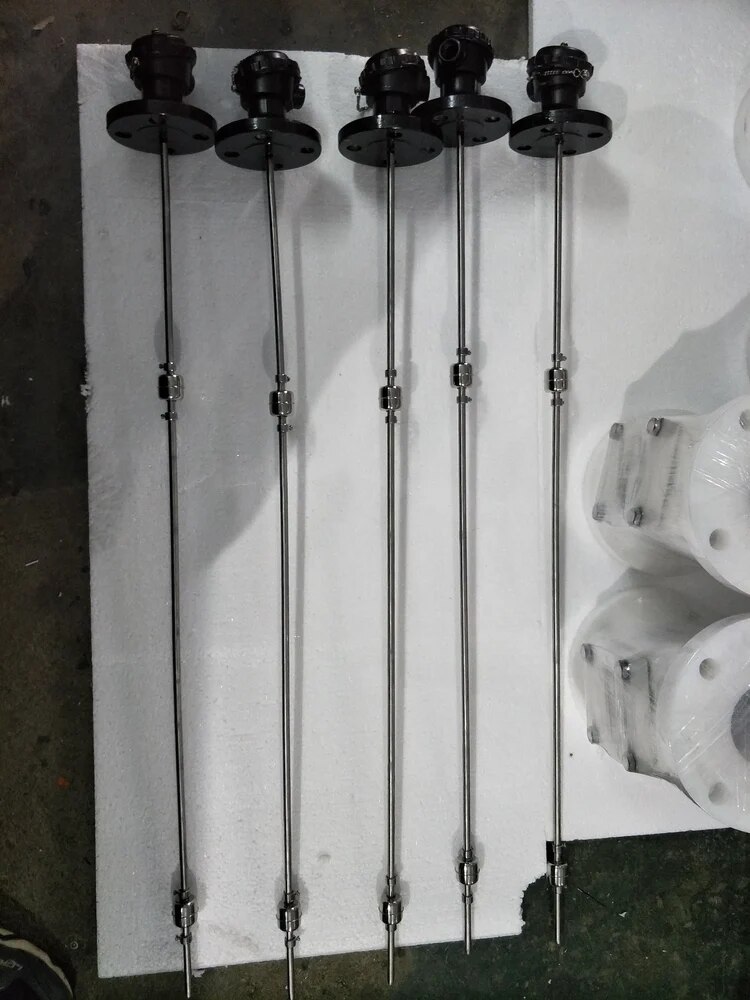

NRG GLOBAL INSTRUMENTS MAKE magnetically float operated Top Mounted Level Switch for controlling one or multi Levels by using reed Switch. The Unit Consists of Vertical Guide Pipe (Stem), Reed Switches Are located, Magnetic Float Sliding over the Stem according to the level in the tank.
After passing the float, the reed relay will retain their output state. Various materials of
construction are available depending up on Service Condition. Maximum 4 Set points can be given in a Single Level Switch & Maximum stem length will be 3 Meters.
2. Technical Data
Float : S.S.316 / SS with PTFE / Poly Propylene
Process Connection : Flanged / Screwed / TC Joint
Flange : Mini 1” NB to Any Size in C.S. / S.S.304 / S.S.316 / SS with PTFE
Coated / P.P.
Switch : Hermetically Sealed Magnetically Operated Reed Switch with
Rhodium Contact SPST / SPDT.
Rating : 0.5 Amps @ 24 V DC OR 230 VAC 1 AMP
Switch Housing : Die Cast Aluminum, Weather Proof IP 65 (Enclosure) /
Flame Proof to II A, II B (IS – 2148 CMRS Dhanbad Approved)
Operating Pressure : 10 Kg / Cm2
Operating Temp : Max. 90 C.
Cable Entry : ½” NPT (F) OR ¾” ET (F)
No of Switches : As Per Customer Requirement
Stem Length : Up to 3 Meters.. other on your request
Additional Information:
Production Capacity: 100
Delivery Time: WEEK
Packaging Details: EXPORT WORTHY PACKING
