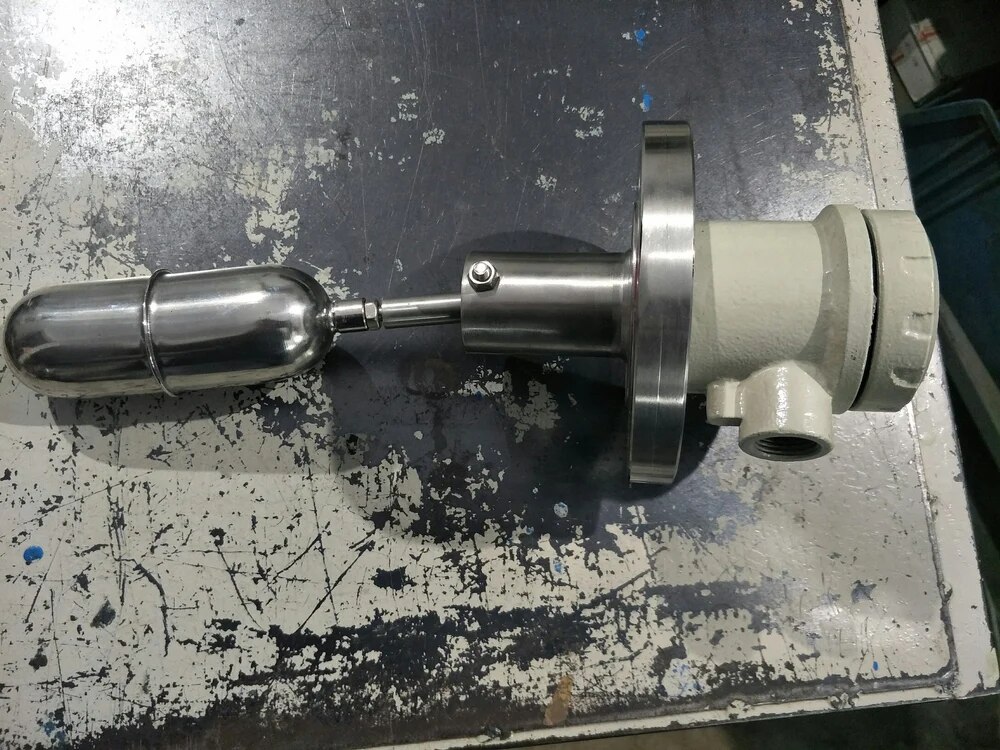

Magnetic Float Operated Level Switch

NRG GLOBAL MAKE side-mounted float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. It is used in water treatment, petrochemical, furnace, shipyard etc. It is widely applicable in the condition of high viscosity, high pressure, high temperature because of it is flexible structure, and it can replace the UQK series products.

Working principle

To use of liquid buoyancy principle. When the floating ball due to buoyancy and moving up and down, the magnetic reed switch in the junction box will be action when it is influence by the arm end magnetic. The same principle is used in the micro switch device. To use of magnets and magnet micro switch arm end of mutual exclusion movement to push the micro switch action.

Product purpose

SM series float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit.

Specification

Application : Liquids

Liquid Density : Above 0.5 – 2.0

Liquid Velocity : Upto 500 cp

Design Pressure : Upto 40 Kg/cm²

Design Temp : Upto 300°C

Connection : Flanged to ASA/BS/DIN Screwed BSP/Screwed NPT

Material : SS304/SS304L/SS316/SS316L/PP/HDPE/PVC/PVDF Lined/PTFE Lined Other Materials on request

Switch Type : Micro, SDPT, DPDT

Form : 1 NO+1NC / 2NO+2NC

Rating : 5 Amp, 230 VAC OR 24 VDC

Enclosure : W-Proof IP65 / Ex-Proof

Additional Information:

Production Capacity: 100

Delivery Time: WEEK

Packaging Details: EXPORT WORTHY PACKING
