NRG GLOBAL MAKE side-mounted float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. It is used in water treatment, petrochemical, furnace, shipyard etc. It is widely applicable in the condition of high viscosity, high pressure, high temperature because of it is flexible structure, and it can replace the UQK series products. Working principle To use of liquid buoyancy principle. When the floating ball due to buoyancy and moving up and down, the magnetic reed switch in the junction box will be action when it is influence by the arm end magnetic. The same principle is used in the micro switch device. To use of magnets and magnet micro switch arm end of mutual exclusion movement to push the micro switch action. Product purpose SM series float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. Specification Application : Liquids Liquid Density : Above 0.5 – 2.0 Liquid Velocity : Upto 500 cp Design Pressure : Upto 40 Kg/cm² Design Temp : Upto 300°C Connection : Flanged to ASA/BS/DIN Screwed BSP/Screwed NPT Material : SS304/SS304L/SS316/SS316L/PP/HDPE/PVC/PVDF Lined/PTFE Lined Other Materials on request Switch Type : Micro, SDPT, DPDT Form : 1 NO+1NC / 2NO+2NC Rating : 5 Amp, 230 VAC OR 24 VDC Enclosure : W-Proof IP65 / Ex-Proof Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : FULL VIEW Name of the Fluid : LIQUID Temperature : MAX 120 DEG C Pressure : 2-3 KG/CM2 MOC (WETTED PARTS) : SS316 L FLANGE Connection SIZE : SS316 L ASA PER ASA 150 # RF GLASS : BOROSILICATE QVF DESIGN GLASS TUBE Packing : 100% PTFE STUDS : SS304 FASTNERS : SS304 F/F HIEGHT : 300 MM

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : GLASS TUBE ROTAMETER Name of the Fluid : OIL Temperature : 40 Pressure : 3 KG/CM2 Specific Gravity / Density : 0.85 Viscosity : 1.0 CP M. RANGE : 0 – 5 LPM MOC (WETTEC PARTS) : SS 316 End Connection : SS 316 FLANGE END Process Connection : ½” ASA 150 # RF Float Material : SS316 Float Retainer : P.P Tube Material : GERMAN TAPER BOROSILICATE GLASS TUBE Packing/O-Ring Material : PTFE GLAND : CS BODY / COVER : MS POWDER COATED Scale : ACRYLIC ENGRAVED Scale Length : 50 – 250 mm Approx. Rangebility : 10:1 Scale Marking : In LPM Accuracy : ±2% F.S.D. Inlet Conn. Orientation : BOTTOM Outlet Conn. Orientation : TOP FASTNERS : S.S.304 F/F HIEGHT : 500 MM

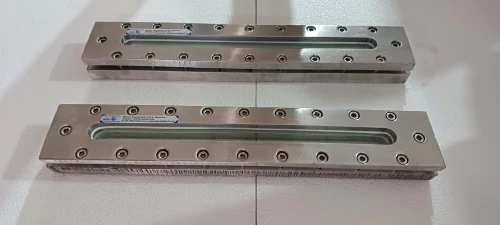

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : jackted DOUBLE WINDOW Name of the Fluid : LIQUID Temperature : 150 DEG C Pressure : 5-6 KG/CM2 MOC (WETTEC PARTS) : SS316 FABRICATED FROM SCH 10 PIPE End Connection : SS316 FLANGE END JACKET : S.S.316 BASE PLATE : SS316 COVER PLATE : SS316 GLASS : BOROSILICATE TOUGHENED GLASS HAVING 15 MM THICK Packing : PTFE FASTNERS : SS304 Process Connection : 150 NB ASA 150 # RF

NRG make SIDE MOUNTED MAGNETIC LEVEL INDIATOR HSN CODE : 90261020 MAKE : NRG GLOBAL MODEL NO : NRG/SMMLI/SS/25/CC TYPE : BIO COLOUR MAGNETIC ROLLER DEISGN MODEL : SIDE MOUNTED NAME OF THE FLUID : LIQUID STATE OF THE FLUID : LIQUID ONLY TEMPRATURE : 150 DEG C PRESSURE : 10 BAR SPECIFIC GRAVITY : 0.8 – 1.8 VISCOSITY ( OP / MAX) : 1 CP WETTED PARTS : SS316 MAIN CHAMBER : SS316 2” SCH 80 PIPE FLOAT : SS316 PROCESS CONNECTION : SS316 FLANGE END CONNECTION SIZE : 1” ASA 150 # RF TYPE OF INDICATOR : RED & WHITE COLOUR ROTATING ROLLER DESIGN GLASS TUBE : NA PACKING : 100% PTFE SCALE : SS316 ENGRAVED HAVING LC 5 MM LEAST COUNT : 5 MM INDICATOR HOUSING PROTECTION : ALUMINIUM POWDER COATED AIR VENT : ½” NPT STOP PLUG DRAIN : SS316 BLINED FLANGE WITH SS316 ½” BSP STOP PLUG PROTECTION : IP 65 MOUNTING ORIENTATION : SIDE – SIDE FASTNERS : SS304 HYD TEST : 10 KG/CM2

NRG MAKE TANK MOUNTED VIEW GLASS ASSEMBLY HSN CODE : 9026 TYPE : CIRCULAR SHAPE SERVICES : LIQUID OP PRESS : 10 BAR OP TEMP : 150 DEG C BASE PLATE : SS316 HAVING 18 MM THICK COVER PLATE : SS316 HAVING 12 MM THICK PACKING : 100% PTFE FASTNER : SS304 GLASS : SODA LIME TOUGHENED GLASS HAVING 12 MM THICK VISIBLE VIEW : 60 MM SIZE : 2” ASA 150 # RF

NRG GLOBAL MAKE Displacer type level switches offers the industrial user a wide choice of alarm and control configuration. DLS works on a simple buoyancy principle and is well suited for simple or complex applications, such as forming surging liquids or agitated fluids, and usually costs less than other types of level switches. CONSTRUCTION & OPERATION Operation is based on simple buoyancy principle. As the liquid level rises and progressively immerses the displacer elements, the effective weight suspended on the spring reduces and the consequent length of the spring change is used to provide magnet movement and operate the switch. The spring movement causes the magnetic sleeve to attract a pivoted magnet actuating a switch mechanism located outside the barrier tube. Built-in limit stops, prevent over stroking under level surge conditions. FEATURES: • Wide choice of switching functions • Suitable for large tanks up to 15 meters • Site adjustable switch points • Customized for high temp, high pressure & vaccum applications. • Reliable performance in turbulent liquids even without still pipes. • Easy transportation of longer length switches. • Enclosure : Weather proof-IP-65 Ex-proof-Gr. IIA & IIB or IIC GENERAL SPECIFICATIONS: Enclosure : Cast ALUMINIUM, Weather Proof-IP 65, Cast AL Ex-proof Gr. IIA & IIB or IIC Conduit Connection : ¾ ” ET or ½” NPT Measuring Range : 200 mm~15000 mm Operating Differential : 40±5 mm / Adjustable / 65 ±5 mm Switch Type : Micro switch Switch Contacts : 2 SPDT (2 NO + 2 NC) @ 5A, 230 VAC (Resistive) Switch Action : Bistable Terminals : To suit 1.5 mm2 conductor Flexible Rope : SS304, SS316, PP, PTFE Displacer : SS304, SS316, PP, PTFE Spring Housing : SS316, PP, PTFE Spring Material : SS316, SS316L Process Connection Flanged : MS, SS304, SS316, PP (SS clad), PTFE (SS clad) Perforated still well : MS, SS304, SS316, PP (65 NB) External Cage : MS, SS304, SS316, PP (80 NB) Max. Temperature : 0-200°C (without cooling fins) 0-300°C (with cooling fins) (Contact factory for temperature more than 300°C) Max. Test Pressure : Vaccum to 40 Kg/cm2 (Contact factory for pressure more than 40 Kg/cm2) Min. Sp. Gravity : 0.7 (Contact factory for Sp. Gr. less than 0.7)

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanksDirect IndicationThe Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’.Gauge ClassificationMeasuring Range : Up to 40 meters. For more than 40 meters please consult factory.Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12”Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalLeast Count : 10 MMMaximum Temperature : 80°C (PP) / 300°C (SS)Maximum Pressure : 10 KG/CM2Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring)Installation : Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid : 0.75 TO 2.0Connecting Pipe : Carbon Steel Powder CoatedLocal IndicationDirect : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS)Protection ConduitHorizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb : MS pipe 25NB x 195mm & 100mm longProcess Connections : 1” 150#Note : Custom made assemblies can be provided for specific applications Additional Information: Item Code: FBLISS09 Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

NRG GLOBAL INSTRUMENTS MAKE Tubular Level Gauge is used for visual liquid level indication and is the most commonly used instrument in the process industry. It is a simple and reliable device for level reading in atmospheric or pressurized tank applications. It is mounted parallel, along the side of the tank, so as to form a closed loop. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local level indication. The Tubular Level Gauge manufactured by NRG GLOBAL INSTRUMENTS incorporates correct design, rugged construction, proper manufacturing techniques and skilled workmanship to give dependable performance and long service life. Material integrity is assured through strict compliance of chemical composition analysis in a standard laboratory.TUBULAR LEVEL GAUGE FEATURES• Choice of Tie Rod or C-Frame Construction.• With or without isolating valve.• Material integrity assured through strict compliance of chemical composition analysis in a Standard Laboratory.• H Grade Borosilicate glass tube 19/25 mm outer dia with Teflon Packing.• Glass tube an be removed online i.e. without disconnection from vessel• Standard Connection: 1/2" / 3/4" / 1" Flange drilled to ASA 150#, others on request• Aluminum/SS scale with 5 mm resolution as standard and 1 mm on request.• Drain Plug 1/2" Vent Plug 3/4" as std and drain/vent valve as optional• Safety Ball check device(optional).• Hydro test pressure: 12 KG/cm2, 100 Deg C max working temperature.• Defrost/illuminator available on request.
