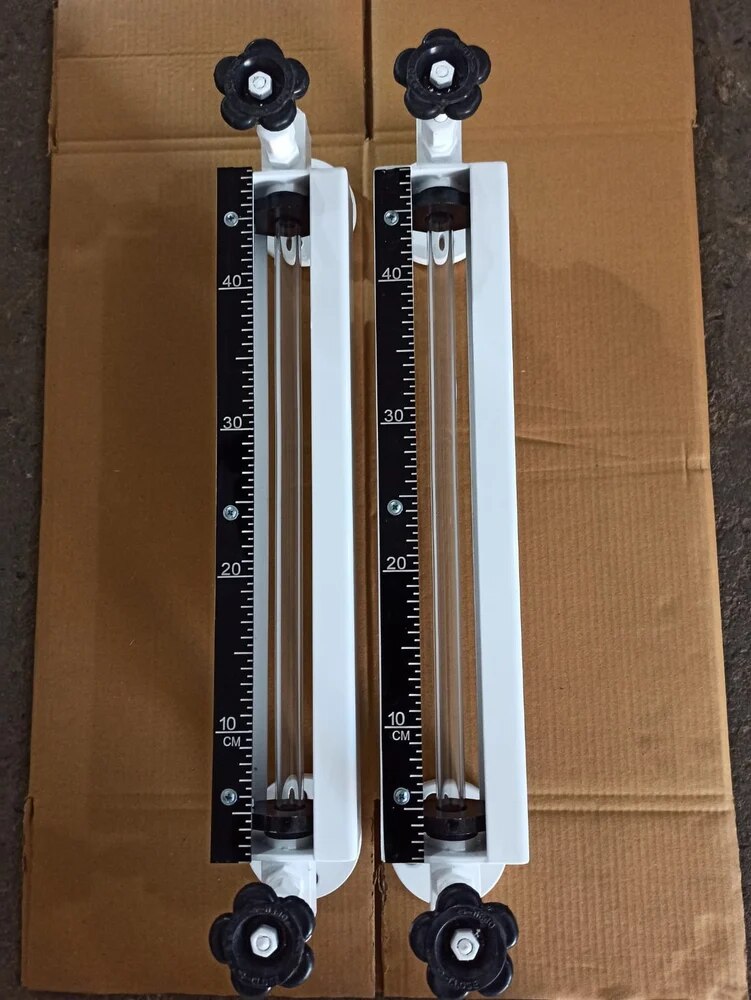

NRG GLOBAL INSTRUMENTS MAKE Tubular Level Gauge is used for visual liquid level indication and is the most commonly used instrument in the process industry. It is a simple and reliable device for level reading in atmospheric or pressurized tank applications. It is mounted parallel, along the side of the tank, so as to form a closed loop. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local level indication. The Tubular Level Gauge manufactured by NRG GLOBAL INSTRUMENTS incorporates correct design, rugged construction, proper manufacturing techniques and skilled workmanship to give dependable performance and long service life. Material integrity is assured through strict compliance of chemical composition analysis in a standard laboratory.TUBULAR LEVEL GAUGE FEATURES• Choice of Tie Rod or C-Frame Construction.• With or without isolating valve.• Material integrity assured through strict compliance of chemical composition analysis in a Standard Laboratory.• H Grade Borosilicate glass tube 19/25 mm outer dia with Teflon Packing.• Glass tube an be removed online i.e. without disconnection from vessel• Standard Connection: 1/2" / 3/4" / 1" Flange drilled to ASA 150#, others on request• Aluminum/SS scale with 5 mm resolution as standard and 1 mm on request.• Drain Plug 1/2" Vent Plug 3/4" as std and drain/vent valve as optional• Safety Ball check device(optional).• Hydro test pressure: 12 KG/cm2, 100 Deg C max working temperature.• Defrost/illuminator available on request.
