Float Level Indicator

Float & Board type level gauge is a weighing liquid level

measuring system applicable for non-pressurized storage

tanks/vessels. It is basically a balanced counter weight system

with an arrow shaped pointer which smoothen the indication

process. It is suitable for most liquid applications

whose specific gravity is  0.8. Additionally, it effectively

works in the phenomena of turbulence by ensuring stability

using guided rope assembly with an anchor.

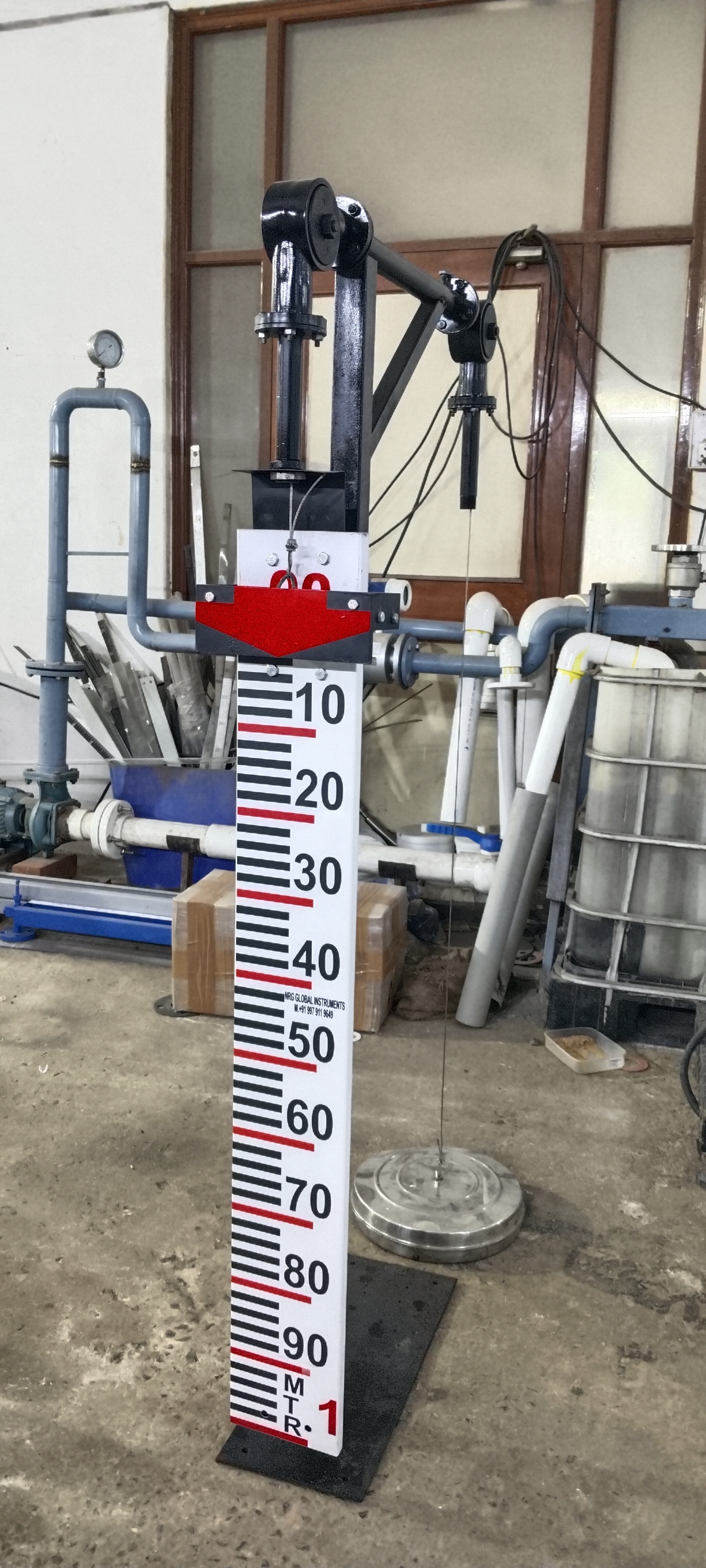

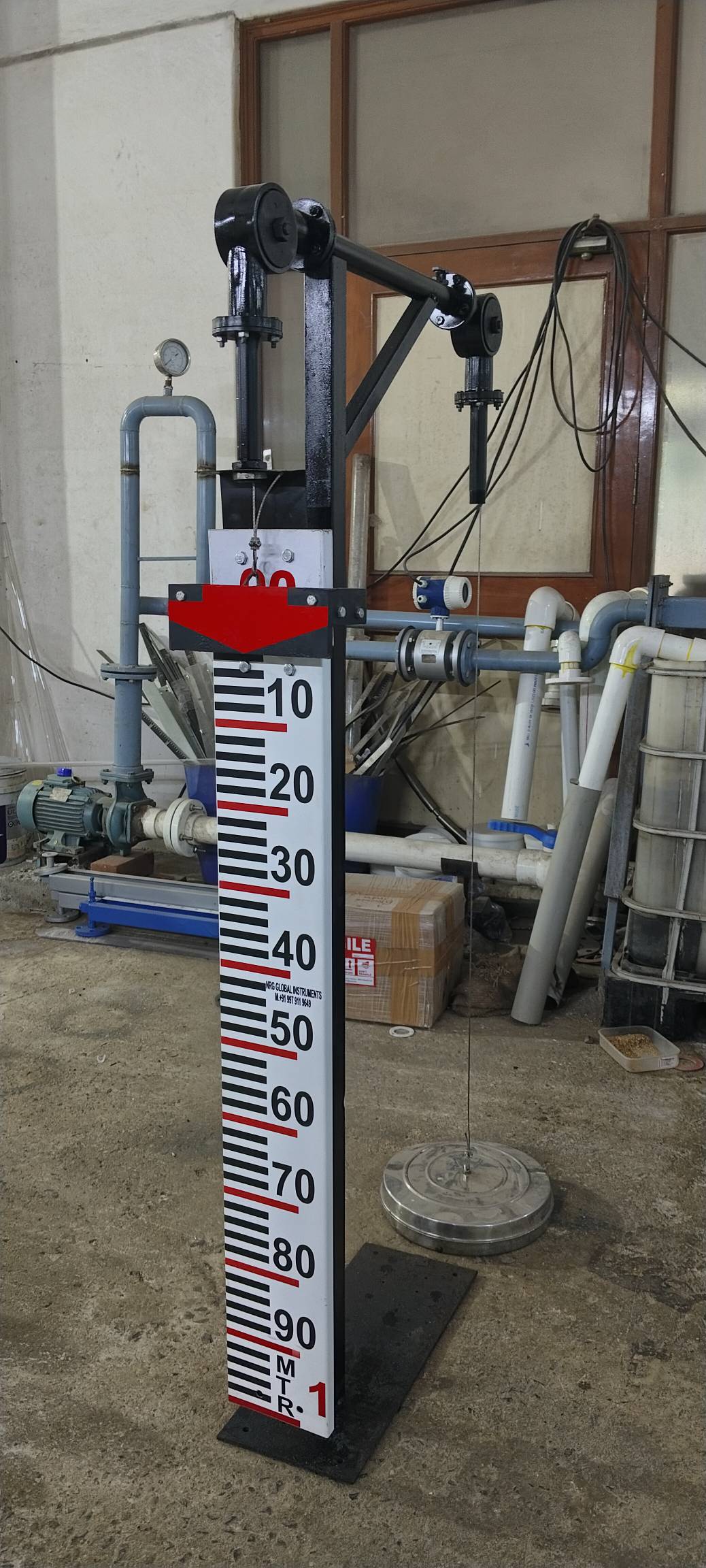

The working principle of Float & Board is based on the

buoyancy principle and is linked as per balanced counter

weight system. A float is connected to a pointer with the

help of wire rope via an array of pulley and limb pipes along

with a scale board. The pointer slides over a scale board

parallel to the tank in a vertical direction. When the material

level rises, the float moves upward with the application

media results in a pointer goes downward and vice versa.
