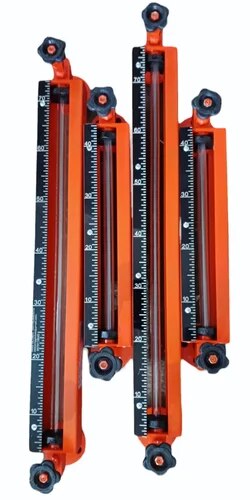

Name: Transparent Tubular Level Gauge
Availability: InStock

Transparent Tubular Level Gauge

Phone Number

08048032280

Please keep 0 before dialling the number.

Email Address salesnrgglobal@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 986/20/1, Diamond Park Gate No. 2, G.I.D.C Industrial Estate, GIDC, Makarpura, Vadodara-390010, Gujarat, India

Vadodara, India, 390010

Description

MAKE : NRG GLOBAL MODEL : TUBULAR SIDE MOUNTED TYPE : WITHOUT ISOLATION VALVE FLUID : LIQUID TEMPERATURE : 150O C SPECIFIC GRAVITY / DENSITY : 0.7-1.2 VISCOSITY (OP / MAX) : 1 Cp WETTED PARTS (MOC) : SS304 CONNECTION FLANGE : MS SLIP ON TYPE CASING / GLASS PROTECTION: MS “C” TYPE CHANNEL OF 1 MM THICK TUBE : BOROSILICATE TRANSPARENT GLASS TUBE of 19 MM OD SCALE : ACRYLIC1 ENGRAVED OF 25 MM WIDTH WITH LC 5MM PACKING : 100 % PTFE GLAND PUSHER : PTFE VALVE TYPE : NA VALVE BODY : NA VENT PLUG : ½” SS304 BSP-M Stop Plug DRAIN PLUG : ½” SS304 BSP-M Stop Plug ACCESSOIRES : NA HYD TEST : 7 Kg/cm2 to Vacuum FASTENERS : SS304
