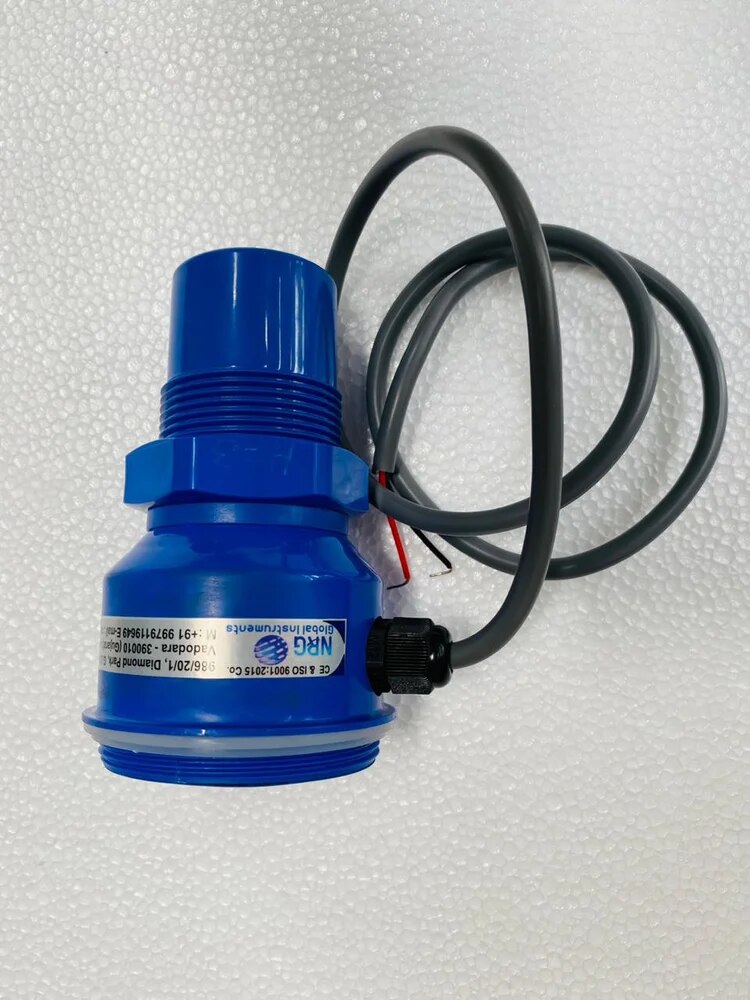

Non Contact Ultrasonic Level Transmitter

This is microprocessor based Ultrasonic level transmitter. It has Multifunction Instruments

It is capable of monitoring Virtually Any Short Or Medium Range of Non-Contact

Ultrasonic Level Measurements of Liquids, Solids Or Slurries. In this Instrument User

can take measurements of Roller Lift of mills, water level and select the range in the

range parameter and set Reverse action in Action parameter. It has One Analog Output

4-20mA and two digital control output (we can also define these two digital control

output as relay1and 2).

NOTE – To measure the level t of the tank ,the sensor has to be placed 22cm above the

level as it is defined as the dead zone of the sensor .

SPESCIFICATION

Measuring Range : 0-10 Meters

Main (auxiliary supply) : 24V DC

O/P (Analog) : 4-20mA

Digital (RL1&2) : +24v common

Display LCD : 16 x2

Display value : In CM And MM(Millimeter)

Revers Action : User can be take 4-20mA in revers action
