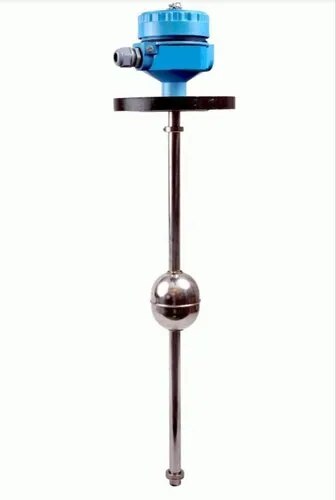

Float Level transmitter

NRG MAKE Float level transmitter provides continuous level measurement up to 2 m (6.5') with a 4 to 20 mA signal output, and is factory configured to your selected dimension. This stainless steel liquid level sensor is well suited for high temperature or pressure tank level applications with relatively clean liquids such as water, diluted chemicals and light weight oils. Typical application examples include boilers and process vessels.

Specifications

Range: 41 to 1222 cm (16 to 48")

Accuracy: 0.25% span in water

Configuration: None, fixed span

Orientation: ±20° from vertical

Specific Gravity: 0.55 min

Supply Voltage: 10 to 30 Vdc

Loop Resistance: 600 Ω @ 24 Vdc

Signal Output: 4 to 20 mA, two-wire

Process Temp: -40 to 85°C (-40 to 185°F)

Ambient Temp: -40 to 60°C (-40 to 140°F)

Pressure: 200 psi (13.8 bar)

Enclosure Rating: NEMA 4X (IP65)

Enclosure Material: PP

Conduit Entrance: Single, 1/2 NPT

Process Mount: 2 NPT

Guide-Float Material: 316 SS

Classification: General purpose

Additional Information:

Item Code: flt

Production Capacity: 50

Delivery Time: week

Packaging Details: Export worthy packing
