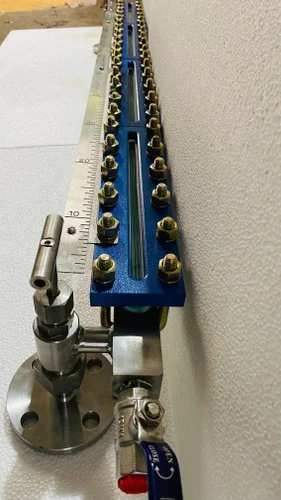

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanksDirect IndicationThe Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’.Gauge ClassificationMeasuring Range : Up to 40 meters. For more than 40 meters please consult factory.Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12”Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalLeast Count : 10 MMMaximum Temperature : 80°C (PP) / 300°C (SS)Maximum Pressure : 10 KG/CM2Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring)Installation : Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid : 0.75 TO 2.0Connecting Pipe : Carbon Steel Powder CoatedLocal IndicationDirect : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS)Protection ConduitHorizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb : MS pipe 25NB x 195mm & 100mm longProcess Connections : 1” 150#Note : Custom made assemblies can be provided for specific applications Additional Information: Item Code: FBLISS09 Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

“NRG’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanks Direct Indication The Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’. Gauge Classification Measuring Range : Up to 40 meters. For more than 40 meters please consult factory. Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12” Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numerical Least Count : 10 MM Maximum Temperature : 80°C (PP) / 150°C (SS) Maximum Pressure : 10 KG/CM2 Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring) Installation : Grounded Level Tank / Underground Tank (sump) / Overhead Tank Specific Gravity of Fluid : 0.75 TO 2.0 Connecting Pipe : Carbon Steel Powder Coated Local Indication Direct : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’. Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS) Protection Conduit Horizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable) Vertical Limb : MS pipe 25NB x 195mm & 100mm long Process Connections : 1” 150# Note : Custom made assemblies can be provided for specific applications Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanksDirect IndicationThe Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’.Gauge ClassificationMeasuring Range : Up to 40 meters. For more than 40 meters please consult factory.Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12”Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalLeast Count : 10 MMMaximum Temperature : 80°C (PP) / 300°C (SS)Maximum Pressure : 10 KG/CM2Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring)Installation : Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid : 0.75 TO 2.0Connecting Pipe : Carbon Steel Powder CoatedLocal IndicationDirect : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS)Protection ConduitHorizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb : MS pipe 25NB x 195mm & 100mm longProcess Connections : 1” 150#Note : Custom made assemblies can be provided for specific applications Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: CORRUGATED BOX

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanks Direct Indication The Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’. Gauge Classification Measuring Range : Up to 40 meters. For more than 40 meters please consult factory. Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12” Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numerical Least Count : 10 MM Maximum Temperature : 80°C (PP) / 300°C (SS) Maximum Pressure : 10 KG/CM2 Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring) Installation : Grounded Level Tank / Underground Tank (sump) / Overhead Tank Specific Gravity of Fluid : 0.75 TO 2.0 Connecting Pipe : Carbon Steel Powder Coated Local Indication Direct : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’. Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS) Protection Conduit Horizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable) Vertical Limb : MS pipe 25NB x 195mm & 100mm long Process Connections : 1” 150# Note : Custom made assemblies can be provided for specific applications

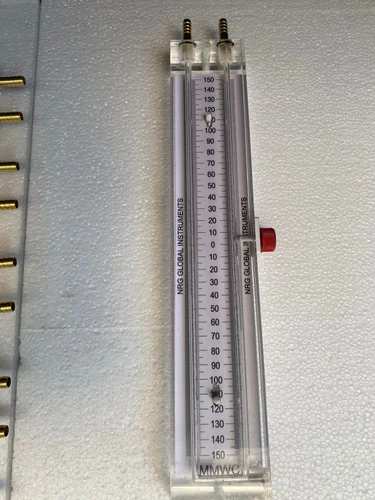

nrg global instruments make U – Tube , single limb , inclined tube Manometer is the basic and mostly used style of manometer. The U - Tube manometer is a versatile, economical instrument for the measurement of pressure, vacuums or differential pressures. Pressure measurements are accomplished by balancing a vertical head of indicating fluid with the pressure to be measured. As there is no cams, gears or levers to operate in the manometer, the readings obtained are always accurate. The U Tube Manometer, have “U” shaped tube, half filled with liquid (Water / Mercury / SP Gr. 0.81). When both the tubes are open, the liquid is at the same height in each leg (Tube / Limbs). When positive pressure is applied to one leg the liquid is forced down in that leg and up in the other. The difference in the height, which is the sum of the reading above and below zero, tells you the pressure. When vacuum is applied to one leg, the liquid rises in that leg and falls in the other. The difference in the height indicates the amount of vacuum. The U Tube Manometer, consisting of two Glass Limbs. Stainless Steel / Brass Connecting fittings mounted on a metallic frame, provided with White Acrylic Scale with zero at the center. The U Tube Liquid Column Manometer we provide is used to determine Velocity and Static Pressure, Leakage, Fan Efficiency and Gas Pressure. The Manometer will be protected with transparent acrylic front cover fix with Aluminum frame and external zero adjustment Knob / Drain Plug / Fill Plug will Be Provided

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanksDirect IndicationThe Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’.Gauge ClassificationMeasuring Range : Up to 40 meters. For more than 40 meters please consult factory.Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12”Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalLeast Count : 10 MMMaximum Temperature : 80°C (PP) / 300°C (SS)Maximum Pressure : 10 KG/CM2Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring)Installation : Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid : 0.75 TO 2.0Connecting Pipe : Carbon Steel Powder CoatedLocal IndicationDirect : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS)Protection ConduitHorizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb : MS pipe 25NB x 195mm & 100mm longProcess Connections : 1” 150#Note : Custom made assemblies can be provided for specific applications

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanksDirect IndicationThe Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’.Gauge ClassificationMeasuring Range : Up to 40 meters. For more than 40 meters please consult factory.Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12”Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalLeast Count : 10 MMMaximum Temperature : 80°C (PP) / 300°C (SS)Maximum Pressure : 10 KG/CM2Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring)Installation : Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid : 0.75 TO 2.0Connecting Pipe : Carbon Steel Powder CoatedLocal IndicationDirect : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS)Protection ConduitHorizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb : MS pipe 25NB x 195mm & 100mm longProcess Connections : 1” 150#Note : Custom made assemblies can be provided for specific applications

NRG GLOBAL INSTRUMENTS MAKE magnetically float operated Top Mounted Level Switch for controlling one or multi Levels by using reed Switch. The Unit Consists of Vertical Guide Pipe (Stem), Reed Switches Are located, Magnetic Float Sliding over the Stem according to the level in the tank. After passing the float, the reed relay will retain their output state. Various materials of construction are available depending up on Service Condition. Maximum 4 Set points can be given in a Single Level Switch & Maximum stem length will be 3 Meters. 2. Technical Data Float : S.S.316 / SS with PTFE / Poly Propylene Process Connection : Flanged / Screwed / TC Joint Flange : Mini 1” NB to Any Size in C.S. / S.S.304 / S.S.316 / SS with PTFE Coated / P.P. Switch : Hermetically Sealed Magnetically Operated Reed Switch with Rhodium Contact SPST / SPDT. Rating : 0.5 Amps @ 24 V DC OR 230 VAC 1 AMP Switch Housing : Die Cast Aluminum, Weather Proof IP 65 (Enclosure) / Flame Proof to II A, II B (IS – 2148 CMRS Dhanbad Approved) Operating Pressure : 10 Kg / Cm2 Operating Temp : Max. 90 C. Cable Entry : ½” NPT (F) OR ¾” ET (F) No of Switches : As Per Customer Requirement Stem Length : Up to 3 Meters.. other on your request Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

1. Product Description NRG GLOBAL Introduced magnetically float operated Top Mounted Level Switch for controlling one or multi Levels by using reed Switch. The Unit Consists of Vertical Guide Pipe (Stem), Reed Switches Are located, Magnetic Float Sliding over the Stem according to the level in the tank. After passing the float, the reed relay will retain their output state. Various materials of construction are available depending up on Service Condition. Maximum 4 Set points can be given in a Single Level Switch & Maximum stem length will be 3 Meters. 2. Technical Data Float : S.S.316 / SS with PTFE / Poly Propylene Process Connection : Flanged / Screwed / TC Joint Flange : Mini 1” NB to Any Size in C.S. / S.S.304 / S.S.316 / SS with PTFE Coated / P.P. Switch : Hermetically Sealed Magnetically Operated Reed Switch with Rhodium Contact SPST / SPDT. Rating : 0.5 Amps @ 24 V DC Switch Housing : Die Cast Aluminum, Weather Proof IP 65 (Enclosure) / Flame Proof to II A, II B (IS – 2148 CMRS Dhanbad Approved) Operating Pressure : 10 Kg / Cm2 Operating Temp : Max. 90 C. Cable Entry : ½” NPT (F) OR ¾” ET (F) No of Switches : As Per Customer Requirement Stem Length : Up to 3 Meters 3. Design features 1. One Moving Component Exists, so that no – wear of float. 2. Suitable for any fluid having Specific Gravity Above 0.7 3. Minimum possible Distance between 2 Level set Points is 75 mm. 4. Accuracy : ± 0.10%, ± 0.25 %, ± 0.5 % on F.S. 5. The switch operates on the principle of magnetic flux coupling with no mechanical connection so that fluid contamination of switch components cannot occur. 4. Ordering Information Information Required to Quote: Material of Construction, Service Medium, Specific Gravity, Max. Pressure & Temperature, Number of Actuating Levels & Their Distance from top of the Connection, Process Connection.
