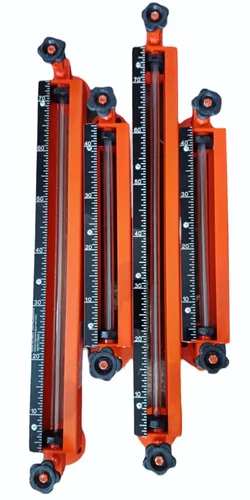

MAKE : NRG GLOBAL MODEL : TUBULAR SIDE MOUNTED TYPE : WITHOUT ISOLATION VALVE FLUID : LIQUID TEMPERATURE : 50O C SPECIFIC GRAVITY / DENSITY : 0.7-1.2 VISCOSITY (OP / MAX) : 1 Cp WETTED PARTS (MOC) : MS CONNECTION FLANGE : MS SLIP ON TYPE CASING / GLASS PROTECTION: MS “C” TYPE CHANNEL OF 1 MM THICK WITH POWDER COATED TUBE : BOROSILICATE TRANSPARENT GLASS TUBE of 25 MM OD SCALE : ACRYLIC ENGRAVED OF 25 MM WIDTH WITH LC 5MM PACKING : 100 % PTFE GLAND PUSHER : PTFE VALVE TYPE : NA VALVE BODY : NA VENT PLUG : ½” MS BSP Stop Plug DRAIN PLUG : ½” MS BSP Stop Plug ACCESSOIRES : NA HYD TEST : 7 Kg/cm2 to Vacuum FASTENERS : SS304

“NRG GLOBAL” is a manufacturer and supplier of acrylic body rotameters. Rotameters are flow meters that measure the flow rate of liquids or gases in a pipeline. They work by using a float that is suspended in a tapered tube, which rises or falls based on the flow rate of the fluid passing through the tube. Acrylic body rotameters are a type of rotameter that use an acrylic body instead of glass or metal. Acrylic is a transparent material that allows for easy visualization of the flow rate and makes the rotameter lightweight and easy to handle. NRG GLOBAL acrylic body rotameters are designed to provide accurate and reliable flow measurements for various industries, including chemical, pharmaceutical, water treatment, and food and beverage. These rotameters are available in various sizes and flow ranges, making them suitable for a wide range of applications. In addition to acrylic body rotameters, NRG GLOBAL also offers other types of flow meters, including glass tube rotameters, metal tube rotameters, and digital flow meters. They also offer customization options to meet specific customer requirements.

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : ACRYLIC BODY ROTAMETER Name of the Fluid : WATER Temperature : 40 DEG C Pressure : 2-3 KG/CM2 Specific Gravity / Density : 1.0 Viscosity : 1.0 CP M. RANGE : 0 – 10000 LPH MOC (WETTEC PARTS) : P.P End Connection : P.P FLANGE END Process Connection : 2” ASA 150 # RF Float Material : SS304 Float Retainer : P.P Tube Material : ACRYLIC Packing/O-Ring Material : NEOPREN RUBBER GLAND : NA BODY / COVER : SOLID TRANSPARENT ACRYLIC BLOCK Scale : DIRECT ENGRAVED ON BODY Scale Length : 50 – 250 mm Approx. Rangebility : 10:1 Scale Marking : In LPH Accuracy : ±2% F.S.D. Inlet Conn. Orientation : BOTTOM Outlet Conn. Orientation : TOP F/F HIEGHT : 500 MM

We are successfully ranked as the top manufacturer and supplier of Acrylic Body Rotameter. It is mainly used for water / salt water, air, nitrogen, hydrogen and natural gas. The acrylic body integral machined cut in acrylic body from imported transparent acrylic blocks sheets. The offered rota meter is accessible in different models, sizes and stipulation to meet the various requirements of the customers. In addition to this, our professionals are capable to modified this rota meter within the stipulation time frame and at affordable rates. The mentioned prices are approx price & it may vary as per your requirement because it requires customization in product.

NRG MAKE OIL LEVEL INDICATOR This 'L' shape oil level indicator are available in Brass, MS with chrome plating and transparent body This oil level indicators overcome all limitation of monitoring oil level within gearbox with dip stick/oil sight window. Transparent body indicators provides a clear on line indication of oil level in gear boxes. KNOBE Type: . Compressors, Gear Box, Pharma Machinery SPMS Available in 1/4" to 2" Sizes - Materials in Aluminum S.S Ms. L-Shape:- These are easy to install and dismantled and require no maintenance in addition to this Products are higher on performance and robust & durable in nature thread connection 1/8" to 1/2", Length up to 300 mm.

MAKE : NRG GLOBAL MODEL : TUBULAR SIDE MOUNTED TYPE : WITHOUT ISOLATION VALVE FLUID : LIQUID TEMPERATURE : 150O C SPECIFIC GRAVITY / DENSITY : 0.7-1.2 VISCOSITY (OP / MAX) : 1 Cp WETTED PARTS (MOC) : SS304 CONNECTION FLANGE : MS SLIP ON TYPE CASING / GLASS PROTECTION: MS “C” TYPE CHANNEL OF 1 MM THICK TUBE : BOROSILICATE TRANSPARENT GLASS TUBE of 19 MM OD SCALE : ACRYLIC1 ENGRAVED OF 25 MM WIDTH WITH LC 5MM PACKING : 100 % PTFE GLAND PUSHER : PTFE VALVE TYPE : NA VALVE BODY : NA VENT PLUG : ½” SS304 BSP-M Stop Plug DRAIN PLUG : ½” SS304 BSP-M Stop Plug ACCESSOIRES : NA HYD TEST : 7 Kg/cm2 to Vacuum FASTENERS : SS304

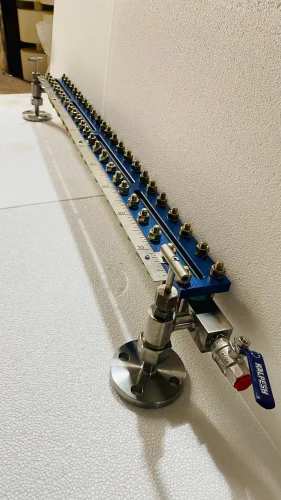

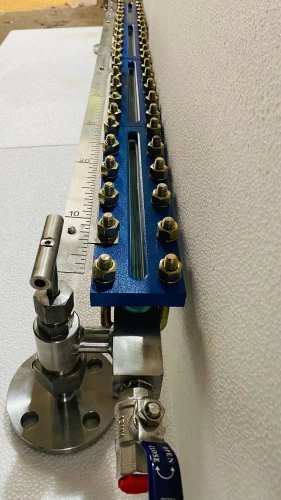

NRG GLOBAL MAKE Reflex Level Gauge use the R-form sight glasses. One side surface of Reflex Glass to use flat glass has several grooves for reflecting prism. The principle of the Reflex Glass is based on the difference in the refractive indices of liquid and gas or in particular of water and steam. Liquid level shows conspicuously dark hard colour for liquid space and light white colour for empty space. These Reflex series are not used with a mica shield. Reflex Level Gauge The Reflex Gauge is assembled firmly with gasket, reflex glass, cushion gasket and gauge cover on the body by Ubolts. Reflex Liquid Level Gauges, designed and built for a wide range of high temperature and high pressure applications. Transparent level gauge may use such as for diesel+water level, process drain+water, etc. In general, a transparent level gauge shall be used as the default choice. This is because a transparent level gauge can do what reflex level gauge does but not vice versa. The transparent level gauge is best used in the interface liquid application and also liquid which are not colorless.

NRG GLOBAL MAKE Reflex Level Gauge use the R-form sight glasses. One side surface of Reflex Glass to use flat glass has several grooves for reflecting prism. The principle of the Reflex Glass is based on the difference in the refractive indices of liquid and gas or in particular of water and steam. Liquid level shows conspicuously dark hard colour for liquid space and light white colour for empty space. These Reflex series are not used with a mica shield. Reflex Level Gauge The Reflex Gauge is assembled firmly with gasket, reflex glass, cushion gasket and gauge cover on the body by Ubolts. Reflex Liquid Level Gauges, designed and built for a wide range of high temperature and high pressure applications. Transparent level gauge may use such as for diesel+water level, process drain+water, etc. In general, a transparent level gauge shall be used as the default choice. This is because a transparent level gauge can do what reflex level gauge does but not vice versa. The transparent level gauge is best used in the interface liquid application and also liquid which are not colorless.

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : GLASS TUBE ROTAMETER Name of the Fluid : LDO Temperature : 40 - 55 Deg C Pressure : 8 BAR Specific Gravity / Density : 0.267 Viscosity : PL SPECIFY M. RANGE : 0-150 Lit/Hr MOC (WETTEC PARTS) : SS 304 End Connection : SS 304 FLANGED END Process Connection : 1/2” ASA 150 # RF Float Material : SS 304 Float Retainer : PP Tube Material : GERMAN TAPER BOROSILICATE GLASS TUBE Packing/O-Ring Material : PTFE GLAND : CS BODY / COVER : MS POWDER COATED Scale : ACRYLIC ENGRAVED Scale Length : 50 – 150 mm Approx. Rangebility : 10:1 Scale Marking : In LPH Accuracy : ±2% F.S.D. Inlet Conn. Orientation : BOTTOM Outlet Conn. Orientation : TOP FASTNERS : S.S.304 F/F HIEGHT : 500 MM
