'pvc chips'

PRINCIPALA SMALL ELECTRIC MOTOR DRIVES THE PADDLE, WHICH ROTATES FREELY IN THE ABSENCE OF MATERIAL. IMPEDED BY MATERIAL THE MOTOR WILL BE TURNED WITHIN THE HOUSING WHILE LOADING A SPRING AND TRIGGERING TWO SWITCHES. ONE OF THEM IS A DRY ELECTRIC CONTACT FOR CONTROL AND ALARM FUNCTIONS WHILE THE OTHER CUTS THE POWER TO THE MOTOR. WHEN THE MATERIAL LEVEL DROPS, THE LOADED STRETCHED TENSION SPRING RETURNS THE MOTOR TO ITS ORIGINAL POSITION AND THE UNIT IS REACTIVATEDFEATURES• SPECIAL CLUTCH DESIGN(NON MAGNETIC)• FLEXIBLE COUPLING (OPTIONAL AS PER APPLICATION)• ROBUST, DUST AND WATERTIGHT HOUSING• EXTENDED PROBE POSSIBLE.• SEALED BEARINGS• INTERCHANGEABLE PADDLE ASSEMBLIES• 1 SPDT ( MICROSWITCH )APPLICATIONS• DRY SAND & FLY ASH• PET / PVC CHIPS WITH UNDER WATER DETECTION• RICE, WHEAT, OTHER FOOD GRAIN, FLOUR• IRON ORE, SINTERS AND PULVERIZED COAL• MILK POWDER Additional Information: Production Capacity: 100 Delivery Time: ex stock Packaging Details: export worthy packing

PRINCIPALA SMALL ELECTRIC MOTOR DRIVES THE PADDLE, WHICH ROTATES FREELY IN THE ABSENCE OF MATERIAL. IMPEDED BY MATERIAL THE MOTOR WILL BE TURNED WITHIN THE HOUSING WHILE LOADING A SPRING AND TRIGGERING TWO SWITCHES. ONE OF THEM IS A DRY ELECTRIC CONTACT FOR CONTROL AND ALARM FUNCTIONS WHILE THE OTHER CUTS THE POWER TO THE MOTOR. WHEN THE MATERIAL LEVEL DROPS, THE LOADED STRETCHED TENSION SPRING RETURNS THE MOTOR TO ITS ORIGINAL POSITION AND THE UNIT IS REACTIVATEDFEATURES• SPECIAL CLUTCH DESIGN(NON MAGNETIC)• FLEXIBLE COUPLING (OPTIONAL AS PER APPLICATION)• ROBUST, DUST AND WATERTIGHT HOUSING• EXTENDED PROBE POSSIBLE.• SEALED BEARINGS• INTERCHANGEABLE PADDLE ASSEMBLIES• 1 SPDT ( MICROSWITCH )APPLICATIONS• DRY SAND & FLY ASH• PET / PVC CHIPS WITH UNDER WATER DETECTION• RICE, WHEAT, OTHER FOOD GRAIN, FLOUR• IRON ORE, SINTERS AND PULVERIZED COAL• MILK POWDER Additional Information: Production Capacity: 100 Delivery Time: ex stock Packaging Details: export worthy packing

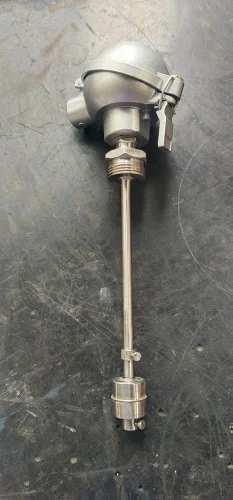

NRG GLOBAL MAKE side-mounted float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. It is used in water treatment, petrochemical, furnace, shipyard etc. It is widely applicable in the condition of high viscosity, high pressure, high temperature because of it is flexible structure, and it can replace the UQK series products. Working principle To use of liquid buoyancy principle. When the floating ball due to buoyancy and moving up and down, the magnetic reed switch in the junction box will be action when it is influence by the arm end magnetic. The same principle is used in the micro switch device. To use of magnets and magnet micro switch arm end of mutual exclusion movement to push the micro switch action. Product purpose SM series float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. Specification Application : Liquids Liquid Density : Above 0.5 – 2.0 Liquid Velocity : Upto 500 cp Design Pressure : Upto 40 Kg/cm² Design Temp : Upto 300°C Connection : Flanged to ASA/BS/DIN Screwed BSP/Screwed NPT Material : SS304/SS304L/SS316/SS316L/PP/HDPE/PVC/PVDF Lined/PTFE Lined Other Materials on request Switch Type : Micro, SDPT, DPDT Form : 1 NO+1NC / 2NO+2NC Rating : 5 Amp, 230 VAC OR 24 VDC Enclosure : W-Proof IP65 / Ex-Proof Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

General Specifications:  RTD Pt100 DIN Standard Element  Temperature ranges from -190 to +260ºC  Sheath Material 316SS  Sheath Diameters from 3.3 mm to 6.4 mm  Various Lead Insulation Materials (PVC, Teflon, Silicone Rubber)  Various RTD transmitters are also available to suit your particular application RTD Pt100 DIN standard element  Temperature range from -190 to +260ºC  Sheath materials 304SS and 316SS  Various terminal heads, (Bakelite, Aluminium, Stainless Steel, Polypropylene)  Optional head-mount transmitter

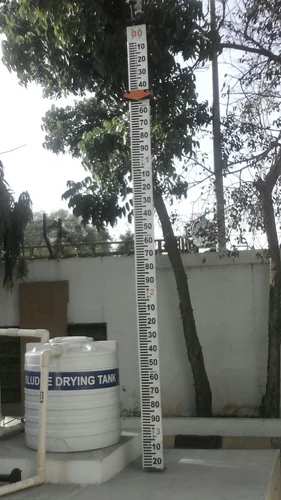

NRG GLOBAL” MAKE FLOAT & BOARD LEVEL INDICATOR MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : FLOAT & BOARD FLUID : WATER TEMPERATURE : 50O C PRESSURE : 2-3 Kg/Cm2 SPECIFIC GRAVITY / DENSITY : 0.8 -2.0 KG/M3 VISCOSITY (OP / MAX) : 0.7 – 20 Cp MOC OF THE TANK : RCC/ MS / SS CONNECTION FLANGE : MS SLIP ON TYPE FLANGE SIZE : 1” NB ASA 150 # RF SCALE : ALLUMINIUM POWDER COATED HAVING SCREEN PRINTED AND 150 MM WIDTH AND 1 MTR LONG WITH WHITE BACKGROUND AND BLACK MARKING WITH PVC LAMINATED ZERO PLATE : ALUMINIUM POWDER COATED LEAST COUNT : 10 MM INDICATION IN : CM FLOAT : SS 304 HAVING 12” DIA FLOAT WIRE & GUIDE WIRE : SS 304 HAVING 2.5 MM DIA MULTITHRED PULLEY & PIN : SS 304 PULLEY HOUSING : ALLUMINIUM DIE CAST WETAHER PROOF “T” BRACKET FOR SCALE JOINT : MS “T” TYPE AT EVERY METER POWDER COATED TOP BRACKET : MS “L” TYPE POWDER COATED CHECKNUT AND CHECKNUT PIPE: MS CENTER CONNECTING PIPE : MS TELESCOPIC PIPE HAVING ADJUSTABLE UP TO 700 MM LONG AIRROW (INDICATOR) : MS POWDER COATED WITH PP ROLLER WITH RED REDIUM MARKING FASTENER : GI PLATED

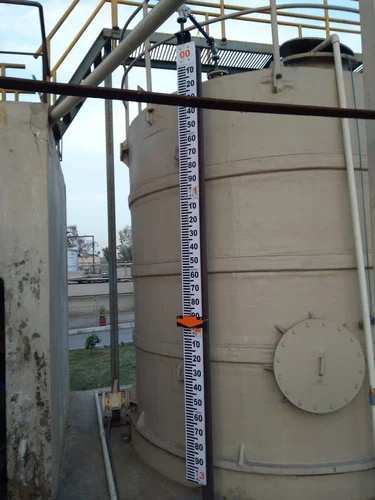

NRG GLOBAL” MAKE FLOAT & BOARD LEVEL INDICATOR MAKE : NRG GLOBAL TYPE : FLOAT & BOARD FLUID : LIQUID TEMPERATURE : 50O C PRESSURE : VACCUME TO 10 Kg/Cm2 SPECIFIC GRAVITY / DENSITY : 0.7-2.0 VISCOSITY (OP / MAX) : 1-20 Cp MOC OF THE TANK : MS./SS/HDPE/FRP CONNECTION FLANGE : PP SLIP ON TYPE FLANGE SIZE : 1” ASA 150 # RF SCALE : FRP HAVING SCREEN PRINTED AND 150 MM WIDTH AND 1 MTR LONG WITH WHITE BACKGROUND AND BLACK MARKING WITH PVC LAMINATED ZERO PLATE : ALUMINIUM POWDER COATED LEAST COUNT : 10 MM INDICATION IN : CM FLOAT : PP HAVING 10” DIA FLOAT WIRE : PP HAVING 6 MM DIA MULTITHRED PULLEY & PIN : PP PULLEY HOUSING : PP DIE CAST DUST PROOF “T”BRACKET FOR SCALE JOINT : MS “T” TYPE AT EVERY METER POWDER COATED TOP BRACKET : M.S. “ L” TYPE POWDER COATED CHECKNUT AND CHECKNUT PIPE: PVC CENTER CONNECTING PIPE : PVC TELESCOPIC PIPE HAVING ADJUSTABLE UP TO 700 MM LONG AIRROW (INDICATOR) : M.S. POWDER COATED WITH PP ROLLER WITH RED REDIUM MARKING ANCHOR PLATE : NA ANCHOR HOUSING : NA ANCHOR SPRING : NA FASTENER : SS 316L HIGHT TO BE MEASURE : 3.55 MTRS.

“NRG GLOBAL” MAKE FLOAT & BOARD LEVEL INDICATOR MAKE : NRG GLOBAL TYPE : FLOAT & BOARD FLUID : LIQUID TEMPERATURE : 50O C PRESSURE : VACCUME TO 10 Kg/Cm2 SPECIFIC GRAVITY / DENSITY : 0.7-2.0 VISCOSITY (OP / MAX) : 1-20 Cp MOC OF THE TANK : MS./SS/HDPE/FRP CONNECTION FLANGE : PP SLIP ON TYPE FLANGE SIZE : 1” ASA 150 # RF SCALE : FRP HAVING SCREEN PRINTED AND 150 MM WIDTH AND 1 MTR LONG WITH WHITE BACKGROUND AND BLACK MARKING WITH PVC LAMINATED ZERO PLATE : ALUMINIUM POWDER COATED LEAST COUNT : 10 MM INDICATION IN : CM FLOAT : PP HAVING 10” DIA FLOAT WIRE : PP HAVING 6 MM DIA MULTITHRED PULLEY & PIN : PP PULLEY HOUSING : PP DIE CAST DUST PROOF “T”BRACKET FOR SCALE JOINT : MS “T” TYPE AT EVERY METER POWDER COATED TOP BRACKET : M.S. “ L” TYPE POWDER COATED CHECKNUT AND CHECKNUT PIPE: PVC CENTER CONNECTING PIPE : PVC TELESCOPIC PIPE HAVING ADJUSTABLE UP TO 700 MM LONG AIRROW (INDICATOR) : M.S. POWDER COATED WITH PP ROLLER WITH RED REDIUM MARKING ANCHOR PLATE : NA ANCHOR HOUSING : NA ANCHOR SPRING : NA FASTENER : SS 316L
