'lubricating oil levels'

NRG GLOBAL we are engaged in manufacturing and supplying a wide range of Constant Oil Level Indicator. These are widely used in the gear box to see the lubricating oil levels in the concerned equipment. We use fine quality material and latest technology in compliance with the international quality standards. Additionally, these are available in market at economical prices. Features: moc: Alluminium /carbon steel/satin less steel (ss 304/316). conn : 1/4' bsp (m)

Oil level sensors work the same way that traditional float switches work, except for they work with oil instead of water. Oil level sensors use magnetic reed switches, that are hermitically sealed in a stainless steel or plastic stem, to measure oil levels and automatically turn on or off oil pumps. The reed switch moves up and down the stem to open or break circuits (turn on or off oil pumps) according to oil levels rising and falling. Once the oil in the tank reaches its lowest predetermined point (closed position) the reed switch will create a circuit and automatically send a signal to your pump to start filling your tank up with oil again. The magnetic reed switch will then open the circuit back up again (open position) once the oil level has reached maximum fill capacity. Additional Information: Production Capacity: 100 Delivery Time: week Packaging Details: export worthy

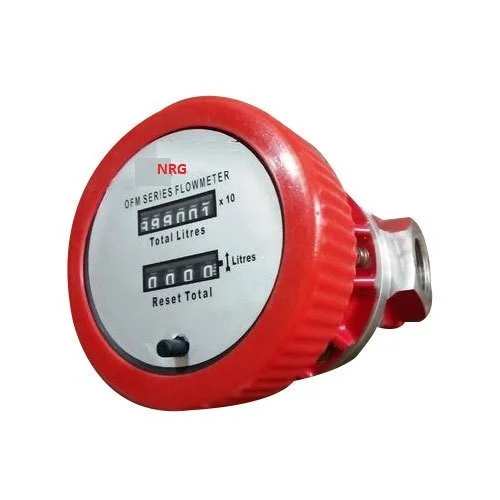

NRG GLOBAL Pioneers in the industry, we offer diesel fuel flow measurement instruments, light and heavy fuel oil flow meter, digital diesel flow meter, fuel flow meter instrument, automatic fuel flow meter and petrol and mto fuel meter from India. Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: CORUGATED BOX

NRG MAKE FLOAT & BOARD LEVEL GAUGE Mainly Use for Storage tank of Oil, F.D. Fire/Dm Water Tank. Lube Oil. HCL Acid Alka;ic, etc., Vapour seal for Special application like HCL,N2. Pirged Tank. Diluted alkalis etc.... Suitable for Tail & Large Tank non pressirized and non hazardous chemical Storage Tank. A large Self contered Float follows the Liquid Level in this gauge. A rope Fitted with a float moves over a pair of dust free puliey. Level is Indicated by a Pointer moves on a 150 mm Width Aluminium Powder Coated Scale. H eight 1 mtr to 2 5 mtr and Other on request Available in Polypropylene Additional Information: Item Code: 9026 Production Capacity: 1000 Delivery Time: 1 WEEK Packaging Details: EXPORTWERTHY PACKING

NRG MAKE OIL LEVEL INDICATOR This 'L' shape oil level indicator are available in Brass, MS with chrome plating and transparent body This oil level indicators overcome all limitation of monitoring oil level within gearbox with dip stick/oil sight window. Transparent body indicators provides a clear on line indication of oil level in gear boxes. KNOBE Type: . Compressors, Gear Box, Pharma Machinery SPMS Available in 1/4" to 2" Sizes - Materials in Aluminum S.S Ms. L-Shape:- These are easy to install and dismantled and require no maintenance in addition to this Products are higher on performance and robust & durable in nature thread connection 1/8" to 1/2", Length up to 300 mm.

Nrg make L shape oil level indicator

NRG GLOBAL INSTRUMENTS MAKE Tubular Level Gauge is used for visual liquid level indication and is the most commonly used instrument in the process industry. It is a simple and reliable device for level reading in atmospheric or pressurized tank applications. It is mounted parallel, along the side of the tank, so as to form a closed loop. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local level indication. The Tubular Level Gauge manufactured by NRG GLOBAL INSTRUMENTS incorporates correct design, rugged construction, proper manufacturing techniques and skilled workmanship to give dependable performance and long service life. Material integrity is assured through strict compliance of chemical composition analysis in a standard laboratory.TUBULAR LEVEL GAUGE FEATURES• Choice of Tie Rod or C-Frame Construction.• With or without isolating valve.• Material integrity assured through strict compliance of chemical composition analysis in a Standard Laboratory.• H Grade Borosilicate glass tube 19/25 mm outer dia with Teflon Packing.• Glass tube an be removed online i.e. without disconnection from vessel• Standard Connection: 1/2" / 3/4" / 1" Flange drilled to ASA 150#, others on request• Aluminum/SS scale with 5 mm resolution as standard and 1 mm on request.• Drain Plug 1/2" Vent Plug 3/4" as std and drain/vent valve as optional• Safety Ball check device(optional).• Hydro test pressure: 12 KG/cm2, 100 Deg C max working temperature.• Defrost/illuminator available on request.• Tie Rod Construction is ‘light' and permits 360ºC visibility.• C-Frame construction is robust and permits observation from Front & Rear.• Both constructions are available in integral or inline arrangements.• High quality, H grade borosilicate glass tube in 19/25mm outer dia is used.• Available in single length having c/c distance = 1600 mm. Extended lengths are provided by coupling several tubes or gauge assemblies in series• Gland packing design provides tension free tube installation to achieve zero leakage. It also enables glass removal for replacement or cleaning without dismantling the gauge or disconnection from the vessel.• Transparent Acrylic Plate mounted on C-Frame/Acrylic Pipe or slotted metallic pipe clamped on Tie Rod as glass protector can be provided if required, for additional safety to glass & personnel.ApplicationsChemical IndustryPetrochemical industryRefineriesPharmaceutical industryPressure vesselsStorage tanksMarine industryWater & Medium StorageProcess TanksHydraulicFiltrationChemical Dosing SystemsWater TreatmentBoiler Drum LevelShips / Bulk Carriers, etc.AdvantagesSimple and rugged constructionEasy mounting Low maintenanceDirect visible level indicationEconomical measurement solutionAssured level indication without power supplySafety auto shut off ball check valve for accidental breakage of glass tubeProtective guard rods or ‘C’ framePermit viewing from any directionAvailable with level indicator for general applicationsEnd connection screwed/flanged as per requirements of the customersConstruction

NRG GLOBAL INSTRUMENTS MAKE magnetically float operated Top Mounted Level Switch for controlling one or multi Levels by using reed Switch. The Unit Consists of Vertical Guide Pipe (Stem), Reed Switches Are located, Magnetic Float Sliding over the Stem according to the level in the tank. After passing the float, the reed relay will retain their output state. Various materials of construction are available depending up on Service Condition. Maximum 4 Set points can be given in a Single Level Switch & Maximum stem length will be 3 Meters. 2. Technical Data Float : S.S.316 / SS with PTFE / Poly Propylene Process Connection : Flanged / Screwed / TC Joint Flange : Mini 1” NB to Any Size in C.S. / S.S.304 / S.S.316 / SS with PTFE Coated / P.P. Switch : Hermetically Sealed Magnetically Operated Reed Switch with Rhodium Contact SPST / SPDT. Rating : 0.5 Amps @ 24 V DC OR 230 VAC 1 AMP Switch Housing : Die Cast Aluminum, Weather Proof IP 65 (Enclosure) / Flame Proof to II A, II B (IS – 2148 CMRS Dhanbad Approved) Operating Pressure : 10 Kg / Cm2 Operating Temp : Max. 90 C. Cable Entry : ½” NPT (F) OR ¾” ET (F) No of Switches : As Per Customer Requirement Stem Length : Up to 3 Meters.. other on your request Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

Conductivity Level Switch is a simple, low cost, point level measurement switch designed for level detection of conductive liquids having low densities, high viscosities, containing solid particles and to detect interface between non-conductive and conductive liquids. The probes work through the variation of the electrical resistance between the reference electrode and the level-control electrode. Conductivity level switches detect the level resistance when their electrodes are covered by the medium. If the tank is made of plastic, concrete, or any other nonconductive material, an additional electrode is required as a reference Conductivity Level Switches are available with stainless steel 316 electrodes as standard Suitable for many chemicals and aggressive media which are conductive in nature and dirty liquids, liquids with high solid content Construction available with both Solid probes & Suspended probes to suit fitting requirement It is a simple, low cost, point level controller designed for detecton of conductive liquids, having low densites, high viscosities, containing solid particles and interface between nonconductive and conductive liquids. CONSTRUCTION & OPERATION It comprises of a probe, wired to a level controller. The probe holds one common reference/common electrode and one or multiple “Control Electrodes” depending upon the number of levels to be controlled. All the electrodes are suitably insulated to avoid electrical bridging. The lengths of “Control Electrodes” correspond to the height of preset level points to be controlled and the length of the “reference/common Electrode” is kept slightly longer than the longest “Control Electrode”. If tank is conductive, it can be used as a reference/common electrode. Then number of control electrodes equals number of preset levels. Level controller houses sensing electronics consisting of power supply and signal conditoning circuit which provide a “Low AC Voltage” across mass and control electrodes. On liquid reaching preset level point electrical circuit gets completed - generating a signal which is amplified to actuate a relay, those potential free contacts are available for subsequent operations. On “Level Falling” the circuit breaks, deactivating the relay Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PAKING
