We are known as the leading manufacturer, importer, exporter and supplier of a comprehensive assortment of Liquid Level Switches. Used for used for Pump protection & Cooling Circuit protection, made up by utilizing top quality of basic material under the observation of the proficient team of workers, these Flow switches are manufactured at our highly developed Additional Information: Production Capacity: 100 Delivery Time: EX STOK Packaging Details: EXPORT WORTHY PAKING

Conductivity Level Switch is a simple, low cost, point level measurement switch designed for level detection of conductive liquids having low densities, high viscosities, containing solid particles and to detect interface between non-conductive and conductive liquids. The probes work through the variation of the electrical resistance between the reference electrode and the level-control electrode. Conductivity level switches detect the level resistance when their electrodes are covered by the medium. If the tank is made of plastic, concrete, or any other nonconductive material, an additional electrode is required as a reference Conductivity Level Switches are available with stainless steel 316 electrodes as standard Suitable for many chemicals and aggressive media which are conductive in nature and dirty liquids, liquids with high solid content Construction available with both Solid probes & Suspended probes to suit fitting requirement It is a simple, low cost, point level controller designed for detecton of conductive liquids, having low densites, high viscosities, containing solid particles and interface between nonconductive and conductive liquids. CONSTRUCTION & OPERATION It comprises of a probe, wired to a level controller. The probe holds one common reference/common electrode and one or multiple “Control Electrodes” depending upon the number of levels to be controlled. All the electrodes are suitably insulated to avoid electrical bridging. The lengths of “Control Electrodes” correspond to the height of preset level points to be controlled and the length of the “reference/common Electrode” is kept slightly longer than the longest “Control Electrode”. If tank is conductive, it can be used as a reference/common electrode. Then number of control electrodes equals number of preset levels. Level controller houses sensing electronics consisting of power supply and signal conditoning circuit which provide a “Low AC Voltage” across mass and control electrodes. On liquid reaching preset level point electrical circuit gets completed - generating a signal which is amplified to actuate a relay, those potential free contacts are available for subsequent operations. On “Level Falling” the circuit breaks, deactivating the relay Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PAKING

NRG GLOBAL MAKE side-mounted float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. It is used in water treatment, petrochemical, furnace, shipyard etc. It is widely applicable in the condition of high viscosity, high pressure, high temperature because of it is flexible structure, and it can replace the UQK series products. Working principle To use of liquid buoyancy principle. When the floating ball due to buoyancy and moving up and down, the magnetic reed switch in the junction box will be action when it is influence by the arm end magnetic. The same principle is used in the micro switch device. To use of magnets and magnet micro switch arm end of mutual exclusion movement to push the micro switch action. Product purpose SM series float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. Specification Application : Liquids Liquid Density : Above 0.5 – 2.0 Liquid Velocity : Upto 500 cp Design Pressure : Upto 40 Kg/cm² Design Temp : Upto 300°C Connection : Flanged to ASA/BS/DIN Screwed BSP/Screwed NPT Material : SS304/SS304L/SS316/SS316L/PP/HDPE/PVC/PVDF Lined/PTFE Lined Other Materials on request Switch Type : Micro, SDPT, DPDT Form : 1 NO+1NC / 2NO+2NC Rating : 5 Amp, 230 VAC OR 24 VDC Enclosure : W-Proof IP65 / Ex-Proof Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

NRG GLOBAL MAKE Designed for single point tank monitoring, compact liquid-level switches operate based on non-contact magnetic float and reed switch technology. This design allows for high accuracy fluid level detection of various liquids, including acids and chemicals. The compact style makes mini float switches perfect for tight spaces and small tanks, levels, and containers. elobau’s miniature float type level switches are available in different materials for compatibility with a wide range of fluids, temperatures, and pressures. A robust design and durable housing give our float level switch a long operating life, even in demanding operating conditions.

Oil level sensors work the same way that traditional float switches work, except for they work with oil instead of water. Oil level sensors use magnetic reed switches, that are hermitically sealed in a stainless steel or plastic stem, to measure oil levels and automatically turn on or off oil pumps. The reed switch moves up and down the stem to open or break circuits (turn on or off oil pumps) according to oil levels rising and falling. Once the oil in the tank reaches its lowest predetermined point (closed position) the reed switch will create a circuit and automatically send a signal to your pump to start filling your tank up with oil again. The magnetic reed switch will then open the circuit back up again (open position) once the oil level has reached maximum fill capacity. Additional Information: Production Capacity: 100 Delivery Time: week Packaging Details: export worthy

NRG GLOBAL MAKE side-mounted float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. It is used in water treatment, petrochemical, furnace, shipyard etc. It is widely applicable in the condition of high viscosity, high pressure, high temperature because of it is flexible structure, and it can replace the UQK series products. Working principle To use of liquid buoyancy principle. When the floating ball due to buoyancy and moving up and down, the magnetic reed switch in the junction box will be action when it is influence by the arm end magnetic. The same principle is used in the micro switch device. To use of magnets and magnet micro switch arm end of mutual exclusion movement to push the micro switch action. Product purpose SM series float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit.

NRG MAKE SIDE MOUNTED MAGENTIC LEVEL SWITCH Suitable for fitting into tank or process vessels for controlling liquid level for preventing tank overflow Hooter & Alarm Operate To control dry pump running Miniumum 50 NB Flange ro any Size (Square Flange on request) Housing : Alumunium Die Cast weather proof, Flame Proof High Temperature on request

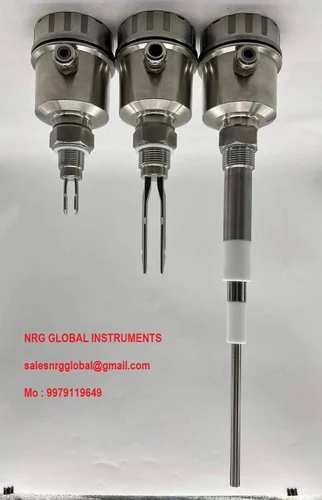

NRG GLOBAL MAKE Vibrating Fork type level switch is a simple, low cost, rugged point Level Switch designed for Level detection of liquids in a tank or vessel. This level switch can be used for detecting high, low level or for both level detection. Used in oil industries, food processing plants, beverages, chemical industry, pulp/paper industry, pharmaceuticals industry etc.The unit has integral electronics along with time delay feature, LED indication, fail safe logic etc.Probe

NRG GLOBAL MAKE Vibrating Fork type level switch is a simple, low cost, rugged point Level Switch designed for Level detection of liquids in a tank or vessel. This level switch can be used for detecting high, low level or for both level detection. Used in oil industries, food processing plants, beverages, chemical industry, pulp/paper industry, pharmaceuticals industry etc.The unit has integral electronics along with time delay feature, LED indication, fail safe logic etc.Probe
