NRG MAKE vibrating fork is a level switch for liquids and is used in tanks, containers and pipelines.As a sturdy replacement of conventional float switch, Elixir offers a variety of built-in featuresnon-existant in floats and other switches, e.g. where materials are sticky, corrosive, agitated,splashing, foaming and having uncertain electrical properties.Elixir vibrating fork is suitablefor hazardous areas, available with explosion-proof housings certified by CMRI , Dhanbad.Features• Less Power Consumption: Less Heat, Long Life• Universal Power Supply: 18 to 55 V DC,90 to 265 V AC on same terminals• Application Temperature Range : up to 200° C• Suitable up to 10,000 cP (Detects all Industrial Fluids)• Compact Size: Less Inventory• Extendable probe length from 68 to 3000 mm• ECTFE coated, polished & hygienic fork• Output: 8.2V Namur, SPDT & DPDT Relay type currentoutput• Calibration Free, independent of material's dielectricpropertiesPrincipleA specially shaped tuning fork is kept vibrating using piezo-electric elements. Typically, thefork vibrates at its natural frequency. The frequency of oscillation for the tuning fork changeswhen immersed in liquids. The change in frequency is detected by the microprocessorleading to a switching decision.Manufacturing Level Instruments & Speed Monitoring SystemsVersion 2.1Grown...to meet challengesELIXIR Microcontrollerbased Vibrating Fork Liquid Level Limit SwitchApprovals CE Marking, RoHS Compliance, IP-67 Marking Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

NRG GLOBAL vibrating fork is a level switch for liquids and is used in tanks, containers and pipelines.As a sturdy replacement of conventional float switch, Elixir offers a variety of built-in featuresnon-existant in floats and other switches, e.g. where materials are sticky, corrosive, agitated,splashing, foaming and having uncertain electrical properties.Elixir vibrating fork is suitablefor hazardous areas, available with explosion-proof housings certified by CMRI , Dhanbad.Features• Less Power Consumption: Less Heat, Long Life• Universal Power Supply: 18 to 55 V DC,90 to 265 V AC on same terminals• Application Temperature Range : up to 200° C• Suitable up to 10,000 cP (Detects all Industrial Fluids)• Compact Size: Less Inventory• Extendable probe length from 68 to 3000 mm• ECTFE coated, polished & hygienic fork• Output: 8.2V Namur, SPDT & DPDT Relay type currentoutput• Calibration Free, independent of material's dielectricpropertiesPrincipleA specially shaped tuning fork is kept vibrating using piezo-electric elements. Typically, thefork vibrates at its natural frequency. The frequency of oscillation for the tuning fork changeswhen immersed in liquids. The change in frequency is detected by the microprocessorleading to a switching decision.Manufacturing Level Instruments & Speed Monitoring SystemsVersion 2.1Grown...to meet challenges Microcontrollerbased Vibrating Fork Liquid Level Limit SwitchApprovals CE Marking, RoHS Compliance, IP-67 Marking Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

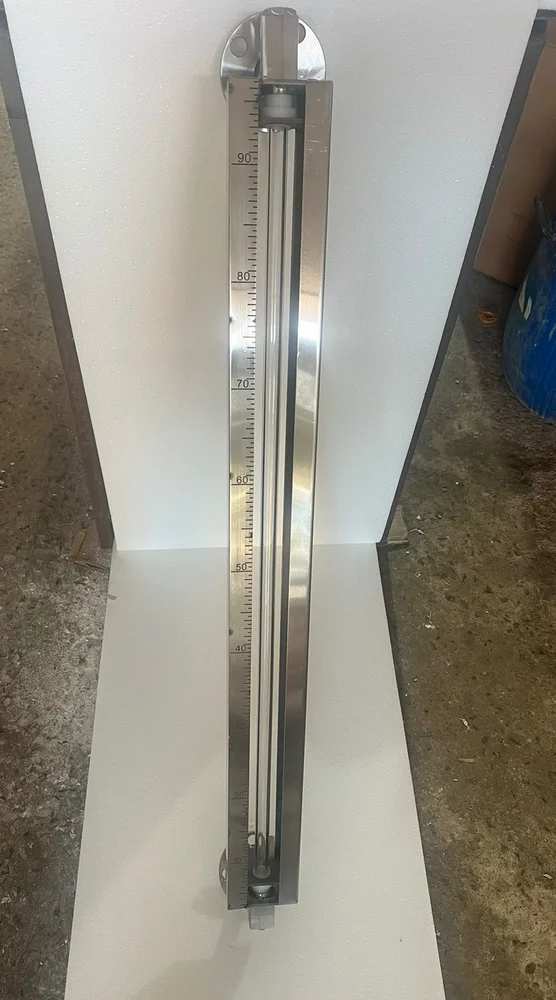

NRG GLOBAL INSTRUMENTS MAKE Tubular Level Gauge is used for visual liquid level indication and is the most commonly used instrument in the process industry. It is a simple and reliable device for level reading in atmospheric or pressurized tank applications. It is mounted parallel, along the side of the tank, so as to form a closed loop. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local level indication. The Tubular Level Gauge manufactured by NRG GLOBAL INSTRUMENTS incorporates correct design, rugged construction, proper manufacturing techniques and skilled workmanship to give dependable performance and long service life. Material integrity is assured through strict compliance of chemical composition analysis in a standard laboratory.TUBULAR LEVEL GAUGE FEATURES• Choice of Tie Rod or C-Frame Construction.• With or without isolating valve.• Material integrity assured through strict compliance of chemical composition analysis in a Standard Laboratory.• H Grade Borosilicate glass tube 19/25 mm outer dia with Teflon Packing.• Glass tube an be removed online i.e. without disconnection from vessel• Standard Connection: 1/2" / 3/4" / 1" Flange drilled to ASA 150#, others on request• Aluminum/SS scale with 5 mm resolution as standard and 1 mm on request.• Drain Plug 1/2" Vent Plug 3/4" as std and drain/vent valve as optional• Safety Ball check device(optional).• Hydro test pressure: 12 KG/cm2, 100 Deg C max working temperature.• Defrost/illuminator available on request.• Tie Rod Construction is ‘light' and permits 360ºC visibility.• C-Frame construction is robust and permits observation from Front & Rear.• Both constructions are available in integral or inline arrangements.• High quality, H grade borosilicate glass tube in 19/25mm outer dia is used.• Available in single length having c/c distance = 1600 mm. Extended lengths are provided by coupling several tubes or gauge assemblies in series• Gland packing design provides tension free tube installation to achieve zero leakage. It also enables glass removal for replacement or cleaning without dismantling the gauge or disconnection from the vessel.• Transparent Acrylic Plate mounted on C-Frame/Acrylic Pipe or slotted metallic pipe clamped on Tie Rod as glass protector can be provided if required, for additional safety to glass & personnel.ApplicationsChemical IndustryPetrochemical industryRefineriesPharmaceutical industryPressure vesselsStorage tanksMarine industryWater & Medium StorageProcess TanksHydraulicFiltrationChemical Dosing SystemsWater TreatmentBoiler Drum LevelShips / Bulk Carriers, etc.AdvantagesSimple and rugged constructionEasy mounting Low maintenanceDirect visible level indicationEconomical measurement solutionAssured level indication without power supplySafety auto shut off ball check valve for accidental breakage of glass tubeProtective guard rods or ‘C’ framePermit viewing from any directionAvailable with level indicator for general applicationsEnd connection screwed/flanged as per requirements of the customersConstruction

Conductivity Level Switch is a simple, low cost, point level measurement switch designed for level detection of conductive liquids having low densities, high viscosities, containing solid particles and to detect interface between non-conductive and conductive liquids. The probes work through the variation of the electrical resistance between the reference electrode and the level-control electrode. Conductivity level switches detect the level resistance when their electrodes are covered by the medium. If the tank is made of plastic, concrete, or any other nonconductive material, an additional electrode is required as a reference Conductivity Level Switches are available with stainless steel 316 electrodes as standard Suitable for many chemicals and aggressive media which are conductive in nature and dirty liquids, liquids with high solid content Construction available with both Solid probes & Suspended probes to suit fitting requirement It is a simple, low cost, point level controller designed for detecton of conductive liquids, having low densites, high viscosities, containing solid particles and interface between nonconductive and conductive liquids. CONSTRUCTION & OPERATION It comprises of a probe, wired to a level controller. The probe holds one common reference/common electrode and one or multiple “Control Electrodes” depending upon the number of levels to be controlled. All the electrodes are suitably insulated to avoid electrical bridging. The lengths of “Control Electrodes” correspond to the height of preset level points to be controlled and the length of the “reference/common Electrode” is kept slightly longer than the longest “Control Electrode”. If tank is conductive, it can be used as a reference/common electrode. Then number of control electrodes equals number of preset levels. Level controller houses sensing electronics consisting of power supply and signal conditoning circuit which provide a “Low AC Voltage” across mass and control electrodes. On liquid reaching preset level point electrical circuit gets completed - generating a signal which is amplified to actuate a relay, those potential free contacts are available for subsequent operations. On “Level Falling” the circuit breaks, deactivating the relay Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PAKING

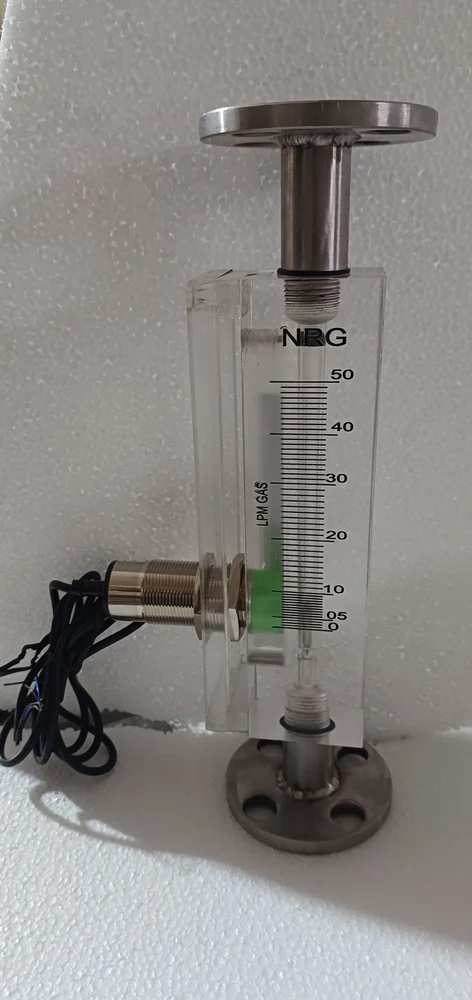

NRG MAKE ACRYLIC BODY ROTAMETER We are specialized in manufacturing and supplying a wide collection of Acrylic Body Rotameter - Threaded Type. Widely used to measure flow rate of liquids and gases under critical conditions, this rota meter is manufactured at our ultra modern manufacturing unit by consuming top class base material in line with market norms to guarantee flawlessness at customer’s end. The offered rota meter is accessible in varied models as per the application necessities of the customers. Along with that, we also modify this flow meter as per information laid down by our customers to fulfill the customer’s requirements. The mentioned prices are approx price & it may vary as per your requirement because it requires customization in product. Features: Superior performance Optimum finish Longer service life

out 93,20,000 results (0.42 seconds) Search ResultsFeatured snippet from the web Universal Power Supply: 18 - 55V DC & 90 - 265V AC. Application Temperature Range : up to 200° C. Outputs: DPDT Relay, Open Collector PNP Output. Process Connection: Threads and Flanges. Polished & hygienic fork. Shorter Probe Length. Fast Switching: 0.5s & 0.8s options available

NRG GLOBAL MAKE Designed for single point tank monitoring, compact liquid-level switches operate based on non-contact magnetic float and reed switch technology. This design allows for high accuracy fluid level detection of various liquids, including acids and chemicals. The compact style makes mini float switches perfect for tight spaces and small tanks, levels, and containers. elobau’s miniature float type level switches are available in different materials for compatibility with a wide range of fluids, temperatures, and pressures. A robust design and durable housing give our float level switch a long operating life, even in demanding operating conditions.

NRG GLOBAL INSTRUMENTS MAKE Tubular Level Gauge is used for visual liquid level indication and is the most commonly used instrument in the process industry. It is a simple and reliable device for level reading in atmospheric or pressurized tank applications. It is mounted parallel, along the side of the tank, so as to form a closed loop. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local level indication. The Tubular Level Gauge manufactured by NRG GLOBAL INSTRUMENTS incorporates correct design, rugged construction, proper manufacturing techniques and skilled workmanship to give dependable performance and long service life. Material integrity is assured through strict compliance of chemical composition analysis in a standard laboratory.TUBULAR LEVEL GAUGE FEATURES• Choice of Tie Rod or C-Frame Construction.• With or without isolating valve.• Material integrity assured through strict compliance of chemical composition analysis in a Standard Laboratory.• H Grade Borosilicate glass tube 19/25 mm outer dia with Teflon Packing.• Glass tube an be removed online i.e. without disconnection from vessel• Standard Connection: 1/2" / 3/4" / 1" Flange drilled to ASA 150#, others on request• Aluminum/SS scale with 5 mm resolution as standard and 1 mm on request.• Drain Plug 1/2" Vent Plug 3/4" as std and drain/vent valve as optional• Safety Ball check device(optional).• Hydro test pressure: 12 KG/cm2, 100 Deg C max working temperature.• Defrost/illuminator available on request.

Product Description NRG GLOBAL offer a high quality Tank Mounted View Glass to our customers. These are aesthetically designed and precision-engineered for their higher performance and durable work life. In addition to this, all these Tank Mounted View Glasses are rigidly checked on various quality parameters to deliver a flawless range in the market. Moreover, clients can get the offered assortment from us at very affordable prices and within given span of time. Features: Long working life High efficiency Light in weight Optimum quality Ansi Flange Type Design: NRG MAKE Sight Glasses of ANSI Flanged type are Bolt-on units designed for attachment to ANSI flanged nozzles or vessel studding outlets The lower flange is a standard ANSI 150# Raised Face flange Higher rated units are also available. (300 and 600) Material certification is furnished with all the units Weld Neck Flange Type Design: NRG make Sight Glasses of Weld Neck Flange type are weld neck units designed to be welded on to pipe ends or into tanks or vessels The lower flange is a standard ANSI 150# weld neck flange Higher rated units are also available (300 and 600) Material certification is furnished with all the units Performance: Temperature Ratings: Maximum Operating Temperature rating is 200o C Connections: Flanged OR Socket Weld OR Butt Weld OR Weld Pad OR Weld Neck Flanged End Connection Pressure Ratings: Maximum Pressure rating is 25 Kg / Cm2 Sizes: From 15 NB to 300 NB. Materials of Construction: Pad Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Cover Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Window: Toughened Borosilicate Glass./ Reflex etc Fasteners: SS316 or SS304 or SA 193 Gr.B7 Gasket: CAF or PTFE Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING
