NRG MAKE FLOAT & BOARD LEVEL GAUGE Mainly Use for Storage tank of Oil, F.D. Fire/Dm Water Tank. Lube Oil. HCL Acid Alka;ic, etc., Vapour seal for Special application like HCL,N2. Pirged Tank. Diluted alkalis etc.... Suitable for Tail & Large Tank non pressirized and non hazardous chemical Storage Tank. A large Self contered Float follows the Liquid Level in this gauge. A rope Fitted with a float moves over a pair of dust free puliey. Level is Indicated by a Pointer moves on a 150 mm Width Aluminium Powder Coated Scale. H eight 1 mtr to 30 mtr and Other on request Available in Polypropylene Additional Information: Delivery Time: as per location

NRG MAKE FLOAT & BOARD LEVEL GAUGE Mainly Use for Storage tank of Oil, F.D. Fire/Dm Water Tank. Lube Oil. HCL Acid Alka;ic, etc., Vapour seal for Special application like HCL,N2. Pirged Tank. Diluted alkalis etc.... Suitable for Tail & Large Tank non pressirized and non hazardous chemical Storage Tank. A large Self contered Float follows the Liquid Level in this gauge. A rope Fitted with a float moves over a pair of dust free puliey. Level is Indicated by a Pointer moves on a 150 mm Width Aluminium Powder Coated Scale. H eight 1 mtr to 2 5 mtr and Other on request Available in Polypropylene Additional Information: Item Code: 9026 Production Capacity: 1000 Delivery Time: 1 WEEK Packaging Details: EXPORTWERTHY PACKING

NRG MAKE FLOAT AND BOARD LEVEL INDICATOR

NRG GLOBAL MAKE Designed for single point tank monitoring, compact liquid-level switches operate based on non-contact magnetic float and reed switch technology. This design allows for high accuracy fluid level detection of various liquids, including acids and chemicals. The compact style makes mini float switches perfect for tight spaces and small tanks, levels, and containers. elobau’s miniature float type level switches are available in different materials for compatibility with a wide range of fluids, temperatures, and pressures. A robust design and durable housing give our float level switch a long operating life, even in demanding operating conditions.

NRG global make simple & easy installation and Direct reading in pressurized tank Wetted Parts in M.S., S.S.304, S.S.316, Polypropylene, Aluminium, M.S.+PTFE, M.S. + P.P Lined, M.S. With Rubber Lined. Isolation Valve & Drain Valve in request Max 3000 mm Length in Single Piece Glass Protected channel available in M.S. S.S.304, S.S.316, FRP Hyd Test Up to 10 Kg/Cm2 Magnetized Float Moves with Level In Extemal Chamber and Magnetic Follower Capsule OR Roller OR Ball Indicates the Liquid Level Externally. Wetted Parts in S.S.304, S.S.316, Polypropylene, PTFE Lined Mainly Use in Furnace Oil, Benzene, Toluene, Ethylene, Alcohol, Acid, Liquid, Gases Like NH3, LPG, SO2, PLC3, etc. High & Low Level Switch, Level Transmitter 4-20 mA, on request. Height up to 5 Mtr Additional Information: Production Capacity: 100 Delivery Time: 1 WEEK Packaging Details: EXPORTWOTHY PACKING

Reflex level guage applicable upto 200 kg/cm and upto 400 deg cent Cryo applications upto -196 deg cent Toughened borosilicate glass with serrations For applicability in critical, acidic, cryo and temperature zone IBR certified device available NACE, H2S service compatibility applicable Non frost extension Heat tracing available Applicable for refinery, petrochemical, chemical, power, radioactive, fertilizer, food, pharma, metal industry applications Additional Information: Production Capacity: 100 Delivery Time: 3 -4 WEEK Packaging Details: EXPORTWORTHY

reading in pressurized tank Wetted Parts in M.S., S.S.304, S.S.316, Polypropylene, Aluminium, M.S.+PTFE, M.S. + P.P Lined, M.S. With Rubber Lined. Isolation Valve & Drain Valve in request Max 3000 mm Length in Single Piece Glass Protected channel available in M.S. S.S.304, S.S.316, FRP Hyd Test Up to 10 Kg/Cm2 Magnetized Float Moves with Level In Extemal Chamber and Magnetic Follower Capsule OR Roller OR Ball Indicates the Liquid Level Externally. Wetted Parts in S.S.304, S.S.316, Polypropylene, PTFE Lined Mainly Use in Furnace Oil, Benzene, Toluene, Ethylene, Alcohol, Acid, Liquid, Gases Like NH3, LPG, SO2, PLC3, etc. High & Low Level Switch, Level Transmitter 4-20 mA, on request. Height up to 5 Mtr Additional Information: Production Capacity: 100 Delivery Time: 1 WEEK Packaging Details: EXPORTWORTY

NRG GLOBAL MAKE Float & Board type level gauge is a weighing liquid level measuring system applicable for non-pressurized storage tanks/vessels. It is basically a balanced counterweight system with an arrow shaped pointer which smoothen the indication process. It is suitable for most liquid application media whose specific gravity is ≥ 0.8. Additionally, it effectively works in the phenomena of turbulence by ensuring stability using guided rope assembly with an anchor. Installation available for Ground Level Tank, Overhead Level Tank and Underground Level Tank. Wide Range Tank Height: Guided (up to 20m), Non-Guided (up to 8m) Float Ø 280mm × 80mm (SS 316 with Tested Pressure 2kg/cm²) Specific Gravity ≥ 0.8 Application Temperature Range : Up to 100° C Adjustable Horizontal Pipe (500 to 1000 mm) Wetted Parts : SS 316 Weatherproof Scale Board (SS 304 & Pure Polyester Powder Coated Aluminum) Process Connection: Flanges Radium Visibility from longer Distance Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

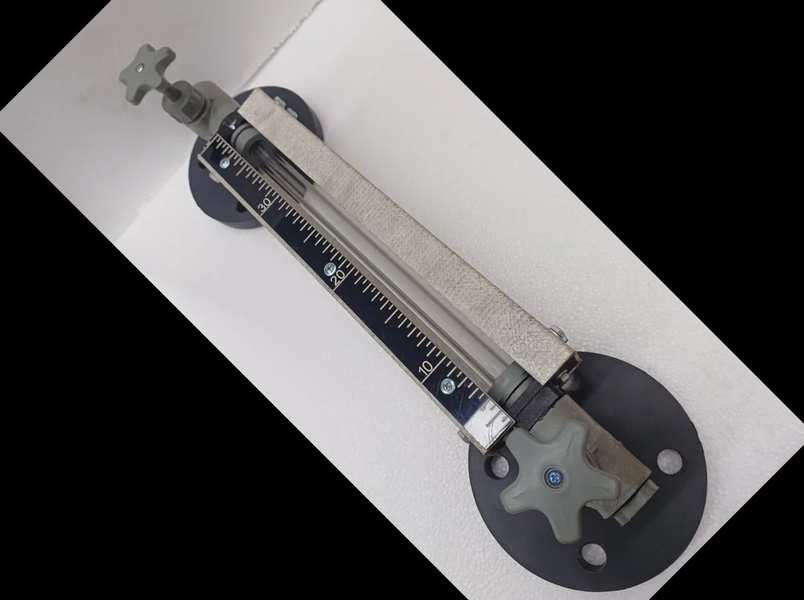

MAKE : NRG GLOBAL MODEL : TUBULAR SIDE MOUNTED TAG NO : 1 TYPE : WITHOUT ISOLATION VALVE FLUID : LIQUID TEMPERATURE : 100O C PRESSURE : 2 Kg/Cm2 SPECIFIC GRAVITY / DENSITY : 0.7-1.2 VISCOSITY (OP / MAX) : 1 Cp WETTED PARTS (MOC) : SS 304 + PTFE LINED CONNECTION FLANGE : SS 304 + PTFE SLIP ON TYPE CONNECTION SIZE : 25 NB ASA 150 # RF CASING / GLASS PROTECTION : SS304 “C” TYPE CHANNEL HAVING 1 MM THICK GLASS TUBE : GLASS TUBE of 19 MM OD SCALE : SS304 ENGRAVED OF 25 MM WIDTH WITH LC 5MM PACKING : 100 % PTFE GLAND : SS304 FASTENERS : SS304 C/C HIEGHT : 2000 MM Additional Information: Production Capacity: 100 Delivery Time: EXPORT WORTHY PACKING Packaging Details: CORRUGATED BOX
