NRG global make simple & easy installation and Direct reading in pressurized tank Wetted Parts in M.S., S.S.304, S.S.316, Polypropylene, Aluminium, M.S.+PTFE, M.S. + P.P Lined, M.S. With Rubber Lined. Isolation Valve & Drain Valve in request Max 3000 mm Length in Single Piece Glass Protected channel available in M.S. S.S.304, S.S.316, FRP Hyd Test Up to 10 Kg/Cm2 Magnetized Float Moves with Level In Extemal Chamber and Magnetic Follower Capsule OR Roller OR Ball Indicates the Liquid Level Externally. Wetted Parts in S.S.304, S.S.316, Polypropylene, PTFE Lined Mainly Use in Furnace Oil, Benzene, Toluene, Ethylene, Alcohol, Acid, Liquid, Gases Like NH3, LPG, SO2, PLC3, etc. High & Low Level Switch, Level Transmitter 4-20 mA, on request. Height up to 5 Mtr Additional Information: Production Capacity: 100 Delivery Time: 1 WEEK Packaging Details: EXPORTWOTHY PACKING

reading in pressurized tank Wetted Parts in M.S., S.S.304, S.S.316, Polypropylene, Aluminium, M.S.+PTFE, M.S. + P.P Lined, M.S. With Rubber Lined. Isolation Valve & Drain Valve in request Max 3000 mm Length in Single Piece Glass Protected channel available in M.S. S.S.304, S.S.316, FRP Hyd Test Up to 10 Kg/Cm2 Magnetized Float Moves with Level In Extemal Chamber and Magnetic Follower Capsule OR Roller OR Ball Indicates the Liquid Level Externally. Wetted Parts in S.S.304, S.S.316, Polypropylene, PTFE Lined Mainly Use in Furnace Oil, Benzene, Toluene, Ethylene, Alcohol, Acid, Liquid, Gases Like NH3, LPG, SO2, PLC3, etc. High & Low Level Switch, Level Transmitter 4-20 mA, on request. Height up to 5 Mtr Additional Information: Production Capacity: 100 Delivery Time: 1 WEEK Packaging Details: EXPORTWORTY

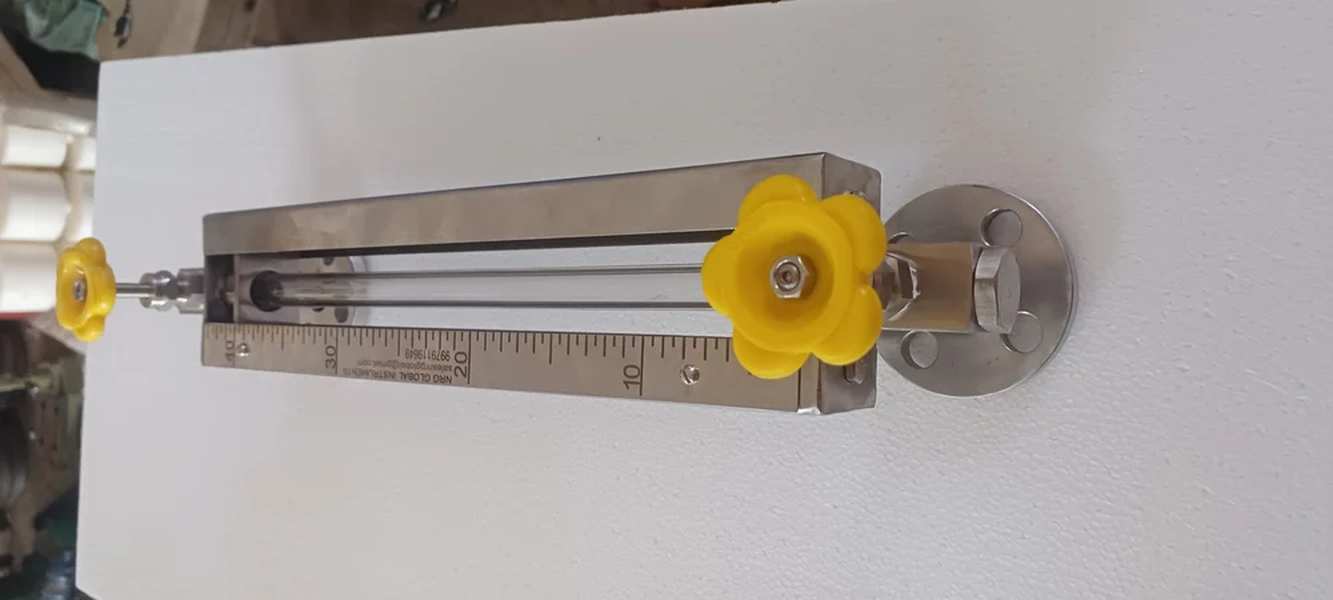

NRG GLOBAL INSTRUMENTS MAKE Tubular Level Gauge is used for visual liquid level indication and is the most commonly used instrument in the process industry. It is a simple and reliable device for level reading in atmospheric or pressurized tank applications. It is mounted parallel, along the side of the tank, so as to form a closed loop. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local level indication. The Tubular Level Gauge manufactured by NRG GLOBAL INSTRUMENTS incorporates correct design, rugged construction, proper manufacturing techniques and skilled workmanship to give dependable performance and long service life. Material integrity is assured through strict compliance of chemical composition analysis in a standard laboratory.TUBULAR LEVEL GAUGE FEATURES• Choice of Tie Rod or C-Frame Construction.• With or without isolating valve.• Material integrity assured through strict compliance of chemical composition analysis in a Standard Laboratory.• H Grade Borosilicate glass tube 19/25 mm outer dia with Teflon Packing.• Glass tube an be removed online i.e. without disconnection from vessel• Standard Connection: 1/2" / 3/4" / 1" Flange drilled to ASA 150#, others on request• Aluminum/SS scale with 5 mm resolution as standard and 1 mm on request.• Drain Plug 1/2" Vent Plug 3/4" as std and drain/vent valve as optional• Safety Ball check device(optional).• Hydro test pressure: 12 KG/cm2, 100 Deg C max working temperature.• Defrost/illuminator available on request.

NRG GLOBAL INSTRUMENTS Manufactures and exporters of Double Window Type Sight Glass (Sight Flow Indicator) in Cast Construction & Fabricated design to meet an industrial requirement of various applications to inspect the process fluid. In Double Window type Sight Flow Indicator (Sight Glass) Contains Two Toughened Glasses Mounted opposite to each other. NRG GLOBAL Double Window Type Sight Glass (Sight Flow Indicator) available with various thickness and diameter of glass to suit various applications respects to fluid pressure and temperature. Double Window Type Sight Glass (Sight Flow Indicator) is very easy to replace glass without dismantling the whole Sight Glass assembly from process line. Double window type Sight Glass gives better performance in application of Higher Pressure & Temperature. Wide range of Toughen Glasses available to suit industrial pressure. All toughen glasses standard as per DIN 7080. Sight Glass body material available ASTM A 216 GR. WCB (Cast Carbon Steel), ASTM A 351 GR. CF 8 (Stainless Steel 304), ASTM A 351 GR. CF 8M (Stainless Steel 316), ASTM A 351 GR. CF 3 (Stainless Steel 304L), ASTM A 351 GR. CF 3M (Stainless Steel 316L), ASTM A 351 GR. CN 7M (Alloy 20) and others on request. Body Hydraulic Test Pressure design up to 17 Kg./Cm2. We also manufacturing Jacketed Type Sight Glass & Steam Jacketed Double Window Type Sight Flow Indicator Investment Casting (I.C.) Body Stainless Steel 304/316/304L/316L/Alloy 20 Sight Glass Flow Indicator Sight Flow Indicator Manufacturing Range - 1"(DN 25) to 12" (DN 300) Additional Information: Item Code: DWSG09 Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

NRG GLOBAL INSTRUMENTS MAKE Electromagnetic Flow Meters, simply known as mag flow meter is a volumetric flow meter which is ideally used for waste water applications and other applications that experience low pressure drop and with appropriate liquid conductivity required.The device doesn’t have any moving parts and cannot work with hydrocarbons and distilled water. Mag flow meters are also easy to maintain.Electromagnetic Flow Meters Principle of Magnetic Flow Meter Based on Faraday’s LawMagnetic flow meters works based on Faraday’s Law of Electromagnetic Induction. According to this principle, when a conductive medium passes through a magnetic field B, a voltage E is generated which is proportional to the velocity v of the medium, the density of the magnetic field and the length of the conductor. [E is the voltage generated in a conductor, V is the velocity of the conductor, B is the magnetic field strength and L is the length of the conductor].It is very important that the liquid flow that is to be measured using the magnetic flow meter must be electrically conductive. The Faraday’s Law indicates that the signal voltage (E) is dependent on the average liquid velocity (V), the length of the conductor (D) and the magnetic field strength (B). The magnetic field will thus be established in the cross-section of the tubeBasically when the conductive liquid flows through the magnetic field, voltage is induced. To measure this generated voltage (which is proportional to the velocity of the flowing liquid), two stainless steel electrodes are used which are mounted opposite each other.The two electrodes which are placed inside the flow meter are then connected to an advanced electronic circuit that has the ability to process the signal. The processed signal is fed into the microprocessor that calculates the volumetric flow of the liquid.Electromagnetic Flow Meters Formula:Electromagnetic flow meters use Faraday’s law of electromagnetic induction for making a flow measurement. Faraday’s law states that, whenever a conductor of length ‘l’ moves with a velocity ‘v’ perpendicular to a magnetic field ‘B’, an emf ‘e’ is induced in a mutually perpendicular direction which is given byThus the volume flow rate is proportional to the induced emf. In Practical applications we have to enter the meter constant ‘K’ value in magnetic flow meter which is available in vendor catalog/manual.Applications of Magnetic Flow MetersThis electromagnetic flow meter being non intrusive type, can be used in general for any fluid which is having a reasonable electrical conductivity above 10 microsiemens/cm.Fluids like sand water slurry, coal powder, slurry, sewage, wood pulp, chemicals, water other than distilled water in large pipe lines, hot fluids, high viscous fluids specially in food processing industries, cryogenic fluids can be metered by the electromagnetic flow meter Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

Description : FEDREL / KRANTI Make Woltman Type Water Meter (Cold) Size range : 40 To 500 MM(1½” To 20”) Temp Range : 0°C to 45°C Accuracy Class :Class B (±2 % @ Nominal flow rate) Product Standard : ISO-4064/IS-2373 Body Material cum Standard : IS-210 Gr. FG-200 Dial Details : Magnetic Drive, Extra Dry Dial Protection Class : IP-68 End Details : Flanged Ends to BS: 4504 PN 16 APPLICATIONS · Water Supply Networks · Industries · Agriculture FEATURES AND BENEFITS · Extra Dry Dial · Hermetically sealed register ensures that all internal parts clean and prevents fogging throughout the entire lifetime of the meter. · Robust type body to pass the strongest resistance tests in both static and dynamic conditions. · High quality engineered materials for hydraulics and register pivot ensure high reliability and durability · Shock –resistant material for register and closure. · High performance magnetic transmission ensures no part of the register is in contact with water · Interchangeable spare parts for easy online maintenance · High sensitivity, low pressure loss · In-line strainers are standard. · Available for both cold and hot water. 100% of the products are calibrated and all calibrations results can be provided · Temperature Range = 45°c Description : FEDREL / KRANTI Make Woltman Type Water Meter (Cold) Size range : 40 To 500 MM(1½” To 20”) Temp Range : 0°C to 45°C Accuracy Class :Class B (±2 % @ Nominal flow rate) Product Standard : ISO-4064/IS-2373 Body Material cum Standard : IS-210 Gr. FG-200 Dial Details : Magnetic Drive, Extra Dry Dial Protection Class : IP-68 End Details : Flanged Ends to BS: 4504 PN 16 Additional Information: Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PAKING

MAKE : NRG GLOBAL MODEL : TUBULAR SIDE MOUNTED TYPE : WITHOUT ISOLATION VALVE FLUID : LIQUID TEMPERATURE : 50O C SPECIFIC GRAVITY / DENSITY : 0.7-1.2 VISCOSITY (OP / MAX) : 1 Cp WETTED PARTS (MOC) : MS CONNECTION FLANGE : MS SLIP ON TYPE CASING / GLASS PROTECTION: MS “C” TYPE CHANNEL OF 1 MM THICK WITH POWDER COATED TUBE : BOROSILICATE TRANSPARENT GLASS TUBE of 25 MM OD SCALE : ACRYLIC ENGRAVED OF 25 MM WIDTH WITH LC 5MM PACKING : 100 % PTFE GLAND PUSHER : PTFE VALVE TYPE : NA VALVE BODY : NA VENT PLUG : ½” MS BSP Stop Plug DRAIN PLUG : ½” MS BSP Stop Plug ACCESSOIRES : NA HYD TEST : 7 Kg/cm2 to Vacuum FASTENERS : SS304

MAKE : NRG GLOBAL MODEL : TUBULAR SIDE MOUNTED TYPE : WITH VALVE FLUID : LIQUID TEMPERATURE : 150O C PRESSURE : VACCUME TO 6 Kg/Cm2 SPECIFIC GRAVITY / DENSITY : 0.7-1.2 VISCOSITY (OP / MAX) : 1 Cp WETTED PARTS (MOC) : SS 304 CONNECTION FLANGE : SS 304 SLIP ON TYPE CASING / GLASS PROTECTION : SS304 “C” TYPE CHANNEL HAVING 1 MM THICK GLASS TUBE : GLASS TUBE OF 19 MM OD SCALE : SS304 ENGRAVED OF 25 MM WIDTH WITH LC 5MM PACKING : 100 % PTFE GLAND : SS304 VALVE TYPE : SS304 INBUILT ISOLATION NEEDLE VALVE VALVE BODY : SS304 VENT PLUG : ½” BSP STOP PLUG DRAIN PLUG : ½” BSP STOP PLUG ACCESSOIRES : N. A. HYD TEST : 7 Kg/cm2 to Vacuum FASTENERS : SS304 CONNECTION SIZE : 1” ASA 150 # RF

Established in the year 2020, NRG GLOBAL is an accomplished manufacturer, trader and exporter of a wide range of measuring instrument. Our aim from day one has been to offer world-class products to customers at very reasonable prices. This has driven us to follow the latest technical advancements in the industry and enhance our product range by incorporating the same into our offerings.The company was founded and has grown under the great leadership of our owner Mr. RIKESH BHAGAT who has along with our top-management team has dedicated himself to the growth and well-being of the organization. With comprehensive domain expertise and experience, he provides us with valuable direction and guidance that has helped us in being a leader in this industry.We believe in achieving overall excellence in all our functions.
