NRG GLOBAL OFFFER Reliable level monitoring for liquids, gases, powders & bulk solids. Different measuring principles. Find the right level sensor Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

NRG GLOBAL MAKE Displacer type level switches offers the industrial user a wide choice of alarm and control configuration. DLS works on a simple buoyancy principle and is well suited for simple or complex applications, such as forming surging liquids or agitated fluids, and usually costs less than other types of level switches. CONSTRUCTION & OPERATION Operation is based on simple buoyancy principle. As the liquid level rises and progressively immerses the displacer elements, the effective weight suspended on the spring reduces and the consequent length of the spring change is used to provide magnet movement and operate the switch. The spring movement causes the magnetic sleeve to attract a pivoted magnet actuating a switch mechanism located outside the barrier tube. Built-in limit stops, prevent over stroking under level surge conditions. FEATURES: • Wide choice of switching functions • Suitable for large tanks up to 15 meters • Site adjustable switch points • Customized for high temp, high pressure & vaccum applications. • Reliable performance in turbulent liquids even without still pipes. • Easy transportation of longer length switches. • Enclosure : Weather proof-IP-65 Ex-proof-Gr. IIA & IIB or IIC GENERAL SPECIFICATIONS: Enclosure : Cast ALUMINIUM, Weather Proof-IP 65, Cast AL Ex-proof Gr. IIA & IIB or IIC Conduit Connection : ¾ ” ET or ½” NPT Measuring Range : 200 mm~15000 mm Operating Differential : 40±5 mm / Adjustable / 65 ±5 mm Switch Type : Micro switch Switch Contacts : 2 SPDT (2 NO + 2 NC) @ 5A, 230 VAC (Resistive) Switch Action : Bistable Terminals : To suit 1.5 mm2 conductor Flexible Rope : SS304, SS316, PP, PTFE Displacer : SS304, SS316, PP, PTFE Spring Housing : SS316, PP, PTFE Spring Material : SS316, SS316L Process Connection Flanged : MS, SS304, SS316, PP (SS clad), PTFE (SS clad) Perforated still well : MS, SS304, SS316, PP (65 NB) External Cage : MS, SS304, SS316, PP (80 NB) Max. Temperature : 0-200°C (without cooling fins) 0-300°C (with cooling fins) (Contact factory for temperature more than 300°C) Max. Test Pressure : Vaccum to 40 Kg/cm2 (Contact factory for pressure more than 40 Kg/cm2) Min. Sp. Gravity : 0.7 (Contact factory for Sp. Gr. less than 0.7)

A pressure gauge measures the pressure of a gas or liquid within a system. It monitors the fluid pressure in various applications, such as automotive, aerospace, medical, and manufacturing industries. Measuring the pressure in a system is critical to ensure the consistency of a product and a measure of safety to be aware of leaks or building pressure in a system. Before specifying a pressure gauge, it is important to understand the basic principles of pressure. This article covers how pressure gauges work and how to select one for an application. Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

Differential pressure gauges measure the difference between two pressures. They are suitable for the monitoring of filter contamination, for level measurement in closed vessels, for overpressure measurement in clean rooms, for flow measurement of gaseous and liquid media and for the control of pumping plants. In differential pressure gauges, different pressure elements and tube forms are used (diaphragm element, capsule element, Bourdon tube, etc.). This enables scale ranges of 0 ... 0.5 mbar up to 0 ... 1,000 bar to be covered, with a very high single and dual-sided and also bidirectional overload safety up to 400 bar. Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PAKING

Pressure gauges are instruments designed to measure the pressure of media in a system. Measuring the pressure in your system is a critical quality step to ensure consistency of a product and safety check to be aware of leaks or building pressure in a system. Before specifying a gauge, it is important to understand the basic principles of what pressure is. Then the correct pressure gauge can be determined based on selection criteria, to accurately measure the pressure within the system. Even the best measuring equipment produces a certain deviation from the actual value. It is important to know how this measurement accuracy is defined. Digital gauges in comparison with analog ones have higher accuracy. Read our article on digital pressure gauges if you want to learn more about that type. Additional Information: Item Code: pg Production Capacity: Weeek Delivery Time: week Packaging Details: Export Worthy packing

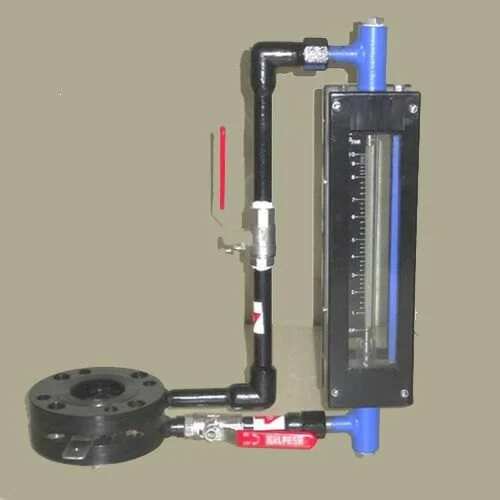

NRG GLOBAL MAKE By-Pass Rotameter is an Inference type flow meter. Differential pressure (DP) is created by providing an Orifice Plate in the main line. Due to the differential pressure, fluid flows through branch pipes provided across the upstream and downstream sides of the Orifice Plate. An additional Range Orifice plate is provided in the by-pass line as flow through the by-pass line will be in proportion with Main Line. • Bye pass rotameters are used for measurement of higher flow rates where using inline flow meter is not commercially or functionally not viable. • It works on the principle of measuring differential pressure created across restriction. • The construction includes an orifice plate installed between either carrier ring or orifice/pipe flanges. • The Hi/Low pressure taps of carrier ring/orifice flange/ pipe are connected to indicating Rotameter with a help of impulse tube arrangement. The Indicating Rotameter can be of Glass or Metal tube Type. • NRG make Bye pass Rotameters can be used for liquids or Gases and is available from 2” to 40” sizes. • Applications: Water/Pharma/Chemical/Fertilizers/Power/Petrochem/Refinery Specifications : By- Pass Rotameter Type: Glass Tube / Metal Tube / Acrylic Flange: CS /A 105 / SS 304 / SS 316 Carrier Ring: CS /A 10S / SS 304/SS 316 Line Size from 80 NB to 300 NB Main Orifice Plate: SS 316 / SS 304 / PTFE Range Orifice Plate: SS 316 / SS 304 / PTFE Accuracy :+/- 5% of FullScale Measuring Span : 1:10 Scale: Acrylic / Aluminum / SS Measuring Span : 1:10

Metal Tube Rotameter is a Variable Area Flow Meter. It consists of a tapered tube, typically made of steel with a 'float', made of SS or PTFE. The differential pressure across the annulus area is constant. The float moves through the tapered tube up and down with respect to fluid flow. The vertical position of the float as indicated by scale is the measure of the instantaneous flow rate. Specifications : Material of Construction :SS 316 / PTFE Float : SS 316 / PTFE Tube : SS 316 Enclosure: SS Buffed / Die Cast Aluminum Line Size from 15 NB to 100NB Ranges between 25 LPH to 60000LPH Face-To-Face Distance : 250mm Accuracy : +/- 2% of FullScale Measuring Span : 1:10 Scale : Acrylic / Aluminum / SS

NRG GLOBAL MAKE Designed for single point tank monitoring, compact liquid-level switches operate based on non-contact magnetic float and reed switch technology. This design allows for high accuracy fluid level detection of various liquids, including acids and chemicals. The compact style makes mini float switches perfect for tight spaces and small tanks, levels, and containers. elobau’s miniature float type level switches are available in different materials for compatibility with a wide range of fluids, temperatures, and pressures. A robust design and durable housing give our float level switch a long operating life, even in demanding operating conditions.

NRG capacitance level TRANSMITTER offers a solution for level limit detection offine, coarse, bulky solids, nonstickyslurries and liquids. The measuring systemconsists of an evaluation unit, an electronic insert and a probe. It works by utilizingthe dielectric property of the application material.PrincipleThe probe comprises of a sense electrode, electrically isolated from the metallic tank bymeans of a suitable insulator. The sense electrode and the vessel wall serve as the twoelectrodes of a capacitor with the service material acting as the dielectric. A change in thelevel of material causes a change in the dielectric, which in turn causes the value of this tankcapacitor to change.Approvals CE Marking, Flameproof Enclosure (Gas Groups IIA, IIB, IIC), RoHS Compliance Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING
