Name: Metal Tube Rotameter
Availability: InStock

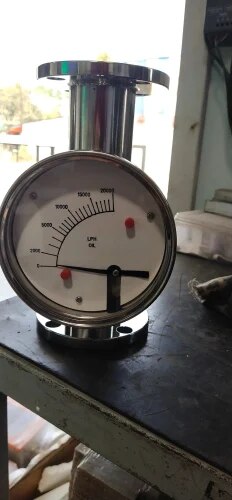

Metal Tube Rotameter

Phone Number

08048032280

Please keep 0 before dialling the number.

Email Address salesnrgglobal@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 986/20/1, Diamond Park Gate No. 2, G.I.D.C Industrial Estate, GIDC, Makarpura, Vadodara-390010, Gujarat, India

Vadodara, India, 390010

Description

Metal Tube Rotameter is a Variable Area Flow Meter. It consists of a tapered tube, typically made of steel with a 'float', made of SS or PTFE. The differential pressure across the annulus area is constant. The float moves through the tapered tube up and down with respect to fluid flow. The vertical position of the float as indicated by scale is the measure of the instantaneous flow rate. Specifications : Material of Construction :SS 316 / PTFE Float : SS 316 / PTFE Tube : SS 316 Enclosure: SS Buffed / Die Cast Aluminum Line Size from 15 NB to 100NB Ranges between 25 LPH to 60000LPH Face-To-Face Distance : 250mm Accuracy : +/- 2% of FullScale Measuring Span : 1:10 Scale : Acrylic / Aluminum / SS
