1. Product Description NRG GLOBAL Introduced magnetically float operated Top Mounted Level Switch for controlling one or multi Levels by using reed Switch. The Unit Consists of Vertical Guide Pipe (Stem), Reed Switches Are located, Magnetic Float Sliding over the Stem according to the level in the tank. After passing the float, the reed relay will retain their output state. Various materials of construction are available depending up on Service Condition. Maximum 4 Set points can be given in a Single Level Switch & Maximum stem length will be 3 Meters. 2. Technical Data Float : S.S.316 / SS with PTFE / Poly Propylene Process Connection : Flanged / Screwed / TC Joint Flange : Mini 1” NB to Any Size in C.S. / S.S.304 / S.S.316 / SS with PTFE Coated / P.P. Switch : Hermetically Sealed Magnetically Operated Reed Switch with Rhodium Contact SPST / SPDT. Rating : 0.5 Amps @ 24 V DC Switch Housing : Die Cast Aluminum, Weather Proof IP 65 (Enclosure) / Flame Proof to II A, II B (IS – 2148 CMRS Dhanbad Approved) Operating Pressure : 10 Kg / Cm2 Operating Temp : Max. 90 C. Cable Entry : ½” NPT (F) OR ¾” ET (F) No of Switches : As Per Customer Requirement Stem Length : Up to 3 Meters 3. Design features 1. One Moving Component Exists, so that no – wear of float. 2. Suitable for any fluid having Specific Gravity Above 0.7 3. Minimum possible Distance between 2 Level set Points is 75 mm. 4. Accuracy : ± 0.10%, ± 0.25 %, ± 0.5 % on F.S. 5. The switch operates on the principle of magnetic flux coupling with no mechanical connection so that fluid contamination of switch components cannot occur. 4. Ordering Information Information Required to Quote: Material of Construction, Service Medium, Specific Gravity, Max. Pressure & Temperature, Number of Actuating Levels & Their Distance from top of the Connection, Process Connection.

1. Product Description NRG GLOBAL Introduced magnetically float operated Top Mounted Level Switch for controlling one or multi Levels by using reed Switch. The Unit Consists of Vertical Guide Pipe (Stem), Reed Switches Are located, Magnetic Float Sliding over the Stem according to the level in the tank. After passing the float, the reed relay will retain their output state. Various materials of construction are available depending up on Service Condition. Maximum 4 Set points can be given in a Single Level Switch & Maximum stem length will be 3 Meters. 2. Technical Data Float : S.S.316 / SS with PTFE / Poly Propylene Process Connection : Flanged / Screwed / TC Joint Flange : Mini 1” NB to Any Size in C.S. / S.S.304 / S.S.316 / SS with PTFE Coated / P.P. Switch : Hermetically Sealed Magnetically Operated Reed Switch with Rhodium Contact SPST / SPDT. Rating : 0.5 Amps @ 24 V DC Switch Housing : Die Cast Aluminum, Weather Proof IP 65 (Enclosure) / Flame Proof to II A, II B (IS – 2148 CMRS Dhanbad Approved) Operating Pressure : 10 Kg / Cm2 Operating Temp : Max. 90 C. Cable Entry : ½” NPT (F) OR ¾” ET (F) No of Switches : As Per Customer Requirement Stem Length : Up to 3 Meters 3. Design features 1. One Moving Component Exists, so that no – wear of float. 2. Suitable for any fluid having Specific Gravity Above 0.7 3. Minimum possible Distance between 2 Level set Points is 75 mm. 4. Accuracy : ± 0.10%, ± 0.25 %, ± 0.5 % on F.S. 5. The switch operates on the principle of magnetic flux coupling with no mechanical connection so that fluid contamination of switch components cannot occur. 4. Ordering Information Information Required to Quote: Material of Construction, Service Medium, Specific Gravity, Max. Pressure & Temperature, Number of Actuating Levels & Their Distance from top of the Connection, Process Connection. Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

PRINCIPALA SMALL ELECTRIC MOTOR DRIVES THE PADDLE, WHICH ROTATES FREELY IN THE ABSENCE OF MATERIAL. IMPEDED BY MATERIAL THE MOTOR WILL BE TURNED WITHIN THE HOUSING WHILE LOADING A SPRING AND TRIGGERING TWO SWITCHES. ONE OF THEM IS A DRY ELECTRIC CONTACT FOR CONTROL AND ALARM FUNCTIONS WHILE THE OTHER CUTS THE POWER TO THE MOTOR. WHEN THE MATERIAL LEVEL DROPS, THE LOADED STRETCHED TENSION SPRING RETURNS THE MOTOR TO ITS ORIGINAL POSITION AND THE UNIT IS REACTIVATEDFEATURES• SPECIAL CLUTCH DESIGN(NON MAGNETIC)• FLEXIBLE COUPLING (OPTIONAL AS PER APPLICATION)• ROBUST, DUST AND WATERTIGHT HOUSING• EXTENDED PROBE POSSIBLE.• SEALED BEARINGS• INTERCHANGEABLE PADDLE ASSEMBLIES• 1 SPDT ( MICROSWITCH )APPLICATIONS• DRY SAND & FLY ASH• PET / PVC CHIPS WITH UNDER WATER DETECTION• RICE, WHEAT, OTHER FOOD GRAIN, FLOUR• IRON ORE, SINTERS AND PULVERIZED COAL• MILK POWDER Additional Information: Production Capacity: 100 Delivery Time: ex stock Packaging Details: export worthy packing

PRINCIPALA SMALL ELECTRIC MOTOR DRIVES THE PADDLE, WHICH ROTATES FREELY IN THE ABSENCE OF MATERIAL. IMPEDED BY MATERIAL THE MOTOR WILL BE TURNED WITHIN THE HOUSING WHILE LOADING A SPRING AND TRIGGERING TWO SWITCHES. ONE OF THEM IS A DRY ELECTRIC CONTACT FOR CONTROL AND ALARM FUNCTIONS WHILE THE OTHER CUTS THE POWER TO THE MOTOR. WHEN THE MATERIAL LEVEL DROPS, THE LOADED STRETCHED TENSION SPRING RETURNS THE MOTOR TO ITS ORIGINAL POSITION AND THE UNIT IS REACTIVATEDFEATURES• SPECIAL CLUTCH DESIGN(NON MAGNETIC)• FLEXIBLE COUPLING (OPTIONAL AS PER APPLICATION)• ROBUST, DUST AND WATERTIGHT HOUSING• EXTENDED PROBE POSSIBLE.• SEALED BEARINGS• INTERCHANGEABLE PADDLE ASSEMBLIES• 1 SPDT ( MICROSWITCH )APPLICATIONS• DRY SAND & FLY ASH• PET / PVC CHIPS WITH UNDER WATER DETECTION• RICE, WHEAT, OTHER FOOD GRAIN, FLOUR• IRON ORE, SINTERS AND PULVERIZED COAL• MILK POWDER Additional Information: Production Capacity: 100 Delivery Time: ex stock Packaging Details: export worthy packing

NRG GLOBAL INSTRUMENTS MAKE Tubular Level Gauge is used for visual liquid level indication and is the most commonly used instrument in the process industry. It is a simple and reliable device for level reading in atmospheric or pressurized tank applications. It is mounted parallel, along the side of the tank, so as to form a closed loop. As the process level fluctuates, the level in the transparent glass tube changes accordingly and gives local level indication. The Tubular Level Gauge manufactured by NRG GLOBAL INSTRUMENTS incorporates correct design, rugged construction, proper manufacturing techniques and skilled workmanship to give dependable performance and long service life. Material integrity is assured through strict compliance of chemical composition analysis in a standard laboratory.TUBULAR LEVEL GAUGE FEATURES• Choice of Tie Rod or C-Frame Construction.• With or without isolating valve.• Material integrity assured through strict compliance of chemical composition analysis in a Standard Laboratory.• H Grade Borosilicate glass tube 19/25 mm outer dia with Teflon Packing.• Glass tube an be removed online i.e. without disconnection from vessel• Standard Connection: 1/2" / 3/4" / 1" Flange drilled to ASA 150#, others on request• Aluminum/SS scale with 5 mm resolution as standard and 1 mm on request.• Drain Plug 1/2" Vent Plug 3/4" as std and drain/vent valve as optional• Safety Ball check device(optional).• Hydro test pressure: 12 KG/cm2, 100 Deg C max working temperature.• Defrost/illuminator available on request.

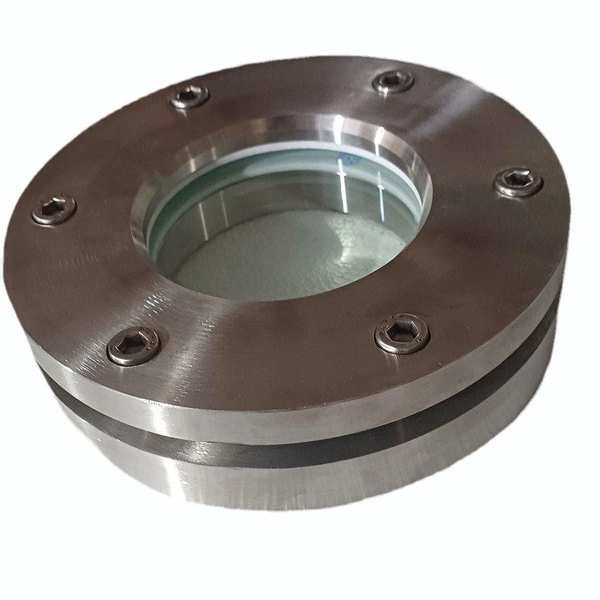

Product Description NRG GLOBAL offer a high quality Tank Mounted View Glass to our customers. These are aesthetically designed and precision-engineered for their higher performance and durable work life. In addition to this, all these Tank Mounted View Glasses are rigidly checked on various quality parameters to deliver a flawless range in the market. Moreover, clients can get the offered assortment from us at very affordable prices and within given span of time. Features: Long working life High efficiency Light in weight Optimum quality Ansi Flange Type Design: NRG MAKE Sight Glasses of ANSI Flanged type are Bolt-on units designed for attachment to ANSI flanged nozzles or vessel studding outlets The lower flange is a standard ANSI 150# Raised Face flange Higher rated units are also available. (300 and 600) Material certification is furnished with all the units Weld Neck Flange Type Design: NRG make Sight Glasses of Weld Neck Flange type are weld neck units designed to be welded on to pipe ends or into tanks or vessels The lower flange is a standard ANSI 150# weld neck flange Higher rated units are also available (300 and 600) Material certification is furnished with all the units Performance: Temperature Ratings: Maximum Operating Temperature rating is 200o C Connections: Flanged OR Socket Weld OR Butt Weld OR Weld Pad OR Weld Neck Flanged End Connection Pressure Ratings: Maximum Pressure rating is 25 Kg / Cm2 Sizes: From 15 NB to 300 NB. Materials of Construction: Pad Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Cover Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Window: Toughened Borosilicate Glass./ Reflex etc Fasteners: SS316 or SS304 or SA 193 Gr.B7 Gasket: CAF or PTFE Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

Product Description NRG GLOBAL offer a high quality Tank Mounted View Glass to our customers. These are aesthetically designed and precision-engineered for their higher performance and durable work life. In addition to this, all these Tank Mounted View Glasses are rigidly checked on various quality parameters to deliver a flawless range in the market. Moreover, clients can get the offered assortment from us at very affordable prices and within given span of time. Features: Long working life High efficiency Light in weight Optimum quality Ansi Flange Type Design: NRG MAKE Sight Glasses of ANSI Flanged type are Bolt-on units designed for attachment to ANSI flanged nozzles or vessel studding outlets The lower flange is a standard ANSI 150# Raised Face flange Higher rated units are also available. (300 and 600) Material certification is furnished with all the units Weld Neck Flange Type Design: NRG make Sight Glasses of Weld Neck Flange type are weld neck units designed to be welded on to pipe ends or into tanks or vessels The lower flange is a standard ANSI 150# weld neck flange Higher rated units are also available (300 and 600) Material certification is furnished with all the units Performance: Temperature Ratings: Maximum Operating Temperature rating is 200o C Connections: Flanged OR Socket Weld OR Butt Weld OR Weld Pad OR Weld Neck Flanged End Connection Pressure Ratings: Maximum Pressure rating is 25 Kg / Cm2 Sizes: From 15 NB to 300 NB. Materials of Construction: Pad Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Cover Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Window: Toughened Borosilicate Glass./ Reflex etc Fasteners: SS316 or SS304 or SA 193 Gr.B7 Gasket: CAF or PTFE Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

NRG GLOBAL offer a high quality Tank Mounted View Glass to our customers. These are aesthetically designed and precision-engineered for their higher performance and durable work life. In addition to this, all these Tank Mounted View Glasses are rigidly checked on various quality parameters to deliver a flawless range in the market. Moreover, clients can get the offered assortment from us at very affordable prices and within given span of time. Features: Long working life High efficiency Light in weight Optimum quality Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: CORUGATED BOX

Product Description NRG GLOBAL offer a high quality Tank Mounted View Glass to our customers. These are aesthetically designed and precision-engineered for their higher performance and durable work life. In addition to this, all these Tank Mounted View Glasses are rigidly checked on various quality parameters to deliver a flawless range in the market. Moreover, clients can get the offered assortment from us at very affordable prices and within given span of time. Features: Long working life High efficiency Light in weight Optimum quality Ansi Flange Type Design: NRG MAKE Sight Glasses of ANSI Flanged type are Bolt-on units designed for attachment to ANSI flanged nozzles or vessel studding outlets The lower flange is a standard ANSI 150# Raised Face flange Higher rated units are also available. (300 and 600) Material certification is furnished with all the units Weld Neck Flange Type Design: NRG make Sight Glasses of Weld Neck Flange type are weld neck units designed to be welded on to pipe ends or into tanks or vessels The lower flange is a standard ANSI 150# weld neck flange Higher rated units are also available (300 and 600) Material certification is furnished with all the units Performance: Temperature Ratings: Maximum Operating Temperature rating is 200o C Connections: Flanged OR Socket Weld OR Butt Weld OR Weld Pad OR Weld Neck Flanged End Connection Pressure Ratings: Maximum Pressure rating is 25 Kg / Cm2 Sizes: From 15 NB to 300 NB. Materials of Construction: Pad Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Cover Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Window: Toughened Borosilicate Glass./ Reflex etc Fasteners: SS316 or SS304 or SA 193 Gr.B7 Gasket: CAF or PTFE Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING
