Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: CORRUGATED BOX

MAKE : NRG GLOBAL MODEL : TUBULAR SIDE MOUNTED TAG NO : 1 TYPE : WITHOUT ISOLATION VALVE FLUID : LIQUID TEMPERATURE : 100O C PRESSURE : 2 Kg/Cm2 SPECIFIC GRAVITY / DENSITY : 0.7-1.2 VISCOSITY (OP / MAX) : 1 Cp WETTED PARTS (MOC) : SS 304 + PTFE LINED CONNECTION FLANGE : SS 304 + PTFE SLIP ON TYPE CONNECTION SIZE : 25 NB ASA 150 # RF CASING / GLASS PROTECTION : SS304 “C” TYPE CHANNEL HAVING 1 MM THICK GLASS TUBE : GLASS TUBE of 19 MM OD SCALE : SS304 ENGRAVED OF 25 MM WIDTH WITH LC 5MM PACKING : 100 % PTFE GLAND : SS304 FASTENERS : SS304 C/C HIEGHT : 2000 MM Additional Information: Production Capacity: 100 Delivery Time: EXPORT WORTHY PACKING Packaging Details: CORRUGATED BOX

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanksDirect IndicationThe Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’.Gauge ClassificationMeasuring Range : Up to 40 meters. For more than 40 meters please consult factory.Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12”Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalLeast Count : 10 MMMaximum Temperature : 80°C (PP) / 300°C (SS)Maximum Pressure : 10 KG/CM2Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring)Installation : Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid : 0.75 TO 2.0Connecting Pipe : Carbon Steel Powder CoatedLocal IndicationDirect : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS)Protection ConduitHorizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb : MS pipe 25NB x 195mm & 100mm longProcess Connections : 1” 150#Note : Custom made assemblies can be provided for specific applications Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: CORRUGATED BOX

Radar Level Measurementby Editorial Staff Radar level instruments measure the distance from the transmitter (located at some high point) to the surface of a process material located farther below in much the same way as ultrasonic transmitters – by measuring the time-of-flight of a traveling wave. The fundamental difference between a radar instrument and an ultrasonic instrument is the type of wave used: radio waves instead of sound waves. Radio waves are electromagnetic in nature (comprised of alternating electric and magnetic fields), and very high frequency (in the microwave frequency range – GHz). Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: CORRUGATED BOX

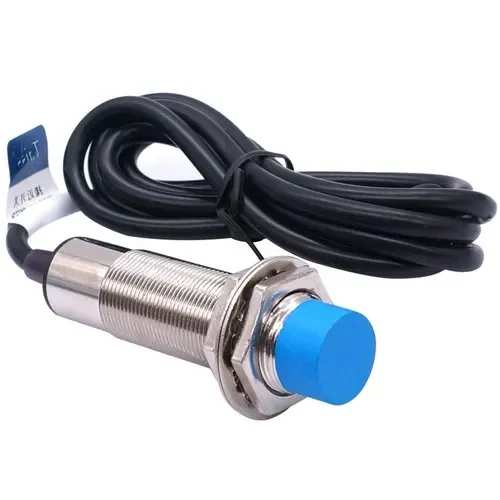

nrg global The inductive sensors follow the standard M12 and M18 industry design, and offer a wider detection range with the same dimensions to provide easier and faster installation. Additional Information: Production Capacity: 100 Delivery Time: week Packaging Details: corrugated box

Nrg Global make various type process control instrumentsFeatures :• Larger Dual LCD with backlight• Data Hold• Max / Min / Avg value with relative time stamp• Zero Adjust, Offset and DIF function• Auto Power Off• Low Battery indication• USB Computer Interface(Advanced Software Program for all windows)Technical Data :Model 6202 6205Accuracy +0.3% FSORepeatability +0.2% (Max. +0.5% FSO)Linearity / Hysteresis +0.29% FSOPressure Range+2 psi(+55.40 in H2O)+5 Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: CORRUGATED BOX

NRG GLOBAL MAKE side-mounted float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. It is used in water treatment, petrochemical, furnace, shipyard etc. It is widely applicable in the condition of high viscosity, high pressure, high temperature because of it is flexible structure, and it can replace the UQK series products. Working principle To use of liquid buoyancy principle. When the floating ball due to buoyancy and moving up and down, the magnetic reed switch in the junction box will be action when it is influence by the arm end magnetic. The same principle is used in the micro switch device. To use of magnets and magnet micro switch arm end of mutual exclusion movement to push the micro switch action. Product purpose SM series float level switch is suitable for liquid level control of open or bearing pressure container in industrial process. When the liquid level reaches to high or low limit, relay contact point can be as signal alarm device or the switch in electronic pump circuit. Specification Application : Liquids Liquid Density : Above 0.5 – 2.0 Liquid Velocity : Upto 500 cp Design Pressure : Upto 40 Kg/cm² Design Temp : Upto 300°C Connection : Flanged to ASA/BS/DIN Screwed BSP/Screwed NPT Material : SS304/SS304L/SS316/SS316L/PP/HDPE/PVC/PVDF Lined/PTFE Lined Other Materials on request Switch Type : Micro, SDPT, DPDT Form : 1 NO+1NC / 2NO+2NC Rating : 5 Amp, 230 VAC OR 24 VDC Enclosure : W-Proof IP65 / Ex-Proof Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

NRG GLOBAL offer a high quality Tank Mounted View Glass to our customers. These are aesthetically designed and precision-engineered for their higher performance and durable work life. In addition to this, all these Tank Mounted View Glasses are rigidly checked on various quality parameters to deliver a flawless range in the market. Moreover, clients can get the offered assortment from us at very affordable prices and within given span of time. Features: Long working life High efficiency Light in weight Optimum quality Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: CORUGATED BOX

NRG GLOBALDOMESTIC WATER METER SPECIFICATIONS (15MM, 20MM AND 25MM SIZES) 1.1 GENERAL LAYOUT The complete water meter is to consist of (5) components:  Above ground extruded water meter box and extended lid with slider.  A water meter (Plastic bodied 15mm, 20mm and 25mm) class C volumetric rotary piston liquid sealed register) with unique meter serial number where first two digits indicate year of manufacture Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: CORUGATED BOX
