Description

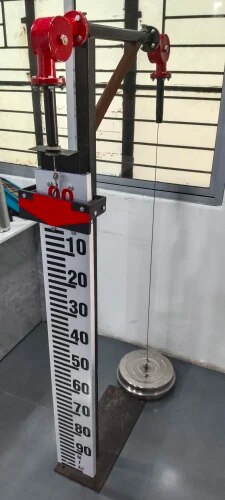

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanks Direct Indication The Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’. Gauge Classification Measuring Range : Up to 40 meters. For more than 40 meters please consult factory. Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12” Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numerical Least Count : 10 MM Maximum Temperature : 80°C (PP) / 300°C (SS) Maximum Pressure : 10 KG/CM2 Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring) Installation : Grounded Level Tank / Underground Tank (sump) / Overhead Tank Specific Gravity of Fluid : 0.75 TO 2.0 Connecting Pipe : Carbon Steel Powder Coated Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING
