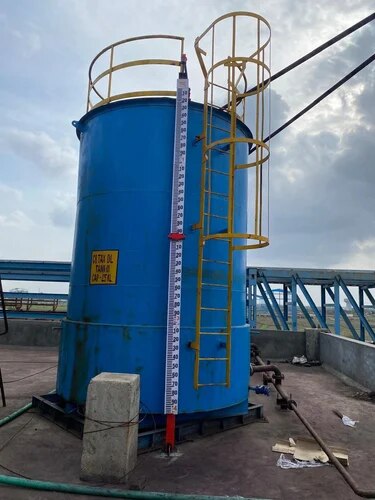

NRG GLOBAL MAKE Float & Board type level gauge is a weighing liquid level measuring system applicable for non-pressurized storage tanks/vessels. It is basically a balanced counterweight system with an arrow shaped pointer which smoothen the indication process. It is suitable for most liquid application media whose specific gravity is ≥ 0.8. Additionally, it effectively works in the phenomena of turbulence by ensuring stability using guided rope assembly with an anchor.
Installation available for Ground Level Tank, Overhead Level Tank and Underground Level Tank.
Wide Range Tank Height: Guided (up to 20m), Non-Guided (up to 8m)
Float Ø 280mm × 80mm (SS 316 with Tested Pressure 2kg/cm²)
Specific Gravity ≥ 0.8
Application Temperature Range : Up to 100° C
Adjustable Horizontal Pipe (500 to 1000 mm)
Wetted Parts : SS 316
Weatherproof Scale Board (SS 304 & Pure Polyester Powder Coated Aluminum)
Process Connection: Flanges
Radium Visibility from longer Distance
Additional Information:
Production Capacity: 100
Delivery Time: EX STOCK
Packaging Details: EXPORT WORTHY PACKING
