Product Description :
Sight Flow indicators are commonly used in pipelines across industries to observe flow.

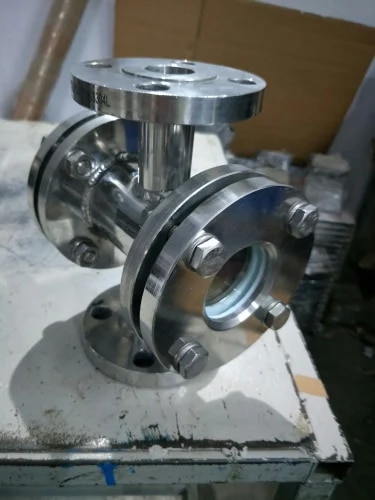

Double Window Type Sight Flow Indicators provide durable, quick and an economical way to verify the flow of liquids through industrial process lines. They are used in process lines having high pressure and temperature conditions and so are made from cast construction and fabricated design, to meet an industrial requirement of various applications and contain two toughened glasses mounted opposite to each other, for better visibility.
Double window type sight flow Indicator are available with various thickness and diameter of glass to suit various applications and industries like pharmaceutical, chemical, petroleum etc.
Double window type sight flow indicator is very easy to maintain, since it requires only replacement of glass without dismantling the whole sight glass assembly from process line.
Specifications :
Design Standard : ASME B16.34
Flange to Flange Distance : As per ASME B16.10 / DIN EN 558-I
End Connections : ASME B 16.5, 150#, BS 10 Table D/E/F/H PN 6 / 10 / 16, DIN / JIS / IS Standards
Size Range : 1” (DN 25) to 6” (DN 150)
Pressure rating of Valve : 150#, PN10, PN16
