Description

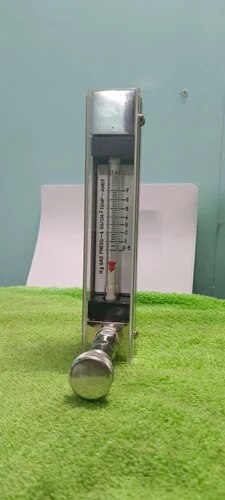

NRG GLOBAL INSTRUMENTS MAKE PURGE GLASS TUBE ROTAMETERSalient Features · Economical · Compact · Panel/Side Mounting · Good Accuracy · Ease of Maintenance APPLICATIONS · Accurate Level Measurement · Purging for corrosive fluids · Continuous Lubrication (Bearings) · Density Measurement · Gas Analysers (Sample Delivery) · Fluid : An transparent liquids and gases · Maximum Pressure : 12 Kg/cm3 · Maximum Temperature : 100°C · Flow Rate : Upto 300 LPM for Air & 5 LPM for Water Standard (Higher flow rates on request) · Accuracy : 5% FSD Std (other on request) · Connections (Inlet & Outlet) : ⅛*,¼*½*NPT & BSP Standard, (Other sizes and flanged connections on request) MATERIAL · Material Tube : Borosilicate Glass · Body of Rotameter : 304SS / 316SS/Brass Plated / Carbon Steel plated · Body of DP Regulator : Die Cast Aluminum / 304 SS / 316 SS (Others on request) · Connections : 304 SS / 316 SS /Brass plated · Inter connecting Tube for Rotameter and DP regulator : 304SS / 316SS / Copper plated · Needle valve : 304 / 316SS · Packing : Teflon / neoprene
