Description
Product details

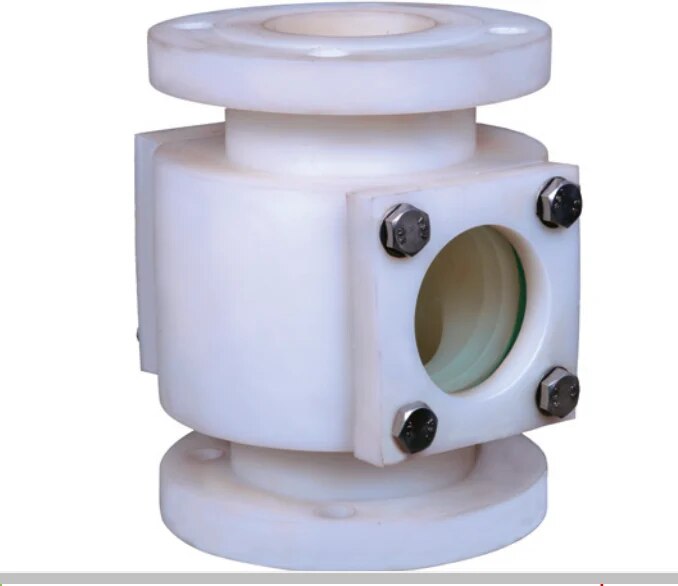

NRG GLOBAL manufactures and exporters of Double Window Type Sight Glass (Sight Flow Indicator) in Cast Construction & Fabricated design to meet an industrial requirement of various applications to inspect the process fluid. In Double Window type Sight Flow Indicator (Sight Glass) Contains Two Toughened Glasses Mounted opposite to each other. NRG GLOBAL Double Window Type Sight Glass (Sight Flow Indicator) available with various thickness and diameter of glass to suit various applications respects to fluid pressure and temperature. Double Window Type Sight Glass (Sight Flow Indicator) is very easy to replace glass without dismantling the whole Sight Glass assembly from process line. Double window type Sight Glass gives better performance in application of Higher Pressure & Temperature. Wide range of Toughen Glasses available to suit industrial pressure. All toughen glasses standard as per DIN 7080. Sight Glass body material available ASTM A 216 GR. WCB (Cast Carbon Steel), ASTM A 351 GR. CF 8 (Stainless Steel 304), ASTM A 351 GR. CF 8M (Stainless Steel 316), ASTM A 351 GR. CF 3 (Stainless Steel 304L), ASTM A 351 GR. CF 3M (Stainless Steel 316L), ASTM A 351 GR. CN 7M (Alloy 20) and others on request. Body Hydraulic Test Pressure design up to 17 Kg./Cm2. We also manufacturing Jacketed Type Sight Glass & Steam Jacketed Double Window Type Sight Flow Indicator Investment Casting (I.C.) Body Stainless Steel 304/316/304L/316L/Alloy 20 Sight Glass Flow Indicator Sight Flow Indicator Manufacturing Range - 1"(DN 25) to 12" (DN 300)
