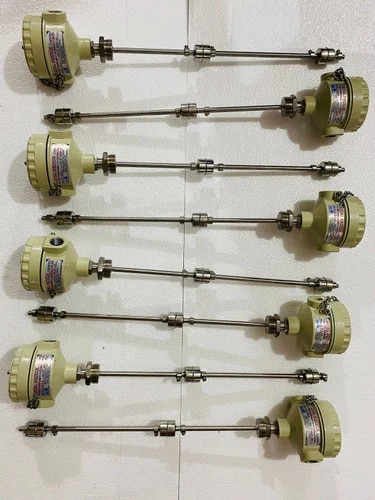

Magnetic Float Level Switch

Phone Number

08048032280

Please keep 0 before dialling the number.

Email Address salesnrgglobal@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 986/20/1, Diamond Park Gate No. 2, G.I.D.C Industrial Estate, GIDC, Makarpura, Vadodara-390010, Gujarat, India

Vadodara, India, 390010

Description

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : TOP MOUNTED FLOAT TYPE NAME OF THE FLUID : LIQUID Temperature : 100 deg C Pressure : VACCUME TO 5 kg/cm2 g Sp Gr / Density : 0.3 – 2.0 Viscosity : 0.7-10 Cp WETTED PARTS (MOC) : SS304 FLOAT : 2 NOS SS316 OF 28 MM DIA FLOAT STOPPER : SS304 STEM PIPE : SS304 OF 8 MM dia SIZE : ½” BSP m CONNECTION MOC : SS304 screwed end ENCLOSURE / HOUSING : NA SWITCH : Glass encapsulated Hermetically Sealed Reed Contact SWITCH CONTACT : NO TO NC POTENTIAL FREE CONATCT 24 VDC CABLE ENRTY : NA STEM LENGTH : 165 MM HIGH LEVEL FROM TOP : 105 MM LOW LEVEL FROM TOP : 140 MM ACCESSORIES : NA QTY : 1 NOS
