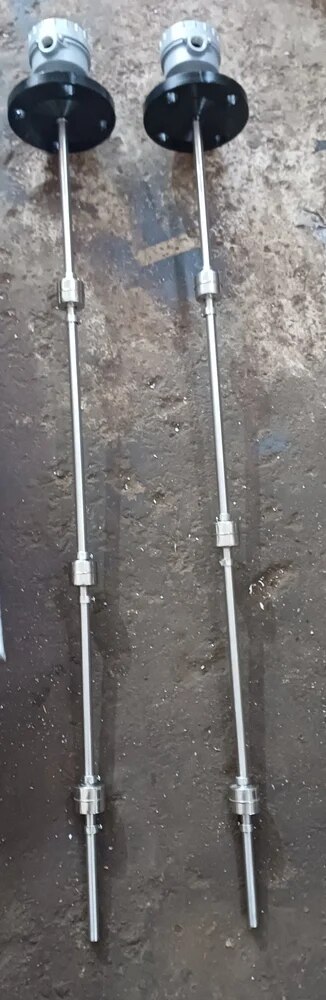

Magnetic Float Level Sensor Switch

Phone Number

08048032280

Please keep 0 before dialling the number.

Email Address salesnrgglobal@gmail.com

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website

Address 986/20/1, Diamond Park Gate No. 2, G.I.D.C Industrial Estate, GIDC, Makarpura, Vadodara-390010, Gujarat, India

Vadodara, India, 390010

Description

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : MAGETIC FLOAT TYPE NAME OF THE FLUID : LIQUID Temperature : Max 100 deg C Pressure : 2-3 kg/cm2 Sp Gr / Density : 0.3 – 2.0 Viscosity : 0.7-10 Cp WETTED PARTS (MOC) : SS 304 FLOAT : 2 NOS SS 304 OF 28 MM DIA FLOAT STOPPER : SS 304 STEM PIPE : SS 316 OF 8 MM dia CONNECTION SIZE : 1” ASA 150 # RF CONNECTION MOC : SS 304 FLANGE ENCLOSURE / HOUSING : ALLUMINIUM DIE CAST WEATHERPROOF SWITCH : IMPORTED REED SWITCH SWITCH CONTACT : NO TO NC POTENTIAL FREE CONATCT 24 VDC CABLE ENTRY : ½” ET STEM LENGTH : 500 MM HIGH LEVEL FROM TOP : 200 MM
