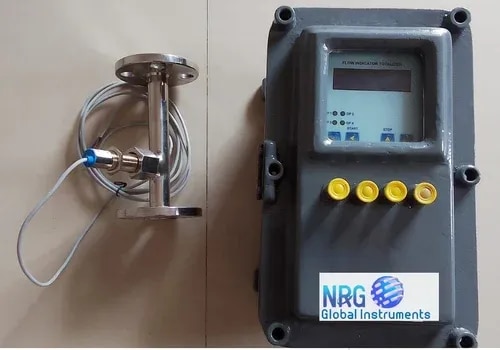

Digital Turbine Flow Meter

NRG GLOBAL MAKE Turbine flow meter is used for volumetric total flow and/or flow rate measurement and has a relatively simple working principle. As fluid flows through the turbine meter, it impinges upon turbine blades that are free to rotate about an axis along the center line of the turbine housing. The angular (rotational) velocity of the turbine rotor is directly proportional to the fluid velocity flowing through the turbine. The resulting output is taken by an electrical pickoff(s) mounted on the flow meter body.

2. Product Features

1. Highly sensitive to low flow rates

2. Very accurate over its entire flow range

3. Technical Datasheet

3.1 Material of Construction

Enclosure : S.S-304/S.S-316

Rotor : S.S-304

Shaft : Hard Stainless Steel-316 with carbon bush

Accuracy (standard installation position): +/- 0.5 OR 1% FSD

Repeatability: 0.1%

Maximum working Pressure : 6 MPa

Fluid & Ambient Temperature : -20º C to 120º C

Connection : Threaded (M/F) OR Flanged
