Top Level Switch,Pressure Gauge,Flow Meter PRODUCTS in Vadodara at best prices

Rotameter

Mwtaltube Rotameter Manufacturer

Nrg make Rotameter

Rotameter

Glass Tube Rotameter Manufacturer

NRG MAKE GLASS TUBE ROTAMETER

Rotameter

Acrylic Body Rotameter Manufacturer

NRG MAKE ROTAMETER

Rotameter

Variable Area Rotameters

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : GLASS TUBE ROTAMETER Name of the Fluid : OIL Temperature : 40 Pressure : 3 KG/CM2 Specific Gravity / Density : 0.85 Viscosity : 1.0 CP M. RANGE : 0 – 5 LPM MOC (WETTEC PARTS) : SS 316 End Connection : SS 316 FLANGE END Process Connection : ½” ASA 150 # RF Float Material : SS316 Float Retainer : P.P Tube Material : GERMAN TAPER BOROSILICATE GLASS TUBE Packing/O-Ring Material : PTFE GLAND : CS BODY / COVER : MS POWDER COATED Scale : ACRYLIC ENGRAVED Scale Length : 50 – 250 mm Approx. Rangebility : 10:1 Scale Marking : In LPM Accuracy : ±2% F.S.D. Inlet Conn. Orientation : BOTTOM Outlet Conn. Orientation : TOP FASTNERS : S.S.304 F/F HIEGHT : 500 MM

Rotameter

Glass Tube Rotameters Suppliers In Dahej

Established in the year 2020, NRG GLOBAL is an accomplished manufacturer, trader and exporter of a wide range of measuring instrument. Our aim from day one has been to offer world-class products to customers at very reasonable prices. This has driven us to follow the latest technical advancements in the industry and enhance our product range by incorporating the same into our offerings.The company was founded and has grown under the great leadership of our owner Mr. RIKESH BHAGAT who has along with our top-management team has dedicated himself to the growth and well-being of the organization. With comprehensive domain expertise and experience, he provides us with valuable direction and guidance that has helped us in being a leader in this industry.We believe in achieving overall excellence in all our functions.

Rotameter

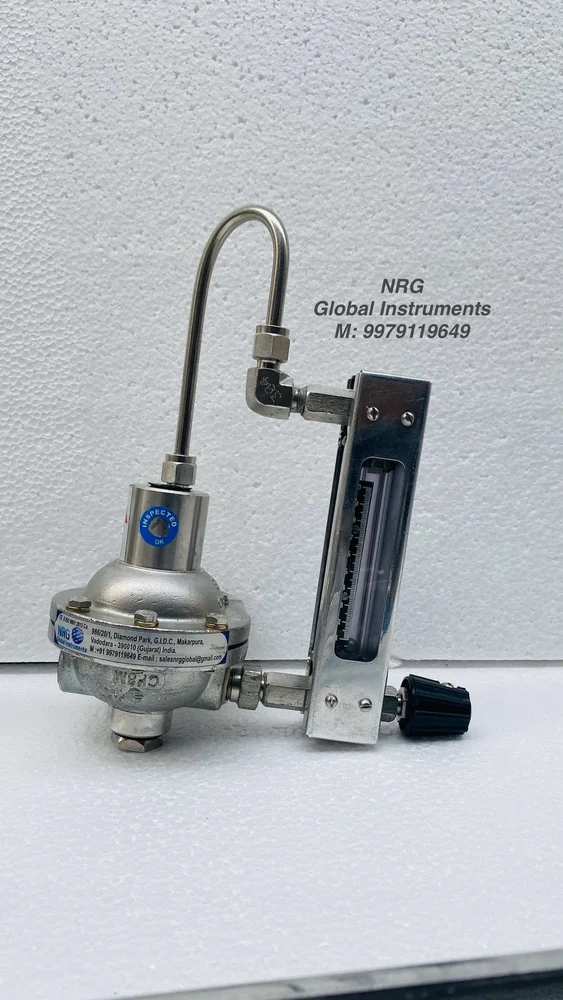

Purge Rotameter With Dp Regulator

Nrg global instruments nake Dp purge regulator Rotameter

Rotameter

Digital Metal Tube Rotameters

“NRG” Make Metal Variable Area Type Flow Meter are designed to measure flow rate of liquids and gases under critical conditions. It consists of a tapered metal tube, an indicating assembly and float. A magnet encapsulated in float couples with rotating magnets are connected to an indicating pointer. Henceforth, the movement of the float is accurately indicated in terms of flowrate. They are intended for application where high pressure, temperature or corrosive conditions preclude the use of conventional glass tube. These are all Metal Variable Area Type Flow meter design to measure flow rate of Liquids & Gases under critical conditions. It consists of a tapered metal tube, an indicating assembly and a float. A magnet encapsulates in float couples with rotating magnets connected to an indicating pointer, thus the movement of the float, is accurately indicated in terms of flow rate. 2. Working Principle When fluid or gas flows through a taper tube containing a float, a pressure difference of P1 and P2 is created between upper and lower side of the float. The float moves upwards by a force obtained by multiplying the pressure differential by the maximum cross-sectional area of the float. Additional Information: Item Code: MTRM009 Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING
