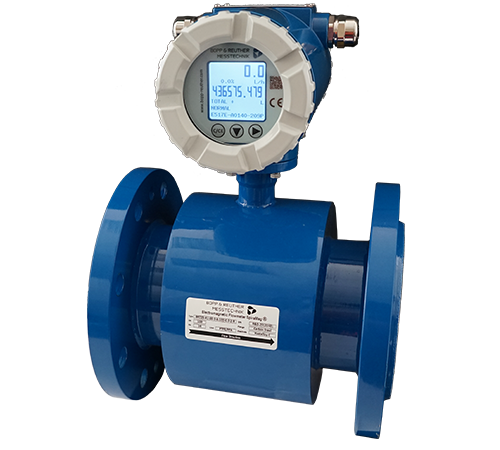

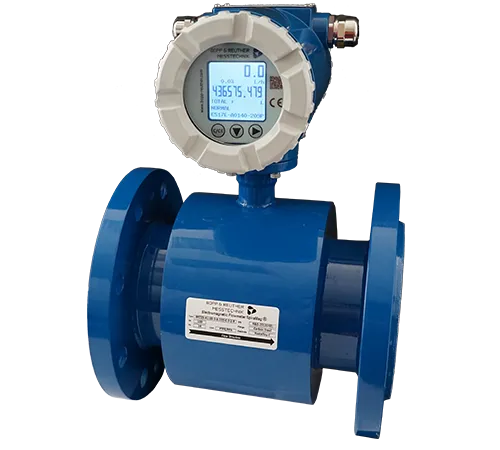

An Electromagnetic Flowmeter (EMF) is a device used to measure the flow rate of conductive fluids in a pipe, based on the principles of Faraday's Law of Electromagnetic Induction. It is commonly used in applications involving water, wastewater, chemicals, slurries, and other conductive liquids.
Working Principle
Faraday’s Law states that when a conductive fluid flows through a magnetic field, an electromotive force (voltage) is generated, which is proportional to the fluid's velocity. In an electromagnetic flowmeter:
- Magnetic Field: A magnetic field is generated by coils on either side of the flow tube.
- Voltage Generation: As the conductive fluid flows through this magnetic field, it induces a voltage that is proportional to its flow rate.
- Measurement of Voltage: Electrodes positioned inside the flow tube measure this voltage.
- Calculation of Flow Rate: The measured voltage is converted into a flow rate by the flowmeter electronics.
