'oil level sensors'

Oil level sensors work the same way that traditional float switches work, except for they work with oil instead of water. Oil level sensors use magnetic reed switches, that are hermitically sealed in a stainless steel or plastic stem, to measure oil levels and automatically turn on or off oil pumps. The reed switch moves up and down the stem to open or break circuits (turn on or off oil pumps) according to oil levels rising and falling. Once the oil in the tank reaches its lowest predetermined point (closed position) the reed switch will create a circuit and automatically send a signal to your pump to start filling your tank up with oil again. The magnetic reed switch will then open the circuit back up again (open position) once the oil level has reached maximum fill capacity. Additional Information: Production Capacity: 100 Delivery Time: week Packaging Details: export worthy

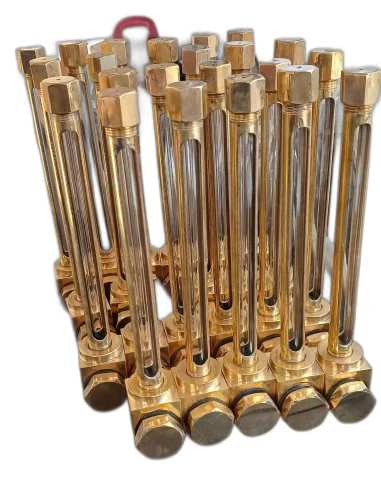

NRG GLOBAL we are engaged in manufacturing and supplying a wide range of Constant Oil Level Indicator. These are widely used in the gear box to see the lubricating oil levels in the concerned equipment. We use fine quality material and latest technology in compliance with the international quality standards. Additionally, these are available in market at economical prices. Features: moc: Alluminium /carbon steel/satin less steel (ss 304/316). conn : 1/4' bsp (m)

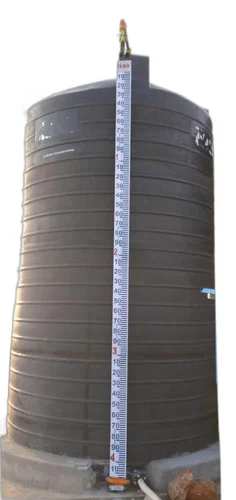

NRG MAKE FLOAT & BOARD LEVEL GAUGE Mainly Use for Storage tank of Oil, F.D. Fire/Dm Water Tank. Lube Oil. HCL Acid Alka;ic, etc., Vapour seal for Special application like HCL,N2. Pirged Tank. Diluted alkalis etc.... Suitable for Tail & Large Tank non pressirized and non hazardous chemical Storage Tank. A large Self contered Float follows the Liquid Level in this gauge. A rope Fitted with a float moves over a pair of dust free puliey. Level is Indicated by a Pointer moves on a 150 mm Width Aluminium Powder Coated Scale. H eight 1 mtr to 2 5 mtr and Other on request Available in Polypropylene Additional Information: Item Code: 9026 Production Capacity: 1000 Delivery Time: 1 WEEK Packaging Details: EXPORTWERTHY PACKING

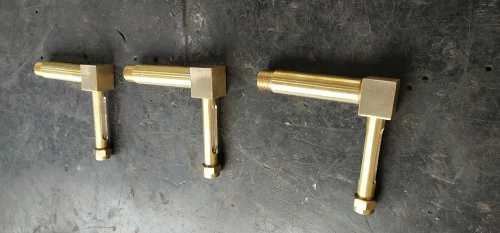

NRG MAKE OIL LEVEL INDICATOR This 'L' shape oil level indicator are available in Brass, MS with chrome plating and transparent body This oil level indicators overcome all limitation of monitoring oil level within gearbox with dip stick/oil sight window. Transparent body indicators provides a clear on line indication of oil level in gear boxes. KNOBE Type: . Compressors, Gear Box, Pharma Machinery SPMS Available in 1/4" to 2" Sizes - Materials in Aluminum S.S Ms. L-Shape:- These are easy to install and dismantled and require no maintenance in addition to this Products are higher on performance and robust & durable in nature thread connection 1/8" to 1/2", Length up to 300 mm.

Nrg make L shape oil level indicator

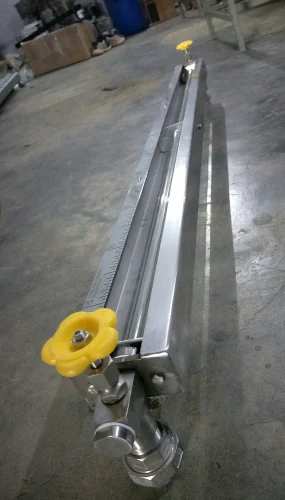

NRG global make simple & easy installation and Direct reading in pressurized tank Wetted Parts in M.S., S.S.304, S.S.316, Polypropylene, Aluminium, M.S.+PTFE, M.S. + P.P Lined, M.S. With Rubber Lined. Isolation Valve & Drain Valve in request Max 3000 mm Length in Single Piece Glass Protected channel available in M.S. S.S.304, S.S.316, FRP Hyd Test Up to 10 Kg/Cm2 Magnetized Float Moves with Level In Extemal Chamber and Magnetic Follower Capsule OR Roller OR Ball Indicates the Liquid Level Externally. Wetted Parts in S.S.304, S.S.316, Polypropylene, PTFE Lined Mainly Use in Furnace Oil, Benzene, Toluene, Ethylene, Alcohol, Acid, Liquid, Gases Like NH3, LPG, SO2, PLC3, etc. High & Low Level Switch, Level Transmitter 4-20 mA, on request. Height up to 5 Mtr Additional Information: Production Capacity: 100 Delivery Time: 1 WEEK Packaging Details: EXPORTWOTHY PACKING

NRG MAKE FLOAT & BOARD LEVEL GAUGE Mainly Use for Storage tank of Oil, F.D. Fire/Dm Water Tank. Lube Oil. HCL Acid Alka;ic, etc., Vapour seal for Special application like HCL,N2. Pirged Tank. Diluted alkalis etc.... Suitable for Tail & Large Tank non pressirized and non hazardous chemical Storage Tank. A large Self contered Float follows the Liquid Level in this gauge. A rope Fitted with a float moves over a pair of dust free puliey. Level is Indicated by a Pointer moves on a 150 mm Width Aluminium Powder Coated Scale. H eight 1 mtr to 30 mtr and Other on request Available in Polypropylene Additional Information: Delivery Time: as per location

reading in pressurized tank Wetted Parts in M.S., S.S.304, S.S.316, Polypropylene, Aluminium, M.S.+PTFE, M.S. + P.P Lined, M.S. With Rubber Lined. Isolation Valve & Drain Valve in request Max 3000 mm Length in Single Piece Glass Protected channel available in M.S. S.S.304, S.S.316, FRP Hyd Test Up to 10 Kg/Cm2 Magnetized Float Moves with Level In Extemal Chamber and Magnetic Follower Capsule OR Roller OR Ball Indicates the Liquid Level Externally. Wetted Parts in S.S.304, S.S.316, Polypropylene, PTFE Lined Mainly Use in Furnace Oil, Benzene, Toluene, Ethylene, Alcohol, Acid, Liquid, Gases Like NH3, LPG, SO2, PLC3, etc. High & Low Level Switch, Level Transmitter 4-20 mA, on request. Height up to 5 Mtr Additional Information: Production Capacity: 100 Delivery Time: 1 WEEK Packaging Details: EXPORTWORTY

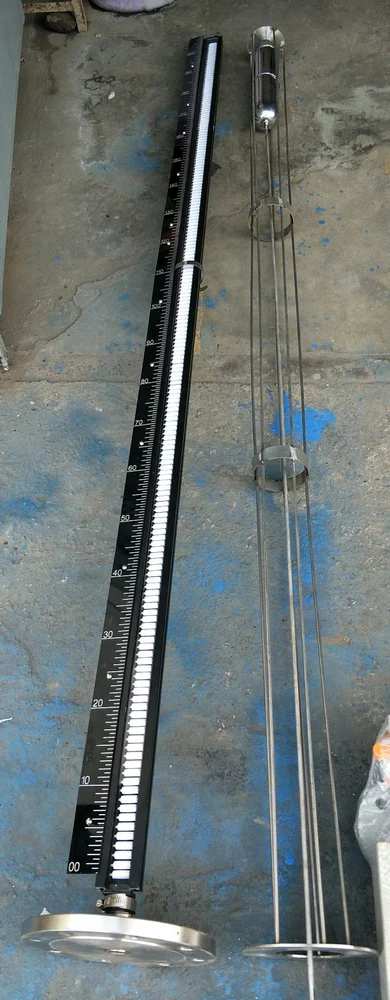

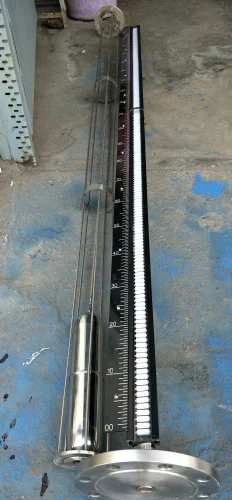

“NRG GLOBAL” Top Mounted Magnetic Gauge is mounted on top of the tank by a suitable process connection preferably 100 mm NB flange. A float designed for the liquid to be gauged is guided within a stilling well that rest on the process flange. The float is connected to a stem that has a magnet at the upper end moving in a chamber. The float along with the stem and magnet moves up and down with the changing in liquid levels in the vessel. On the dry side of the chamber is the Magnetic Follower Display assembly comprising of a Red & Black PP magnetic capsule housed in a glass tube filled with water. As the float tracks the liquid level the magnet inside the float magnetically couples the Red & Black PP capsule and the capsule will remain magnetically coupled and the level can be read off directly TECHNICAL FEATURES •Simple and robust design. •Pressure and gas proof separation of chamber and display. •Measuring and indication of the level of aggressive, combustible, toxic, hot agitated and contaminated liquids. •Magnetic Follower display without external power. •Available for applications in all areas of industry through use of highly corrosion resistant materials •Designs for a pressure range from full vacuum to 30 bar •Designs for a temperature range from 100C to 250O C •Food industry design. •Interface measurement. OPTIONS: “NRG GLOBAL” Magnetic Switches are used to monitor certain limits of the level. The obtained binary signal can be forwarded to trigger alarms or other controls. • “NRG GLOBAL” Level Sensors are used to transmit the level in conjunction with a “NRG GLOBAL” control unit. This control unit converts the resistance value of the level sensor to a proportional analogue signal Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PAKING
