'oil level indicators'

NRG MAKE OIL LEVEL INDICATOR This 'L' shape oil level indicator are available in Brass, MS with chrome plating and transparent body This oil level indicators overcome all limitation of monitoring oil level within gearbox with dip stick/oil sight window. Transparent body indicators provides a clear on line indication of oil level in gear boxes. KNOBE Type: . Compressors, Gear Box, Pharma Machinery SPMS Available in 1/4" to 2" Sizes - Materials in Aluminum S.S Ms. L-Shape:- These are easy to install and dismantled and require no maintenance in addition to this Products are higher on performance and robust & durable in nature thread connection 1/8" to 1/2", Length up to 300 mm.

NRG GLOBAL we are engaged in manufacturing and supplying a wide range of Constant Oil Level Indicator. These are widely used in the gear box to see the lubricating oil levels in the concerned equipment. We use fine quality material and latest technology in compliance with the international quality standards. Additionally, these are available in market at economical prices. Features: moc: Alluminium /carbon steel/satin less steel (ss 304/316). conn : 1/4' bsp (m)

Tank Level Indicators for Construction

Oil level sensors work the same way that traditional float switches work, except for they work with oil instead of water. Oil level sensors use magnetic reed switches, that are hermitically sealed in a stainless steel or plastic stem, to measure oil levels and automatically turn on or off oil pumps. The reed switch moves up and down the stem to open or break circuits (turn on or off oil pumps) according to oil levels rising and falling. Once the oil in the tank reaches its lowest predetermined point (closed position) the reed switch will create a circuit and automatically send a signal to your pump to start filling your tank up with oil again. The magnetic reed switch will then open the circuit back up again (open position) once the oil level has reached maximum fill capacity. Additional Information: Production Capacity: 100 Delivery Time: week Packaging Details: export worthy

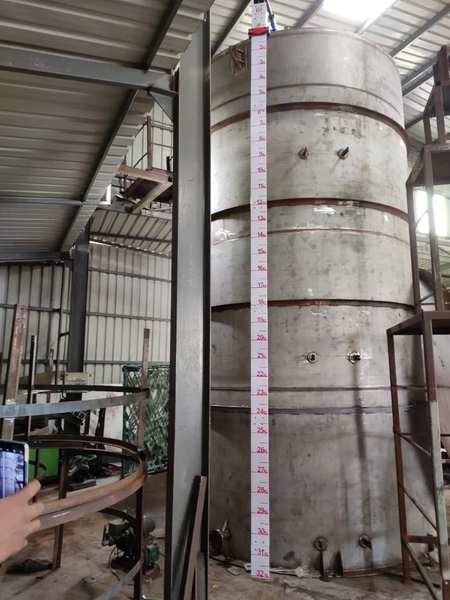

NRG MAKE FLOAT & BOARD LEVEL GAUGE Mainly Use for Storage tank of Oil, F.D. Fire/Dm Water Tank. Lube Oil. HCL Acid Alka;ic, etc., Vapour seal for Special application like HCL,N2. Pirged Tank. Diluted alkalis etc.... Suitable for Tail & Large Tank non pressirized and non hazardous chemical Storage Tank. A large Self contered Float follows the Liquid Level in this gauge. A rope Fitted with a float moves over a pair of dust free puliey. Level is Indicated by a Pointer moves on a 150 mm Width Aluminium Powder Coated Scale. H eight 1 mtr to 2 5 mtr and Other on request Available in Polypropylene Additional Information: Item Code: 9026 Production Capacity: 1000 Delivery Time: 1 WEEK Packaging Details: EXPORTWERTHY PACKING

Nrg make L shape oil level indicator

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanks Direct Indication The Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’. Gauge Classification Measuring Range : Up to 40 meters. For more than 40 meters please consult factory. Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12” Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numerical Least Count : 10 MM Maximum Temperature : 80°C (PP) / 300°C (SS) Maximum Pressure : 10 KG/CM2 Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring) Installation : Grounded Level Tank / Underground Tank (sump) / Overhead Tank Specific Gravity of Fluid : 0.75 TO 2.0 Connecting Pipe : Carbon Steel Powder Coated

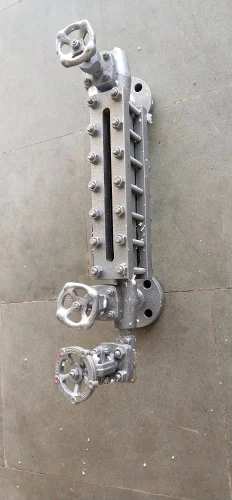

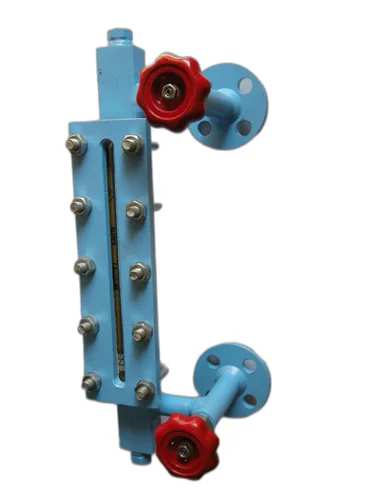

NRG offers a series of Reflex level indicators. Designed to measures the level of liquid in reactor tanks. The reflex level gauge is used for the measurement of liquid level for high pressure or high temperature or toxic liquid storage tanks. The reflex level gauge has a single prism glass mounted on one side of the chamber and uses the basic optical principles of light reflection to upgrade the expression of the liquid level in the process tank. In brief, when the light strikes the area of glass covered by the liquid is allow to pass to the interior of the gauge so that the area appears dark (black). Thus the area which is vacant appears to be (silver) and can be distinguished the difference from several feet away. We are the manufacturer of the reflex level gauge in Gujarat India. Specifications Application: Liquids Liquid Chamber (Wetted Part): MS, ASTM A105, SS 304, SS 316, PP Cover Plate (Non Wetted Part): MS, ASTM A105, SS 304, SS 316, PP Design Temperature: Up to 300°C Design Pressure: Up to 70 Kg/cm² C/C Distance: Up to 3000 mm Connection: Flanged to ASA, BS, DIN, Socket Weld, Butt Weld Applications ► High-pressure vessels ► Pressure Vessle ► Boiler control ► Acid waste transportation ► Marine life science tank ► Spray wash liquid soap ► Remediation vacuum tank ► Chemical distributor tank Available Options ► Reflex level indicator with 2 no’s isolation valve and 1 no Drain valve ► Reflex level indicator without isolation and drain valve ► Reflex level indicator with vertical connection ► Reflex level indicator with spring loaded push valve and drain valve. ► Reflex level indicator with frost free arrangement ► Reflex level indicator with high & low level switch

NRG offers a series of Reflex level indicators. Designed to measures the level of liquid in reactor tanks. The reflex level gauge is used for the measurement of liquid level for high pressure or high temperature or toxic liquid storage tanks. The reflex level gauge has a single prism glass mounted on one side of the chamber and uses the basic optical principles of light reflection to upgrade the expression of the liquid level in the process tank. In brief, when the light strikes the area of glass covered by the liquid is allow to pass to the interior of the gauge so that the area appears dark (black). Thus the area which is vacant appears to be (silver) and can be distinguished the difference from several feet away. We are the manufacturer of the reflex level gauge in Gujarat India. Specifications Application: Liquids Liquid Chamber (Wetted Part): MS, ASTM A105, SS 304, SS 316, PP Cover Plate (Non Wetted Part): MS, ASTM A105, SS 304, SS 316, PP Design Temperature: Up to 300°C Design Pressure: Up to 70 Kg/cm² C/C Distance: Up to 3000 mm Connection: Flanged to ASA, BS, DIN, Socket Weld, Butt Weld Applications ► High-pressure vessels ► Pressure Vessle ► Boiler control ► Acid waste transportation ► Marine life science tank ► Spray wash liquid soap ► Remediation vacuum tank ► Chemical distributor tank Available Options ► Reflex level indicator with 2 no’s isolation valve and 1 no Drain valve ► Reflex level indicator without isolation and drain valve ► Reflex level indicator with vertical connection ► Reflex level indicator with spring loaded push valve and drain valve. ► Reflex level indicator with frost free arrangement ► Reflex level indicator with high & low level switch
