'liquid level controls'

“NRG GLOBAL” Top Mounted Magnetic Gauge is mounted on top of the tank by a suitable process connection preferably 100 mm NB flange. A float designed for the liquid to be gauged is guided within a stilling well that rest on the process flange. The float is connected to a stem that has a magnet at the upper end moving in a chamber. The float along with the stem and magnet moves up and down with the changing in liquid levels in the vessel. On the dry side of the chamber is the Magnetic Follower Display assembly comprising of a Red & Black PP magnetic capsule housed in a glass tube filled with water. As the float tracks the liquid level the magnet inside the float magnetically couples the Red & Black PP capsule and the capsule will remain magnetically coupled and the level can be read off directly TECHNICAL FEATURES •Simple and robust design. •Pressure and gas proof separation of chamber and display. •Measuring and indication of the level of aggressive, combustible, toxic, hot agitated and contaminated liquids. •Magnetic Follower display without external power. •Available for applications in all areas of industry through use of highly corrosion resistant materials •Designs for a pressure range from full vacuum to 30 bar •Designs for a temperature range from 100C to 250O C •Food industry design. •Interface measurement. OPTIONS: “NRG GLOBAL” Magnetic Switches are used to monitor certain limits of the level. The obtained binary signal can be forwarded to trigger alarms or other controls. • “NRG GLOBAL” Level Sensors are used to transmit the level in conjunction with a “NRG GLOBAL” control unit. This control unit converts the resistance value of the level sensor to a proportional analogue signal Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PAKING

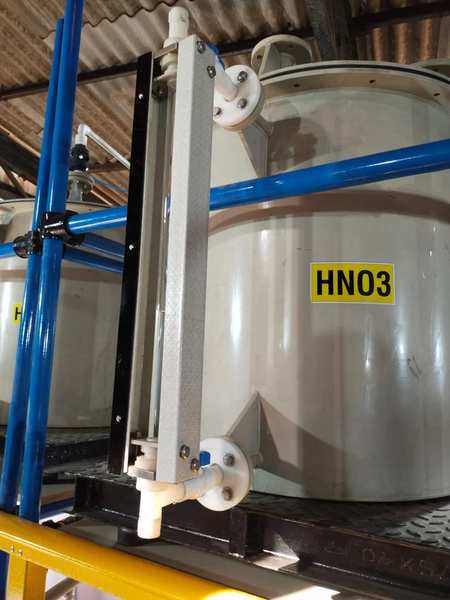

NRG GLOBAL make Tubular Level Gauge are designed for visual liquid level observation. Liquid observation is common in process industry. Tubular Level Gauge is the simplest and reliable form of level indication in atmospheric or pressurized tank applications. Tubular Level Gauges can be used to visualize the level in low or medium pressure application. NRG GLOBAL offers economical and reliable level gauges for direct reading of level in tanks / vessels. This Tubular Level Gauge consist C channel frame or tie rods, Glass tube, End blocks, and isolation valves, drain valve, Vent plug, and packing material. These level indicators are mounted on the side of the tank or vessel. These Tubular Level Indicators are mounted parallel along the tank or vessel. The level in the transparent glass tube change as the process level fluctuates. Level changes accordingly to the process level fluctuation and gives local liquid indication. Changes are directly proportional. When liquid level in tank or vessel rises level in tube rises. When liquid level in tank or vessel decreases level in tube decreases. The level of liquid inside the tank or vessel and level of liquid inside the glass tube are same. Scale mounted on C Frame of Tubular Level Gauge indicates liquid level. Additional Information: Item Code: TLI-PP Production Capacity: 00 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

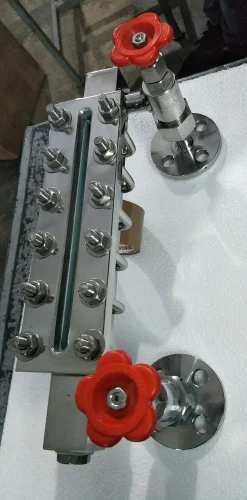

NRG MAKE Reflex & Transparent Type Level Indicator : We are one of the foremost manufacturers and suppliers of a comprehensive assortment of Reflex & Transparent Type Level Indicator. Our range is appreciated for higher degree of accuracy, precision & compact design, durability and longer service life. Reflex Type: Reflex Type Level Indicator will have one side reflex glass and cover plate with slotted window, it is very robust & reliable & used for direct indication of the liquid. It is suitable for high pressure & temperature. MOC - CS/A 105/SS -304/ SS 316 Range - 300 MM - 2500 MM (in Multiple Segments) Class - Indian / Imported, Toughened, option - 1) Anti frost for low Temperature application. Heating Jacket Isolation valve Additional Information: Delivery Time: 15 DAYS Packaging Details: EXPORT WORTHY PACKING

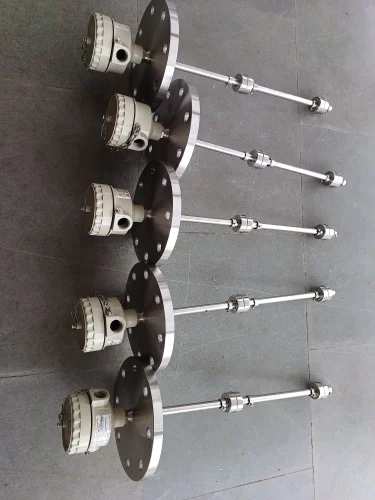

NRG MAKE Top Mounted Magnetic Level Switch or Liquid Level Switch moves up and down on probe immersed in a liquid. The float energizes the hermetically sealed sensors, which change from NO to NC or otherwise as the float - passes them. Details Require for Quotation: Height Of The Tank Or Probe Length Required No. Of Points To Be Controlled With Respect To Top Flange Material Of Construction Of Wetted Parts Top Nozzle Detail Which Is Welded On Tank On Which You Are Intending To Mount Level Switch Housing Enclosure (Flame Proof/ Weather Proof)

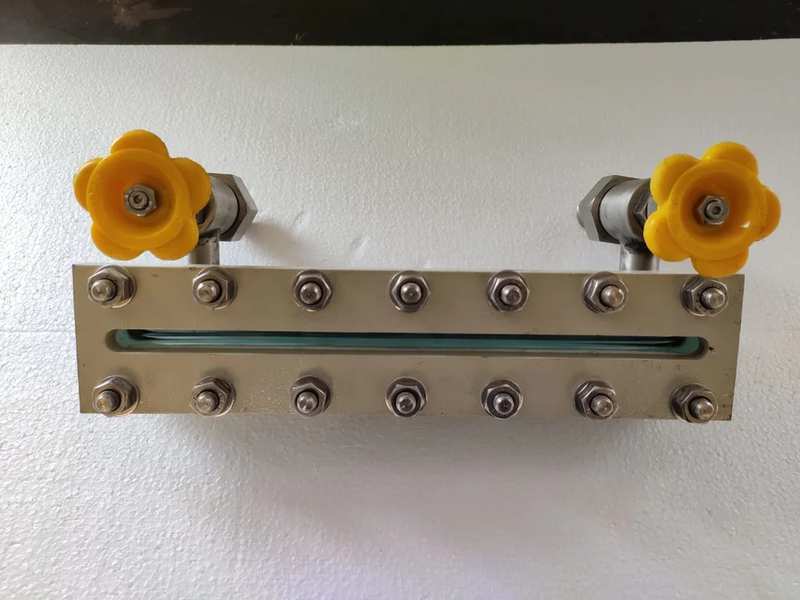

NRGG LOBAL MAKE Reflex Level Gauge use the R-form sight glasses. One side surface of Reflex Glass to use flat glass has several grooves for reflecting prism. The principle of the Reflex Glass is based on the difference in the refractive indices of liquid and gas or in particular of water and steam. Liquid level shows conspicuously dark hard colour for liquid space and light white colour for empty space. These Reflex series are not used with a mica shield.Reflex Level Gauge The Reflex Gauge is assembled firmly with gasket, reflex glass, cushion gasket and gauge cover on the body by U-bolts. Reflex Liquid Level Gauges, designed and built for a wide range of high temperature and high pressure applications.

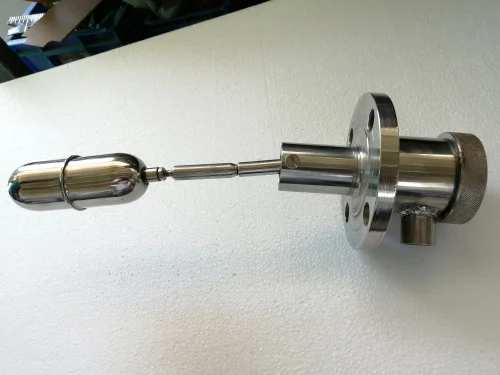

NRG MAKE SIDE MOUNTED MAGENTIC LEVEL SWITCH Suitable for fitting into tank or process vessels for controlling liquid level for preventing tank overflow Hooter & Alarm Operate To control dry pump running Miniumum 50 NB Flange ro any Size (Square Flange on request) Housing : Alumunium Die Cast weather proof, Flame Proof High Temperature on request

Float level switches All float operated liquid level controls operate on the basic buoyancy principle which states "the buoyancy force action on an object is equal to the mass of liquid displaced by the object." As a result, floats ride on the liquid surface partially submerged and move the same distance the liquid level moves. Because of this, they are normally used for narrow level differential applications such as high level alarm or low level alarm.

“NRG GLOBAL” make Magnetic Level Gauge provides clear, high clarity indication of liquid level. Magnetic Level Gauges are principally designed as an alternative to glass level gauges. NRG GLOBAL offers Magnetic Level Gauges in top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic Level Gauge is consists of three major components: Float Chamber, Float and Indicator System. Magnetic Level Gauge operates on the principle of magnetic field coupling to provide Fluid Level Information. Float chamber is typically constructed with nonmagnetic pipe having process Connections that matches to the vessel connections. Float size and weight is determined by the process fluid, pressure, temperature and the specific gravity of the process fluid. Float contains magnets to provide 360 ̊magnetic flux field.

We are known as the leading manufacturer, importer, exporter and supplier of a comprehensive assortment of Liquid Level Switches. Used for used for Pump protection & Cooling Circuit protection, made up by utilizing top quality of basic material under the observation of the proficient team of workers, these Flow switches are manufactured at our highly developed Additional Information: Production Capacity: 100 Delivery Time: EX STOK Packaging Details: EXPORT WORTHY PAKING
