Float & Board type level gauge is a weighing liquid level measuring system applicable for non-pressurized storage tanks/vessels. It is basically a balanced counterweight system with an arrow shaped pointer which smoothen the indication process. It is suitable for most liquid application media whose specific gravity is ≥ 0.8. Additionally, it effectively works in the phenomena of turbulence by ensuring stability using guided rope assembly with an anchor. Installation available for Ground Level Tank, Overhead Level Tank and Underground Level Tank. Wide Range Tank Height: Guided (up to 20m), Non-Guided (up to 8m) Float Ø 280mm × 80mm (SS 316 with Tested Pressure 2kg/cm²) Specific Gravity ≥ 0.8 Application Temperature Range : Up to 100° C Adjustable Horizontal Pipe (500 to 1000 mm) Wetted Parts : SS 316 Weatherproof Scale Board (SS 304 & Pure Polyester Powder Coated Aluminum) Process Connection: Flanges Radium Visibility from longer Distance Additional Information: Item Code: NRG-FBLI-SS_108 Delivery Time: week Packaging Details: Export worthy packing

MAKE : NRG GLOBAL TYPE : MAGNETIC FLAPPER DEISGN MODEL : SIDE MOUNTED NAME OF THE FLUID : ORGANICS LIQUID STATE OF THE FLUID : LIQUID ONLY FLUID TYPE : TRANSPARENT / OPAQUE TEMPRATURE : 150 DEG C PRESSURE : VACCUME TO 10 KG/CM2 SPECIFIC GRAVITY : 0.79, 0.87 , 1.0, 0.90, 0.88 , 1.60 VISCOSITY ( OP / MAX) : 0.7 – 10 CP WETTED PARTS : SS316 L MAIN CHAMBER : SS316 L 2” NB SEAMLESS PIPE SCH 10 PIPE FLOAT : SS316 L MAGNETIC PROCESS CONNECTION : SS316 LFLANGE CONNECTION SIZE : DN 25 ANSI B16.5 CLASS 150 # RF TYPE OF INDICATOR : RED & WHITE COLOUR ROTATING FLAPPER DESIGN GLASS TUBE : NA PACKING : 100% PTFE SCALE : ACRYLIC ENGRAVED LEAST COUNT : 5 MM INDICATOR HOUSING PROTECTION : SS304 AIR VENT : SS316 L 1.5” BLINED FLANGE WITH 3/4” NPT-M STOP PLUG DRAIN : SS316 L 1.5” BLINED FLANGE WITH 3/4” NPT-M STOP PLUG FASTNERS : SS304 ACCURACY : 2% FSR

NRG GLOBAL manufactures and exporters of Double Window Type Sight Glass (Sight Flow Indicator) in Cast Construction & Fabricated design to meet an industrial requirement of various applications to inspect the process fluid. In Double Window type Sight Flow Indicator (Sight Glass) Contains Two Toughened Glasses Mounted opposite to each other. NRG GLOBAL Double Window Type Sight Glass (Sight Flow Indicator) available with various thickness and diameter of glass to suit various applications respects to fluid pressure and temperature. Double Window Type Sight Glass (Sight Flow Indicator) is very easy to replace glass without dismantling the whole Sight Glass assembly from process line. Double window type Sight Glass gives better performance in application of Higher Pressure & Temperature. Wide range of Toughen Glasses available to suit industrial pressure. All toughen glasses standard as per DIN 7080. Sight Glass body material available ASTM A 216 GR. WCB (Cast Carbon Steel), ASTM A 351 GR. CF 8 (Stainless Steel 304), ASTM A 351 GR. CF 8M (Stainless Steel 316), ASTM A 351 GR. CF 3 (Stainless Steel 304L), ASTM A 351 GR. CF 3M (Stainless Steel 316L), ASTM A 351 GR. CN 7M (Alloy 20) and others on request. Body Hydraulic Test Pressure design up to 17 Kg./Cm2. We also manufacturing Jacketed Type Sight Glass & Steam Jacketed Double Window Type Sight Flow Indicator Investment Casting (I.C.) Body Stainless Steel 304/316/304L/316L/Alloy 20 Sight Glass Flow Indicator Sight Flow Indicator Manufacturing Range - 1"(DN 25) to 12" (DN 300) Additional Information: Production Capacity: 100 Delivery Time: 10 days Packaging Details: corugated box

NRG GLOBAL MAKE Displacer type level switches offers the industrial user a wide choice of alarm and control configuration. DLS works on a simple buoyancy principle and is well suited for simple or complex applications, such as forming surging liquids or agitated fluids, and usually costs less than other types of level switches. CONSTRUCTION & OPERATION Operation is based on simple buoyancy principle. As the liquid level rises and progressively immerses the displacer elements, the effective weight suspended on the spring reduces and the consequent length of the spring change is used to provide magnet movement and operate the switch. The spring movement causes the magnetic sleeve to attract a pivoted magnet actuating a switch mechanism located outside the barrier tube. Built-in limit stops, prevent over stroking under level surge conditions. FEATURES: • Wide choice of switching functions • Suitable for large tanks up to 15 meters • Site adjustable switch points • Customized for high temp, high pressure & vaccum applications. • Reliable performance in turbulent liquids even without still pipes. • Easy transportation of longer length switches. • Enclosure : Weather proof-IP-65 Ex-proof-Gr. IIA & IIB or IIC

NRG MAKE OIL LEVEL INDICATOR This 'L' shape oil level indicator are available in Brass, MS with chrome plating and transparent body This oil level indicators overcome all limitation of monitoring oil level within gearbox with dip stick/oil sight window. Transparent body indicators provides a clear on line indication of oil level in gear boxes. KNOBE Type: . Compressors, Gear Box, Pharma Machinery SPMS Available in 1/4" to 2" Sizes - Materials in Aluminum S.S Ms. L-Shape:- These are easy to install and dismantled and require no maintenance in addition to this Products are higher on performance and robust & durable in nature thread connection 1/8" to 1/2", Length up to 300 mm.

Basket filters & strainers will permit the straining & filtering of a wide variety of fluids, to retain solids of almost any size. All baskets are easily removable & cleanable. Basket strainer elements can be offered in single cylinder, double cylinder, multi cylinder & pleated design depending upon requirement of application. They are constructed of filter housing, filter element supported with perforated cage, positive sealing arrangement to avoid any bypass & choice of end connections. Operation Unfiltered liquid enters the basket housing and passes down through them. Solids are retained inside/ outside of basket depending upon design and are removed when the unit is serviced.They are available with insitu backwashing arrangement, wherein removal of baskets for cleaning is not required often. Basket filters & strainers are normally supplied with spring arrangement at the top of filter element. This will ensure any type of bypassing & confirm the position of basket, even in case of reverse flow. Fluid bypass around the basket is prevented by an optional O'-Ring seal between the basket rim and the housing inside diameter.

Basket filters & strainers will permit the straining & filtering of a wide variety of fluids, to retain solids of almost any size. All baskets are easily removable & cleanable. Basket strainer elements can be offered in single cylinder, double cylinder, multi cylinder & pleated design depending upon requirement of application. They are constructed of filter housing, filter element supported with perforated cage, positive sealing arrangement to avoid any bypass & choice of end connections. Operation Unfiltered liquid enters the basket housing and passes down through them. Solids are retained inside/ outside of basket depending upon design and are removed when the unit is serviced.They are available with insitu backwashing arrangement, wherein removal of baskets for cleaning is not required often. Basket filters & strainers are normally supplied with spring arrangement at the top of filter element. This will ensure any type of bypassing & confirm the position of basket, even in case of reverse flow. Fluid bypass around the basket is prevented by an optional O'-Ring seal between the basket rim and the housing inside diameter.

NRG GLOBAL MAKE Basket strainers are installed to protect equipment from damage caused by unwanted debris that may be in the pipeline. The unwanted debris could be dirt or other foreign particles that make their way into the process fluid. Typically, basket strainers are installed in horizontal pipelines and in situations where high flow capacity is required. These strainers are installed upstream of equipment like pumps, control valves, and traps, keeping potentially corrosive or damaging debris from making its way down the line. They can be installed alone or in a series to increase filtration. They may come with a single chamber (simplex strainers) or multiple chambers (multiplex strainers). To read more about the differences between simplex and duplex strainers, check out this post. Understanding Mesh Sizing Each strainer is designed with a mesh lined basket to filter and collect the unwanted debris. Mesh size should be chosen based on the job function, not the size of the system. Selecting a mesh with openings that are too small could result in more frequent clogged lines, while a mesh with significantly larger openings could permit more unwanted debris to flow through the pipeline and equipment. Ideally, then, you’ll want to choose a mesh where the perforation is slightly smaller than the smallest particle you’ll need to filter out. Mesh size is measured by the number of openings in one linear inch of screen. For instance, a 16-mesh screen would have 16 openings per inch, while a 100-mesh screen would have 100 openings. Higher numbers, therefore, are able to strain out smaller particles with a finer weave. The baskets are typically made of stainless steel for quality and durability. Factors for Selecting the Right Basket Strainer Each application could require a different basket strainer. Consider the unique functions of your pipeline before deciding on a strainer. Important factors include the pressure and temperature requirements of your line, the type of liquid flow (corrosive, abrasive, etc.), debris size, and the frequency of cleaning and maintenance. You may also consider a duplex style basket strainer (such as these), which holds two strainer baskets fed by diverting valves. This system allows one basket to be cleaned and serviced while the other maintains flow.

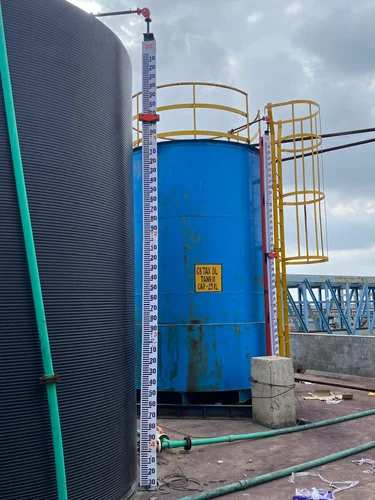

NRG GLOBAL MAKE Float & Board type level gauge is a weighing liquid level measuring system applicable for non-pressurized storage tanks/vessels. It is basically a balanced counterweight system with an arrow shaped pointer which smoothen the indication process. It is suitable for most liquid application media whose specific gravity is ≥ 0.8. Additionally, it effectively works in the phenomena of turbulence by ensuring stability using guided rope assembly with an anchor. Installation available for Ground Level Tank, Overhead Level Tank and Underground Level Tank. Wide Range Tank Height: Guided (up to 20m), Non-Guided (up to 8m) Float Ø 280mm × 80mm (SS 316 with Tested Pressure 2kg/cm²) Specific Gravity ≥ 0.8 Application Temperature Range : Up to 100° C Adjustable Horizontal Pipe (500 to 1000 mm) Wetted Parts : SS 316 Weatherproof Scale Board (SS 304 & Pure Polyester Powder Coated Aluminum) Process Connection: Flanges Radium Visibility from longer Distance
