'interchangeable paddle assemblies'

PRINCIPALA SMALL ELECTRIC MOTOR DRIVES THE PADDLE, WHICH ROTATES FREELY IN THE ABSENCE OF MATERIAL. IMPEDED BY MATERIAL THE MOTOR WILL BE TURNED WITHIN THE HOUSING WHILE LOADING A SPRING AND TRIGGERING TWO SWITCHES. ONE OF THEM IS A DRY ELECTRIC CONTACT FOR CONTROL AND ALARM FUNCTIONS WHILE THE OTHER CUTS THE POWER TO THE MOTOR. WHEN THE MATERIAL LEVEL DROPS, THE LOADED STRETCHED TENSION SPRING RETURNS THE MOTOR TO ITS ORIGINAL POSITION AND THE UNIT IS REACTIVATEDFEATURES• SPECIAL CLUTCH DESIGN(NON MAGNETIC)• FLEXIBLE COUPLING (OPTIONAL AS PER APPLICATION)• ROBUST, DUST AND WATERTIGHT HOUSING• EXTENDED PROBE POSSIBLE.• SEALED BEARINGS• INTERCHANGEABLE PADDLE ASSEMBLIES• 1 SPDT ( MICROSWITCH )APPLICATIONS• DRY SAND & FLY ASH• PET / PVC CHIPS WITH UNDER WATER DETECTION• RICE, WHEAT, OTHER FOOD GRAIN, FLOUR• IRON ORE, SINTERS AND PULVERIZED COAL• MILK POWDER Additional Information: Production Capacity: 100 Delivery Time: ex stock Packaging Details: export worthy packing

PRINCIPALA SMALL ELECTRIC MOTOR DRIVES THE PADDLE, WHICH ROTATES FREELY IN THE ABSENCE OF MATERIAL. IMPEDED BY MATERIAL THE MOTOR WILL BE TURNED WITHIN THE HOUSING WHILE LOADING A SPRING AND TRIGGERING TWO SWITCHES. ONE OF THEM IS A DRY ELECTRIC CONTACT FOR CONTROL AND ALARM FUNCTIONS WHILE THE OTHER CUTS THE POWER TO THE MOTOR. WHEN THE MATERIAL LEVEL DROPS, THE LOADED STRETCHED TENSION SPRING RETURNS THE MOTOR TO ITS ORIGINAL POSITION AND THE UNIT IS REACTIVATEDFEATURES• SPECIAL CLUTCH DESIGN(NON MAGNETIC)• FLEXIBLE COUPLING (OPTIONAL AS PER APPLICATION)• ROBUST, DUST AND WATERTIGHT HOUSING• EXTENDED PROBE POSSIBLE.• SEALED BEARINGS• INTERCHANGEABLE PADDLE ASSEMBLIES• 1 SPDT ( MICROSWITCH )APPLICATIONS• DRY SAND & FLY ASH• PET / PVC CHIPS WITH UNDER WATER DETECTION• RICE, WHEAT, OTHER FOOD GRAIN, FLOUR• IRON ORE, SINTERS AND PULVERIZED COAL• MILK POWDER Additional Information: Production Capacity: 100 Delivery Time: ex stock Packaging Details: export worthy packing

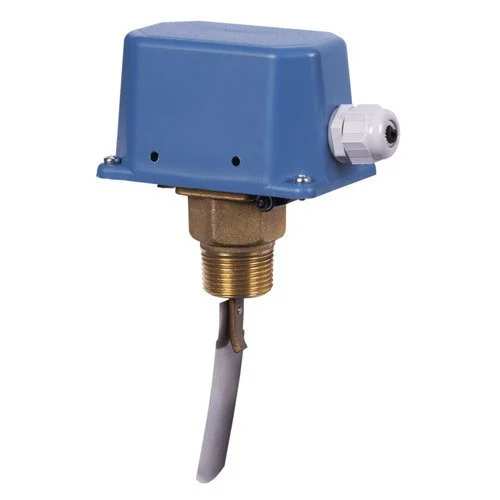

Flow Rang (Min)= 0.57 M3/hr Flow Range (Max)= 32.7 M3/hr Line Size= suitable for 1" to 6" NB Line Size Flow Set Point= Adjustable Switch Type= Micro Switch Form= 1NO+1NC Switch Rating= 5 Amp, 230 VAC Switch Enclosure= To gas Gr.IIA, IIB,Zone-2, T6 Design Pressure=6 Bar Design Temp= 80 Deg C Fitting= 1" NPT(M) in SS304 paddle material= SS304

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanksDirect IndicationThe Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’.Gauge ClassificationMeasuring Range : Up to 40 meters. For more than 40 meters please consult factory.Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12”Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalLeast Count : 10 MMMaximum Temperature : 80°C (PP) / 300°C (SS)Maximum Pressure : 10 KG/CM2Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring)Installation : Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid : 0.75 TO 2.0Connecting Pipe : Carbon Steel Powder CoatedLocal IndicationDirect : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS)Protection ConduitHorizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb : MS pipe 25NB x 195mm & 100mm longProcess Connections : 1” 150#Note : Custom made assemblies can be provided for specific applications Additional Information: Item Code: FBLISS09 Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

“NRG’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanks Direct Indication The Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’. Gauge Classification Measuring Range : Up to 40 meters. For more than 40 meters please consult factory. Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12” Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numerical Least Count : 10 MM Maximum Temperature : 80°C (PP) / 150°C (SS) Maximum Pressure : 10 KG/CM2 Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring) Installation : Grounded Level Tank / Underground Tank (sump) / Overhead Tank Specific Gravity of Fluid : 0.75 TO 2.0 Connecting Pipe : Carbon Steel Powder Coated Local Indication Direct : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’. Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS) Protection Conduit Horizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable) Vertical Limb : MS pipe 25NB x 195mm & 100mm long Process Connections : 1” 150# Note : Custom made assemblies can be provided for specific applications Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

Description : FEDREL / KRANTI Make Woltman Type Water Meter (Cold) Size range : 40 To 500 MM(1½” To 20”) Temp Range : 0°C to 45°C Accuracy Class :Class B (±2 % @ Nominal flow rate) Product Standard : ISO-4064/IS-2373 Body Material cum Standard : IS-210 Gr. FG-200 Dial Details : Magnetic Drive, Extra Dry Dial Protection Class : IP-68 End Details : Flanged Ends to BS: 4504 PN 16 APPLICATIONS · Water Supply Networks · Industries · Agriculture FEATURES AND BENEFITS · Extra Dry Dial · Hermetically sealed register ensures that all internal parts clean and prevents fogging throughout the entire lifetime of the meter. · Robust type body to pass the strongest resistance tests in both static and dynamic conditions. · High quality engineered materials for hydraulics and register pivot ensure high reliability and durability · Shock –resistant material for register and closure. · High performance magnetic transmission ensures no part of the register is in contact with water · Interchangeable spare parts for easy online maintenance · High sensitivity, low pressure loss · In-line strainers are standard. · Available for both cold and hot water. 100% of the products are calibrated and all calibrations results can be provided · Temperature Range = 45°c Description : FEDREL / KRANTI Make Woltman Type Water Meter (Cold) Size range : 40 To 500 MM(1½” To 20”) Temp Range : 0°C to 45°C Accuracy Class :Class B (±2 % @ Nominal flow rate) Product Standard : ISO-4064/IS-2373 Body Material cum Standard : IS-210 Gr. FG-200 Dial Details : Magnetic Drive, Extra Dry Dial Protection Class : IP-68 End Details : Flanged Ends to BS: 4504 PN 16 Additional Information: Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PAKING

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanksDirect IndicationThe Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’.Gauge ClassificationMeasuring Range : Up to 40 meters. For more than 40 meters please consult factory.Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12”Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalLeast Count : 10 MMMaximum Temperature : 80°C (PP) / 300°C (SS)Maximum Pressure : 10 KG/CM2Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring)Installation : Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid : 0.75 TO 2.0Connecting Pipe : Carbon Steel Powder CoatedLocal IndicationDirect : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS)Protection ConduitHorizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb : MS pipe 25NB x 195mm & 100mm longProcess Connections : 1” 150#Note : Custom made assemblies can be provided for specific applications Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: CORRUGATED BOX

Diaphragm seal systems are used for demanding measuring requirements with extreme medium temperatures of -90 °C up to +400 °C in the process industry. The diaphragm seal assemblies protect the measuring instrument from aggressive, corrosive, heterogeneous, abrasive, highly viscous or toxic media. With this service, the total costs of the diaphragm seal system can be clearly lowered. In this way, the service life of the measuring instrument can be fully utilised and only the diaphragm seal assembly needs replacement or repair, preventatively or after failure. With preventive maintenance, scheduled in line with planned shutdowns to your plant, you can reduce downtimes. Service can be done both on a mounted process transmitter as well as on a mechanical measuring instrument. Depending on the application case, the service life of the process transmitter is longer than that of the wetted parts. Therefore, only in rare cases must defective diaphragm seal systems be replaced completely, i.e. including the process transmitter. By re-using the process transmitter, WIKA offers a service package with clear cost savings. With the replacement service, through the exchange of the diaphragm seal, the TCO (total cost of ownership) of the measuring location can be reduced considerably. Your benefits Cost saving Fast availability by saving time Functional test of a process transmitter Current material test certificate New calibration of the entire system Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanks Direct Indication The Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’. Gauge Classification Measuring Range : Up to 40 meters. For more than 40 meters please consult factory. Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12” Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numerical Least Count : 10 MM Maximum Temperature : 80°C (PP) / 300°C (SS) Maximum Pressure : 10 KG/CM2 Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring) Installation : Grounded Level Tank / Underground Tank (sump) / Overhead Tank Specific Gravity of Fluid : 0.75 TO 2.0 Connecting Pipe : Carbon Steel Powder Coated Local Indication Direct : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’. Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS) Protection Conduit Horizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable) Vertical Limb : MS pipe 25NB x 195mm & 100mm long Process Connections : 1” 150# Note : Custom made assemblies can be provided for specific applications
