MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : FULL VIEW Name of the Fluid : LIQUID Temperature : MAX 120 DEG C Pressure : 2-3 KG/CM2 MOC (WETTED PARTS) : SS316 L FLANGE Connection SIZE : SS316 L ASA PER ASA 150 # RF GLASS : BOROSILICATE QVF DESIGN GLASS TUBE Packing : 100% PTFE STUDS : SS304 FASTNERS : SS304 F/F HIEGHT : 300 MM

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : GLASS TUBE ROTAMETER Name of the Fluid : LDO Temperature : 40 - 55 Deg C Pressure : 8 BAR Specific Gravity / Density : 0.267 Viscosity : PL SPECIFY M. RANGE : 0-150 Lit/Hr MOC (WETTEC PARTS) : SS 304 End Connection : SS 304 FLANGED END Process Connection : 1/2” ASA 150 # RF Float Material : SS 304 Float Retainer : PP Tube Material : GERMAN TAPER BOROSILICATE GLASS TUBE Packing/O-Ring Material : PTFE GLAND : CS BODY / COVER : MS POWDER COATED Scale : ACRYLIC ENGRAVED Scale Length : 50 – 150 mm Approx. Rangebility : 10:1 Scale Marking : In LPH Accuracy : ±2% F.S.D. Inlet Conn. Orientation : BOTTOM Outlet Conn. Orientation : TOP FASTNERS : S.S.304 F/F HIEGHT : 500 MM

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : GLASS TUBE ROTAMETER Name of the Fluid : OIL Temperature : 40 Pressure : 3 KG/CM2 Specific Gravity / Density : 0.85 Viscosity : 1.0 CP M. RANGE : 0 – 5 LPM MOC (WETTEC PARTS) : SS 316 End Connection : SS 316 FLANGE END Process Connection : ½” ASA 150 # RF Float Material : SS316 Float Retainer : P.P Tube Material : GERMAN TAPER BOROSILICATE GLASS TUBE Packing/O-Ring Material : PTFE GLAND : CS BODY / COVER : MS POWDER COATED Scale : ACRYLIC ENGRAVED Scale Length : 50 – 250 mm Approx. Rangebility : 10:1 Scale Marking : In LPM Accuracy : ±2% F.S.D. Inlet Conn. Orientation : BOTTOM Outlet Conn. Orientation : TOP FASTNERS : S.S.304 F/F HIEGHT : 500 MM

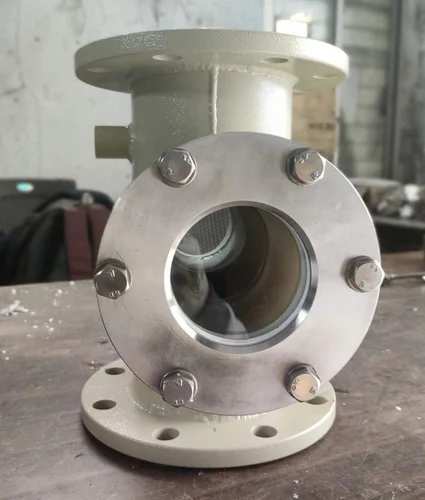

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : SINGLE WINDOW Name of the Fluid : LIQUID Temperature : 185 DEG C Pressure : 10 KG/CM2 MOC (WETTEC PARTS) : SS316 FABRICATED FROM SCH 10 PIPE End Connection : SS316 AS PER PN 16 JACKET : NA BASE PLATE : SS316 COVER PLATE : SS316 GLASS : BOROSILICATE TOUGHENED GLASS HAVING 12 MM THICK Packing : 100% PTFE OF 3 MMTK FASTNERS : SS304 Additional Information: Production Capacity: 100 Delivery Time: 10 DAYS Packaging Details: EXPORT WORTHY PACKING

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : ACRYLIC BODY ROTAMETER Name of the Fluid : WATER Temperature : 40 DEG C Pressure : 2-3 KG/CM2 Specific Gravity / Density : 1.0 Viscosity : 1.0 CP M. RANGE : 0 – 10000 LPH MOC (WETTEC PARTS) : P.P End Connection : P.P FLANGE END Process Connection : 2” ASA 150 # RF Float Material : SS304 Float Retainer : P.P Tube Material : ACRYLIC Packing/O-Ring Material : NEOPREN RUBBER GLAND : NA BODY / COVER : SOLID TRANSPARENT ACRYLIC BLOCK Scale : DIRECT ENGRAVED ON BODY Scale Length : 50 – 250 mm Approx. Rangebility : 10:1 Scale Marking : In LPH Accuracy : ±2% F.S.D. Inlet Conn. Orientation : BOTTOM Outlet Conn. Orientation : TOP F/F HIEGHT : 500 MM

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : jackted DOUBLE WINDOW Name of the Fluid : LIQUID Temperature : 150 DEG C Pressure : 5-6 KG/CM2 MOC (WETTEC PARTS) : SS316 FABRICATED FROM SCH 10 PIPE End Connection : SS316 FLANGE END JACKET : S.S.316 BASE PLATE : SS316 COVER PLATE : SS316 GLASS : BOROSILICATE TOUGHENED GLASS HAVING 15 MM THICK Packing : PTFE FASTNERS : SS304 Process Connection : 150 NB ASA 150 # RF

NRG GLOBAL” MAKE TURBINE FLOW METER HSN CODE MAKE SERVICES : 90261020 : NRG GLOBAL : FUEL OIL OPERATING PRESSURE MAX : 10 KG/CM2. OPERATING TEMPERATURE : 130 ̊C SPGR : 0.98 – 1.02 MOC ROTTER WORKING CONDUCTIVITY PROCESS CONNECTION MOUNTING MOUNTING TYPE INPUT SUPPLY DISPLAY : SS 316 : SS 410 : NOT REQURED : FLANGE ASA 150# : IN LINE HORIZONTAL. : REMOTE DISPLAY : 230V AC. DT. 11.09.2023 : 9 CHARACTER X 2 LINE LED WITH BLUE BACKLIGHT. BATCH CONTROLLER FLOW RATE TOTAL FLOW ENCLOSURE ACCURACY OUTPUT. STD. FLOW RANGE LINE SIZE QTY PRICE : 4 DIGITS LED. : 9 DIGITS LED. : 96X96 PANAL MOUNTED : +/-2% OF F.S. : 4 TO 20MA, RS485, WITH RELAY OUT PUT : 0 – 50 M3/HR : 3” ASA 150 # RF

NRG GLOBAL” MAKE FLOAT & BOARD LEVEL INDICATOR MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : FLOAT & BOARD FLUID : WATER TEMPERATURE : 50O C PRESSURE : 2-3 Kg/Cm2 SPECIFIC GRAVITY / DENSITY : 0.8 -2.0 KG/M3 VISCOSITY (OP / MAX) : 0.7 – 20 Cp MOC OF THE TANK : RCC/ MS / SS CONNECTION FLANGE : MS SLIP ON TYPE FLANGE SIZE : 1” NB ASA 150 # RF SCALE : ALLUMINIUM POWDER COATED HAVING SCREEN PRINTED AND 150 MM WIDTH AND 1 MTR LONG WITH WHITE BACKGROUND AND BLACK MARKING WITH PVC LAMINATED ZERO PLATE : ALUMINIUM POWDER COATED LEAST COUNT : 10 MM INDICATION IN : CM FLOAT : SS 304 HAVING 12” DIA FLOAT WIRE & GUIDE WIRE : SS 304 HAVING 2.5 MM DIA MULTITHRED PULLEY & PIN : SS 304 PULLEY HOUSING : ALLUMINIUM DIE CAST WETAHER PROOF “T” BRACKET FOR SCALE JOINT : MS “T” TYPE AT EVERY METER POWDER COATED TOP BRACKET : MS “L” TYPE POWDER COATED CHECKNUT AND CHECKNUT PIPE: MS CENTER CONNECTING PIPE : MS TELESCOPIC PIPE HAVING ADJUSTABLE UP TO 700 MM LONG AIRROW (INDICATOR) : MS POWDER COATED WITH PP ROLLER WITH RED REDIUM MARKING FASTENER : GI PLATED

NRG make SIDE MOUNTED MAGNETIC LEVEL INDIATOR HSN CODE : 90261020 MAKE : NRG GLOBAL MODEL NO : NRG/SMMLI/SS/25/CC TYPE : BIO COLOUR MAGNETIC ROLLER DEISGN MODEL : SIDE MOUNTED NAME OF THE FLUID : LIQUID STATE OF THE FLUID : LIQUID ONLY TEMPRATURE : 150 DEG C PRESSURE : 10 BAR SPECIFIC GRAVITY : 0.8 – 1.8 VISCOSITY ( OP / MAX) : 1 CP WETTED PARTS : SS316 MAIN CHAMBER : SS316 2” SCH 80 PIPE FLOAT : SS316 PROCESS CONNECTION : SS316 FLANGE END CONNECTION SIZE : 1” ASA 150 # RF TYPE OF INDICATOR : RED & WHITE COLOUR ROTATING ROLLER DESIGN GLASS TUBE : NA PACKING : 100% PTFE SCALE : SS316 ENGRAVED HAVING LC 5 MM LEAST COUNT : 5 MM INDICATOR HOUSING PROTECTION : ALUMINIUM POWDER COATED AIR VENT : ½” NPT STOP PLUG DRAIN : SS316 BLINED FLANGE WITH SS316 ½” BSP STOP PLUG PROTECTION : IP 65 MOUNTING ORIENTATION : SIDE – SIDE FASTNERS : SS304 HYD TEST : 10 KG/CM2
