'extended probe'

PRINCIPALA SMALL ELECTRIC MOTOR DRIVES THE PADDLE, WHICH ROTATES FREELY IN THE ABSENCE OF MATERIAL. IMPEDED BY MATERIAL THE MOTOR WILL BE TURNED WITHIN THE HOUSING WHILE LOADING A SPRING AND TRIGGERING TWO SWITCHES. ONE OF THEM IS A DRY ELECTRIC CONTACT FOR CONTROL AND ALARM FUNCTIONS WHILE THE OTHER CUTS THE POWER TO THE MOTOR. WHEN THE MATERIAL LEVEL DROPS, THE LOADED STRETCHED TENSION SPRING RETURNS THE MOTOR TO ITS ORIGINAL POSITION AND THE UNIT IS REACTIVATEDFEATURES• SPECIAL CLUTCH DESIGN(NON MAGNETIC)• FLEXIBLE COUPLING (OPTIONAL AS PER APPLICATION)• ROBUST, DUST AND WATERTIGHT HOUSING• EXTENDED PROBE POSSIBLE.• SEALED BEARINGS• INTERCHANGEABLE PADDLE ASSEMBLIES• 1 SPDT ( MICROSWITCH )APPLICATIONS• DRY SAND & FLY ASH• PET / PVC CHIPS WITH UNDER WATER DETECTION• RICE, WHEAT, OTHER FOOD GRAIN, FLOUR• IRON ORE, SINTERS AND PULVERIZED COAL• MILK POWDER Additional Information: Production Capacity: 100 Delivery Time: ex stock Packaging Details: export worthy packing

PRINCIPALA SMALL ELECTRIC MOTOR DRIVES THE PADDLE, WHICH ROTATES FREELY IN THE ABSENCE OF MATERIAL. IMPEDED BY MATERIAL THE MOTOR WILL BE TURNED WITHIN THE HOUSING WHILE LOADING A SPRING AND TRIGGERING TWO SWITCHES. ONE OF THEM IS A DRY ELECTRIC CONTACT FOR CONTROL AND ALARM FUNCTIONS WHILE THE OTHER CUTS THE POWER TO THE MOTOR. WHEN THE MATERIAL LEVEL DROPS, THE LOADED STRETCHED TENSION SPRING RETURNS THE MOTOR TO ITS ORIGINAL POSITION AND THE UNIT IS REACTIVATEDFEATURES• SPECIAL CLUTCH DESIGN(NON MAGNETIC)• FLEXIBLE COUPLING (OPTIONAL AS PER APPLICATION)• ROBUST, DUST AND WATERTIGHT HOUSING• EXTENDED PROBE POSSIBLE.• SEALED BEARINGS• INTERCHANGEABLE PADDLE ASSEMBLIES• 1 SPDT ( MICROSWITCH )APPLICATIONS• DRY SAND & FLY ASH• PET / PVC CHIPS WITH UNDER WATER DETECTION• RICE, WHEAT, OTHER FOOD GRAIN, FLOUR• IRON ORE, SINTERS AND PULVERIZED COAL• MILK POWDER Additional Information: Production Capacity: 100 Delivery Time: ex stock Packaging Details: export worthy packing

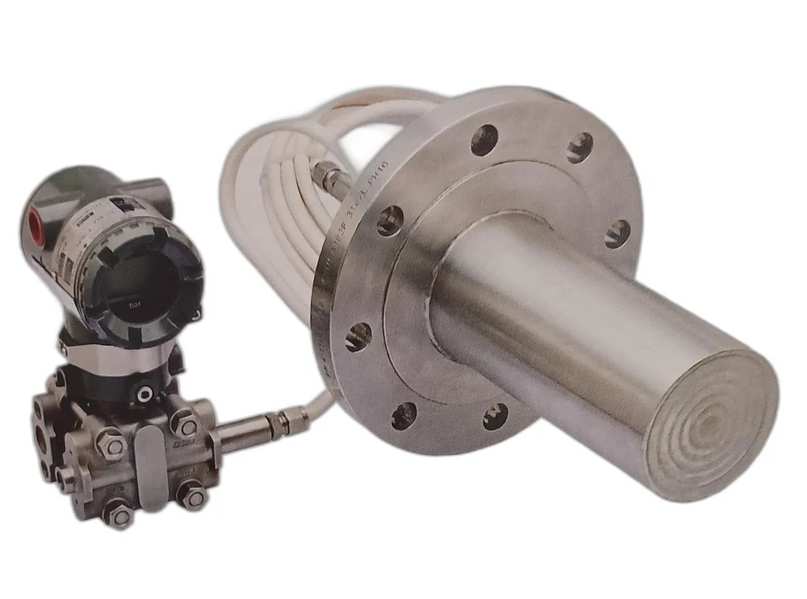

Extended Diaphragm Seal is ideal for highly viscous and dry powder applications. Its unique design eliminates dead space in piping. It is often used for flush mounting in thick-walled vessels and is available in standard and custom lengths.Construction Materials 316L or Hast C-276 Process Temperature Limits -110°F to 750°F Ambient Temperature Limits Determined by the Pressure Instrument Additional Information: Production Capacity: 100 Delivery Time: within a week Packaging Details: Export worthy packing

Conductivity Level Switch is a simple, low cost, point level measurement switch designed for level detection of conductive liquids having low densities, high viscosities, containing solid particles and to detect interface between non-conductive and conductive liquids. The probes work through the variation of the electrical resistance between the reference electrode and the level-control electrode. Conductivity level switches detect the level resistance when their electrodes are covered by the medium. If the tank is made of plastic, concrete, or any other nonconductive material, an additional electrode is required as a reference Conductivity Level Switches are available with stainless steel 316 electrodes as standard Suitable for many chemicals and aggressive media which are conductive in nature and dirty liquids, liquids with high solid content Construction available with both Solid probes & Suspended probes to suit fitting requirement It is a simple, low cost, point level controller designed for detecton of conductive liquids, having low densites, high viscosities, containing solid particles and interface between nonconductive and conductive liquids. CONSTRUCTION & OPERATION It comprises of a probe, wired to a level controller. The probe holds one common reference/common electrode and one or multiple “Control Electrodes” depending upon the number of levels to be controlled. All the electrodes are suitably insulated to avoid electrical bridging. The lengths of “Control Electrodes” correspond to the height of preset level points to be controlled and the length of the “reference/common Electrode” is kept slightly longer than the longest “Control Electrode”. If tank is conductive, it can be used as a reference/common electrode. Then number of control electrodes equals number of preset levels. Level controller houses sensing electronics consisting of power supply and signal conditoning circuit which provide a “Low AC Voltage” across mass and control electrodes. On liquid reaching preset level point electrical circuit gets completed - generating a signal which is amplified to actuate a relay, those potential free contacts are available for subsequent operations. On “Level Falling” the circuit breaks, deactivating the relay Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PAKING

NRG MAKE vibrating fork is a level switch for liquids and is used in tanks, containers and pipelines.As a sturdy replacement of conventional float switch, Elixir offers a variety of built-in featuresnon-existant in floats and other switches, e.g. where materials are sticky, corrosive, agitated,splashing, foaming and having uncertain electrical properties.Elixir vibrating fork is suitablefor hazardous areas, available with explosion-proof housings certified by CMRI , Dhanbad.Features• Less Power Consumption: Less Heat, Long Life• Universal Power Supply: 18 to 55 V DC,90 to 265 V AC on same terminals• Application Temperature Range : up to 200° C• Suitable up to 10,000 cP (Detects all Industrial Fluids)• Compact Size: Less Inventory• Extendable probe length from 68 to 3000 mm• ECTFE coated, polished & hygienic fork• Output: 8.2V Namur, SPDT & DPDT Relay type currentoutput• Calibration Free, independent of material's dielectricpropertiesPrincipleA specially shaped tuning fork is kept vibrating using piezo-electric elements. Typically, thefork vibrates at its natural frequency. The frequency of oscillation for the tuning fork changeswhen immersed in liquids. The change in frequency is detected by the microprocessorleading to a switching decision.Manufacturing Level Instruments & Speed Monitoring SystemsVersion 2.1Grown...to meet challengesELIXIR Microcontrollerbased Vibrating Fork Liquid Level Limit SwitchApprovals CE Marking, RoHS Compliance, IP-67 Marking Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

NRG capacitance level TRANSMITTER offers a solution for level limit detection offine, coarse, bulky solids, nonstickyslurries and liquids. The measuring systemconsists of an evaluation unit, an electronic insert and a probe. It works by utilizingthe dielectric property of the application material.PrincipleThe probe comprises of a sense electrode, electrically isolated from the metallic tank bymeans of a suitable insulator. The sense electrode and the vessel wall serve as the twoelectrodes of a capacitor with the service material acting as the dielectric. A change in thelevel of material causes a change in the dielectric, which in turn causes the value of this tankcapacitor to change.Approvals CE Marking, Flameproof Enclosure (Gas Groups IIA, IIB, IIC), RoHS Compliance Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

Nrg global Instruments make conductivity level sensor PRODUCT DETAILS Medium Temp : -20Deg C to 100 Dec C Special Version : Up to 200 Deg C Electronics : -25oC to +65oC Output : 1 sets of potential free c/o contacts rated at 5 amps, 230VAC for resistive loads per switch point Supply Voltage : 12-30 V Dc Mounting Connection : 1/2" Standard for Rod probe, others as per request and application MODELS : 1)Single Point 2) Multipoint up to 4 points NRG GLOBAL INSTRUMENTS is the leading Capacitance Level Switches manufacturer in India which provides the quality products to its customers. The best thing about our manufacturing is that it is completely focused on customer needs and satisfaction. NRG GLOBAL INSTRUMENTS is working hard to increase the reach of technology in every small area across the globe and at the least possible prices. We provide various switches and transmitter for particular usage. Amid all these, Capacitance Level Switch is used for liquid products.

NRG GLOBAL vibrating fork is a level switch for liquids and is used in tanks, containers and pipelines.As a sturdy replacement of conventional float switch, Elixir offers a variety of built-in featuresnon-existant in floats and other switches, e.g. where materials are sticky, corrosive, agitated,splashing, foaming and having uncertain electrical properties.Elixir vibrating fork is suitablefor hazardous areas, available with explosion-proof housings certified by CMRI , Dhanbad.Features• Less Power Consumption: Less Heat, Long Life• Universal Power Supply: 18 to 55 V DC,90 to 265 V AC on same terminals• Application Temperature Range : up to 200° C• Suitable up to 10,000 cP (Detects all Industrial Fluids)• Compact Size: Less Inventory• Extendable probe length from 68 to 3000 mm• ECTFE coated, polished & hygienic fork• Output: 8.2V Namur, SPDT & DPDT Relay type currentoutput• Calibration Free, independent of material's dielectricpropertiesPrincipleA specially shaped tuning fork is kept vibrating using piezo-electric elements. Typically, thefork vibrates at its natural frequency. The frequency of oscillation for the tuning fork changeswhen immersed in liquids. The change in frequency is detected by the microprocessorleading to a switching decision.Manufacturing Level Instruments & Speed Monitoring SystemsVersion 2.1Grown...to meet challenges Microcontrollerbased Vibrating Fork Liquid Level Limit SwitchApprovals CE Marking, RoHS Compliance, IP-67 Marking Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

NRG GLOBALDOMESTIC WATER METER SPECIFICATIONS (15MM, 20MM AND 25MM SIZES) 1.1 GENERAL LAYOUT The complete water meter is to consist of (5) components:  Above ground extruded water meter box and extended lid with slider.  A water meter (Plastic bodied 15mm, 20mm and 25mm) class C volumetric rotary piston liquid sealed register) with unique meter serial number where first two digits indicate year of manufacture Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: CORUGATED BOX
