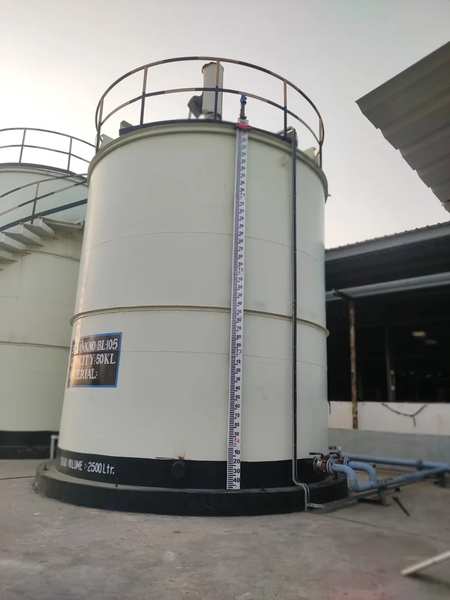

NRG MAKE FLOAT & BOARD LEVEL GAUGE Mainly Use for Storage tank of Oil, F.D. Fire/Dm Water Tank. Lube Oil. HCL Acid Alka;ic, etc., Vapour seal for Special application like HCL,N2. Pirged Tank. Diluted alkalis etc.... Suitable for Tail & Large Tank non pressirized and non hazardous chemical Storage Tank. A large Self contered Float follows the Liquid Level in this gauge. A rope Fitted with a float moves over a pair of dust free puliey. Level is Indicated by a Pointer moves on a 150 mm Width Aluminium Powder Coated Scale. H eight 1 mtr to 30 mtr and Other on request Available in Polypropylene Additional Information: Delivery Time: as per location

NRG MAKE FLOAT & BOARD LEVEL GAUGE Mainly Use for Storage tank of Oil, F.D. Fire/Dm Water Tank. Lube Oil. HCL Acid Alka;ic, etc., Vapour seal for Special application like HCL,N2. Pirged Tank. Diluted alkalis etc.... Suitable for Tail & Large Tank non pressirized and non hazardous chemical Storage Tank. A large Self contered Float follows the Liquid Level in this gauge. A rope Fitted with a float moves over a pair of dust free puliey. Level is Indicated by a Pointer moves on a 150 mm Width Aluminium Powder Coated Scale. H eight 1 mtr to 2 5 mtr and Other on request Available in Polypropylene Additional Information: Item Code: 9026 Production Capacity: 1000 Delivery Time: 1 WEEK Packaging Details: EXPORTWERTHY PACKING

NRG MAKE vibrating fork is a level switch for liquids and is used in tanks, containers and pipelines.As a sturdy replacement of conventional float switch, Elixir offers a variety of built-in featuresnon-existant in floats and other switches, e.g. where materials are sticky, corrosive, agitated,splashing, foaming and having uncertain electrical properties.Elixir vibrating fork is suitablefor hazardous areas, available with explosion-proof housings certified by CMRI , Dhanbad.Features• Less Power Consumption: Less Heat, Long Life• Universal Power Supply: 18 to 55 V DC,90 to 265 V AC on same terminals• Application Temperature Range : up to 200° C• Suitable up to 10,000 cP (Detects all Industrial Fluids)• Compact Size: Less Inventory• Extendable probe length from 68 to 3000 mm• ECTFE coated, polished & hygienic fork• Output: 8.2V Namur, SPDT & DPDT Relay type currentoutput• Calibration Free, independent of material's dielectricpropertiesPrincipleA specially shaped tuning fork is kept vibrating using piezo-electric elements. Typically, thefork vibrates at its natural frequency. The frequency of oscillation for the tuning fork changeswhen immersed in liquids. The change in frequency is detected by the microprocessorleading to a switching decision.Manufacturing Level Instruments & Speed Monitoring SystemsVersion 2.1Grown...to meet challengesELIXIR Microcontrollerbased Vibrating Fork Liquid Level Limit SwitchApprovals CE Marking, RoHS Compliance, IP-67 Marking Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

PRINCIPALA SMALL ELECTRIC MOTOR DRIVES THE PADDLE, WHICH ROTATES FREELY IN THE ABSENCE OF MATERIAL. IMPEDED BY MATERIAL THE MOTOR WILL BE TURNED WITHIN THE HOUSING WHILE LOADING A SPRING AND TRIGGERING TWO SWITCHES. ONE OF THEM IS A DRY ELECTRIC CONTACT FOR CONTROL AND ALARM FUNCTIONS WHILE THE OTHER CUTS THE POWER TO THE MOTOR. WHEN THE MATERIAL LEVEL DROPS, THE LOADED STRETCHED TENSION SPRING RETURNS THE MOTOR TO ITS ORIGINAL POSITION AND THE UNIT IS REACTIVATEDFEATURES• SPECIAL CLUTCH DESIGN(NON MAGNETIC)• FLEXIBLE COUPLING (OPTIONAL AS PER APPLICATION)• ROBUST, DUST AND WATERTIGHT HOUSING• EXTENDED PROBE POSSIBLE.• SEALED BEARINGS• INTERCHANGEABLE PADDLE ASSEMBLIES• 1 SPDT ( MICROSWITCH )APPLICATIONS• DRY SAND & FLY ASH• PET / PVC CHIPS WITH UNDER WATER DETECTION• RICE, WHEAT, OTHER FOOD GRAIN, FLOUR• IRON ORE, SINTERS AND PULVERIZED COAL• MILK POWDER Additional Information: Production Capacity: 100 Delivery Time: ex stock Packaging Details: export worthy packing

NRG GLOBAL vibrating fork is a level switch for liquids and is used in tanks, containers and pipelines.As a sturdy replacement of conventional float switch, Elixir offers a variety of built-in featuresnon-existant in floats and other switches, e.g. where materials are sticky, corrosive, agitated,splashing, foaming and having uncertain electrical properties.Elixir vibrating fork is suitablefor hazardous areas, available with explosion-proof housings certified by CMRI , Dhanbad.Features• Less Power Consumption: Less Heat, Long Life• Universal Power Supply: 18 to 55 V DC,90 to 265 V AC on same terminals• Application Temperature Range : up to 200° C• Suitable up to 10,000 cP (Detects all Industrial Fluids)• Compact Size: Less Inventory• Extendable probe length from 68 to 3000 mm• ECTFE coated, polished & hygienic fork• Output: 8.2V Namur, SPDT & DPDT Relay type currentoutput• Calibration Free, independent of material's dielectricpropertiesPrincipleA specially shaped tuning fork is kept vibrating using piezo-electric elements. Typically, thefork vibrates at its natural frequency. The frequency of oscillation for the tuning fork changeswhen immersed in liquids. The change in frequency is detected by the microprocessorleading to a switching decision.Manufacturing Level Instruments & Speed Monitoring SystemsVersion 2.1Grown...to meet challenges Microcontrollerbased Vibrating Fork Liquid Level Limit SwitchApprovals CE Marking, RoHS Compliance, IP-67 Marking Additional Information: Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

PRINCIPALA SMALL ELECTRIC MOTOR DRIVES THE PADDLE, WHICH ROTATES FREELY IN THE ABSENCE OF MATERIAL. IMPEDED BY MATERIAL THE MOTOR WILL BE TURNED WITHIN THE HOUSING WHILE LOADING A SPRING AND TRIGGERING TWO SWITCHES. ONE OF THEM IS A DRY ELECTRIC CONTACT FOR CONTROL AND ALARM FUNCTIONS WHILE THE OTHER CUTS THE POWER TO THE MOTOR. WHEN THE MATERIAL LEVEL DROPS, THE LOADED STRETCHED TENSION SPRING RETURNS THE MOTOR TO ITS ORIGINAL POSITION AND THE UNIT IS REACTIVATEDFEATURES• SPECIAL CLUTCH DESIGN(NON MAGNETIC)• FLEXIBLE COUPLING (OPTIONAL AS PER APPLICATION)• ROBUST, DUST AND WATERTIGHT HOUSING• EXTENDED PROBE POSSIBLE.• SEALED BEARINGS• INTERCHANGEABLE PADDLE ASSEMBLIES• 1 SPDT ( MICROSWITCH )APPLICATIONS• DRY SAND & FLY ASH• PET / PVC CHIPS WITH UNDER WATER DETECTION• RICE, WHEAT, OTHER FOOD GRAIN, FLOUR• IRON ORE, SINTERS AND PULVERIZED COAL• MILK POWDER Additional Information: Production Capacity: 100 Delivery Time: ex stock Packaging Details: export worthy packing
