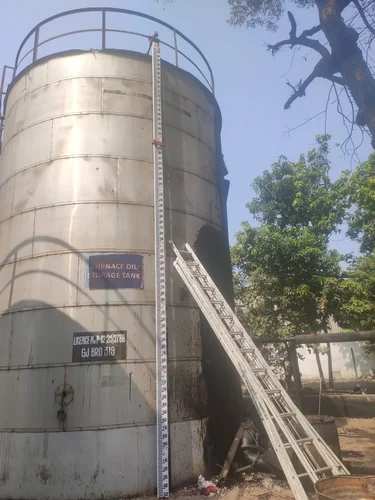

“NRG’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanks Direct Indication The Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’. Gauge Classification Measuring Range : Up to 40 meters. For more than 40 meters please consult factory. Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12” Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numerical Least Count : 10 MM Maximum Temperature : 80°C (PP) / 150°C (SS) Maximum Pressure : 10 KG/CM2 Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring) Installation : Grounded Level Tank / Underground Tank (sump) / Overhead Tank Specific Gravity of Fluid : 0.75 TO 2.0 Connecting Pipe : Carbon Steel Powder Coated Local Indication Direct : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’. Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS) Protection Conduit Horizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable) Vertical Limb : MS pipe 25NB x 195mm & 100mm long Process Connections : 1” 150# Note : Custom made assemblies can be provided for specific applications Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

Established in the year 2020, NRG GLOBAL is an accomplished manufacturer, trader and exporter of a wide range of measuring instrument. Our aim from day one has been to offer world-class products to customers at very reasonable prices. This has driven us to follow the latest technical advancements in the industry and enhance our product range by incorporating the same into our offerings.The company was founded and has grown under the great leadership of our owner Mr. RIKESH BHAGAT who has along with our top-management team has dedicated himself to the growth and well-being of the organization. With comprehensive domain expertise and experience, he provides us with valuable direction and guidance that has helped us in being a leader in this industry.We believe in achieving overall excellence in all our functions.

Established in the year 2020, NRG GLOBAL is an accomplished manufacturer, trader and exporter of a wide range of measuring instrument. Our aim from day one has been to offer world-class products to customers at very reasonable prices. This has driven us to follow the latest technical advancements in the industry and enhance our product range by incorporating the same into our offerings.The company was founded and has grown under the great leadership of our owner Mr. RIKESH BHAGAT who has along with our top-management team has dedicated himself to the growth and well-being of the organization. With comprehensive domain expertise and experience, he provides us with valuable direction and guidance that has helped us in being a leader in this industry.We believe in achieving overall excellence in all our functions.

Established in the year 2020, NRG GLOBAL is an accomplished manufacturer, trader and exporter of a wide range of measuring instrument. Our aim from day one has been to offer world-class products to customers at very reasonable prices. This has driven us to follow the latest technical advancements in the industry and enhance our product range by incorporating the same into our offerings.The company was founded and has grown under the great leadership of our owner Mr. RIKESH BHAGAT who has along with our top-management team has dedicated himself to the growth and well-being of the organization. With comprehensive domain expertise and experience, he provides us with valuable direction and guidance that has helped us in being a leader in this industry.We believe in achieving overall excellence in all our functions.

Established in the year 2020, NRG GLOBAL is an accomplished manufacturer, trader and exporter of a wide range of measuring instrument. Our aim from day one has been to offer world-class products to customers at very reasonable prices. This has driven us to follow the latest technical advancements in the industry and enhance our product range by incorporating the same into our offerings.The company was founded and has grown under the great leadership of our owner Mr. RIKESH BHAGAT who has along with our top-management team has dedicated himself to the growth and well-being of the organization. With comprehensive domain expertise and experience, he provides us with valuable direction and guidance that has helped us in being a leader in this industry.We believe in achieving overall excellence in all our functions.

Established in the year 2020, NRG GLOBAL is an accomplished manufacturer, trader and exporter of a wide range of measuring instrument. Our aim from day one has been to offer world-class products to customers at very reasonable prices. This has driven us to follow the latest technical advancements in the industry and enhance our product range by incorporating the same into our offerings.The company was founded and has grown under the great leadership of our owner Mr. RIKESH BHAGAT who has along with our top-management team has dedicated himself to the growth and well-being of the organization. With comprehensive domain expertise and experience, he provides us with valuable direction and guidance that has helped us in being a leader in this industry.We believe in achieving overall excellence in all our functions.

NRG MAKE ACRYLIC BODY ROTAMETER We are specialized in manufacturing and supplying a wide collection of Acrylic Body Rotameter - Threaded Type. Widely used to measure flow rate of liquids and gases under critical conditions, this rota meter is manufactured at our ultra modern manufacturing unit by consuming top class base material in line with market norms to guarantee flawlessness at customer’s end. The offered rota meter is accessible in varied models as per the application necessities of the customers. Along with that, we also modify this flow meter as per information laid down by our customers to fulfill the customer’s requirements. The mentioned prices are approx price & it may vary as per your requirement because it requires customization in product. Features: Superior performance Optimum finish Longer service life
