'150 mm width aluminium powder coated scale'

NRG MAKE FLOAT & BOARD LEVEL GAUGE Mainly Use for Storage tank of Oil, F.D. Fire/Dm Water Tank. Lube Oil. HCL Acid Alka;ic, etc., Vapour seal for Special application like HCL,N2. Pirged Tank. Diluted alkalis etc.... Suitable for Tail & Large Tank non pressirized and non hazardous chemical Storage Tank. A large Self contered Float follows the Liquid Level in this gauge. A rope Fitted with a float moves over a pair of dust free puliey. Level is Indicated by a Pointer moves on a 150 mm Width Aluminium Powder Coated Scale. H eight 1 mtr to 30 mtr and Other on request Available in Polypropylene Additional Information: Delivery Time: as per location

NRG MAKE FLOAT & BOARD LEVEL GAUGE Mainly Use for Storage tank of Oil, F.D. Fire/Dm Water Tank. Lube Oil. HCL Acid Alka;ic, etc., Vapour seal for Special application like HCL,N2. Pirged Tank. Diluted alkalis etc.... Suitable for Tail & Large Tank non pressirized and non hazardous chemical Storage Tank. A large Self contered Float follows the Liquid Level in this gauge. A rope Fitted with a float moves over a pair of dust free puliey. Level is Indicated by a Pointer moves on a 150 mm Width Aluminium Powder Coated Scale. H eight 1 mtr to 2 5 mtr and Other on request Available in Polypropylene Additional Information: Item Code: 9026 Production Capacity: 1000 Delivery Time: 1 WEEK Packaging Details: EXPORTWERTHY PACKING

NRG GLOBAL” MAKE FLOAT & BOARD LEVEL INDICATOR MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : FLOAT & BOARD FLUID : WATER TEMPERATURE : 50O C PRESSURE : 2-3 Kg/Cm2 SPECIFIC GRAVITY / DENSITY : 0.8 -2.0 KG/M3 VISCOSITY (OP / MAX) : 0.7 – 20 Cp MOC OF THE TANK : RCC/ MS / SS CONNECTION FLANGE : MS SLIP ON TYPE FLANGE SIZE : 1” NB ASA 150 # RF SCALE : ALLUMINIUM POWDER COATED HAVING SCREEN PRINTED AND 150 MM WIDTH AND 1 MTR LONG WITH WHITE BACKGROUND AND BLACK MARKING WITH PVC LAMINATED ZERO PLATE : ALUMINIUM POWDER COATED LEAST COUNT : 10 MM INDICATION IN : CM FLOAT : SS 304 HAVING 12” DIA FLOAT WIRE & GUIDE WIRE : SS 304 HAVING 2.5 MM DIA MULTITHRED PULLEY & PIN : SS 304 PULLEY HOUSING : ALLUMINIUM DIE CAST WETAHER PROOF “T” BRACKET FOR SCALE JOINT : MS “T” TYPE AT EVERY METER POWDER COATED TOP BRACKET : MS “L” TYPE POWDER COATED CHECKNUT AND CHECKNUT PIPE: MS CENTER CONNECTING PIPE : MS TELESCOPIC PIPE HAVING ADJUSTABLE UP TO 700 MM LONG AIRROW (INDICATOR) : MS POWDER COATED WITH PP ROLLER WITH RED REDIUM MARKING FASTENER : GI PLATED

NRG GLOBAL” MAKE FLOAT & BOARD LEVEL INDICATOR MAKE : NRG GLOBAL TYPE : FLOAT & BOARD FLUID : LIQUID TEMPERATURE : 50O C PRESSURE : VACCUME TO 10 Kg/Cm2 SPECIFIC GRAVITY / DENSITY : 0.7-2.0 VISCOSITY (OP / MAX) : 1-20 Cp MOC OF THE TANK : MS./SS/HDPE/FRP CONNECTION FLANGE : PP SLIP ON TYPE FLANGE SIZE : 1” ASA 150 # RF SCALE : FRP HAVING SCREEN PRINTED AND 150 MM WIDTH AND 1 MTR LONG WITH WHITE BACKGROUND AND BLACK MARKING WITH PVC LAMINATED ZERO PLATE : ALUMINIUM POWDER COATED LEAST COUNT : 10 MM INDICATION IN : CM FLOAT : PP HAVING 10” DIA FLOAT WIRE : PP HAVING 6 MM DIA MULTITHRED PULLEY & PIN : PP PULLEY HOUSING : PP DIE CAST DUST PROOF “T”BRACKET FOR SCALE JOINT : MS “T” TYPE AT EVERY METER POWDER COATED TOP BRACKET : M.S. “ L” TYPE POWDER COATED CHECKNUT AND CHECKNUT PIPE: PVC CENTER CONNECTING PIPE : PVC TELESCOPIC PIPE HAVING ADJUSTABLE UP TO 700 MM LONG AIRROW (INDICATOR) : M.S. POWDER COATED WITH PP ROLLER WITH RED REDIUM MARKING ANCHOR PLATE : NA ANCHOR HOUSING : NA ANCHOR SPRING : NA FASTENER : SS 316L HIGHT TO BE MEASURE : 3.55 MTRS.

“NRG GLOBAL” MAKE FLOAT & BOARD LEVEL INDICATOR MAKE : NRG GLOBAL TYPE : FLOAT & BOARD FLUID : LIQUID TEMPERATURE : 50O C PRESSURE : VACCUME TO 10 Kg/Cm2 SPECIFIC GRAVITY / DENSITY : 0.7-2.0 VISCOSITY (OP / MAX) : 1-20 Cp MOC OF THE TANK : MS./SS/HDPE/FRP CONNECTION FLANGE : PP SLIP ON TYPE FLANGE SIZE : 1” ASA 150 # RF SCALE : FRP HAVING SCREEN PRINTED AND 150 MM WIDTH AND 1 MTR LONG WITH WHITE BACKGROUND AND BLACK MARKING WITH PVC LAMINATED ZERO PLATE : ALUMINIUM POWDER COATED LEAST COUNT : 10 MM INDICATION IN : CM FLOAT : PP HAVING 10” DIA FLOAT WIRE : PP HAVING 6 MM DIA MULTITHRED PULLEY & PIN : PP PULLEY HOUSING : PP DIE CAST DUST PROOF “T”BRACKET FOR SCALE JOINT : MS “T” TYPE AT EVERY METER POWDER COATED TOP BRACKET : M.S. “ L” TYPE POWDER COATED CHECKNUT AND CHECKNUT PIPE: PVC CENTER CONNECTING PIPE : PVC TELESCOPIC PIPE HAVING ADJUSTABLE UP TO 700 MM LONG AIRROW (INDICATOR) : M.S. POWDER COATED WITH PP ROLLER WITH RED REDIUM MARKING ANCHOR PLATE : NA ANCHOR HOUSING : NA ANCHOR SPRING : NA FASTENER : SS 316L

MAKE : NRG GLOBAL TYPE : MAGNETIC FLAPPER DEISGN MODEL : SIDE MOUNTED NAME OF THE FLUID : ACIDIC LIQUID STATE OF THE FLUID : LIQUID ONLY FLUID TYPE : TRANSPARENT / OPAQUE TEMPRATURE : 50 DEG C PRESSURE : 5 KG/CM2 SPECIFIC GRAVITY : 1.3 VISCOSITY ( OP / MAX) : 1-20 CP WETTED PARTS : P.P MAIN CHAMBER : P.P 2” NB SS304 SCH 10 PIPE FLOAT : P.P MAGNETIC PROCESS CONNECTION : P.P FLANGE CONNECTION SIZE : 2” ASA 150 # RF TYPE OF INDICATOR : RED & WHITE COLOUR ROTATING FLAPPER DESIGN GLASS TUBE : NA PACKING : 100% PTFE SCALE : ACRYLIC ENGRAVED LEAST COUNT : 5 MM INDICATOR HOUSING PROTECTION : ALUMINIUM POWDER COATED AIR VENT : 1/2” P.P BSP-M STOP PLUG DRAIN : 1/2” P.P BSP-M STOP PLUG FASTNERS : SS304 ACCURACY : 2% FSR LEVEL TRANSMITTER : EXTERNAL MOUNTED LEVEL TRANSMITTER OUT PUT 4-20 mA LEVEL SWITCH

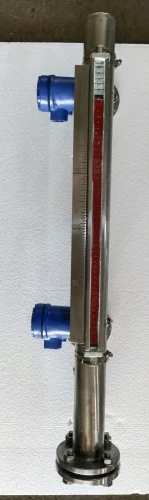

NRG make SIDE MOUNTED MAGNETIC LEVEL INDIATOR HSN CODE : 90261020 MAKE : NRG GLOBAL MODEL NO : NRG/SMMLI/SS/25/CC TYPE : BIO COLOUR MAGNETIC ROLLER DEISGN MODEL : SIDE MOUNTED NAME OF THE FLUID : LIQUID STATE OF THE FLUID : LIQUID ONLY TEMPRATURE : 150 DEG C PRESSURE : 10 BAR SPECIFIC GRAVITY : 0.8 – 1.8 VISCOSITY ( OP / MAX) : 1 CP WETTED PARTS : SS316 MAIN CHAMBER : SS316 2” SCH 80 PIPE FLOAT : SS316 PROCESS CONNECTION : SS316 FLANGE END CONNECTION SIZE : 1” ASA 150 # RF TYPE OF INDICATOR : RED & WHITE COLOUR ROTATING ROLLER DESIGN GLASS TUBE : NA PACKING : 100% PTFE SCALE : SS316 ENGRAVED HAVING LC 5 MM LEAST COUNT : 5 MM INDICATOR HOUSING PROTECTION : ALUMINIUM POWDER COATED AIR VENT : ½” NPT STOP PLUG DRAIN : SS316 BLINED FLANGE WITH SS316 ½” BSP STOP PLUG PROTECTION : IP 65 MOUNTING ORIENTATION : SIDE – SIDE FASTNERS : SS304 HYD TEST : 10 KG/CM2

MAKE : NRG GLOBAL HSN CODE : 90261020 TYPE : GLASS TUBE ROTAMETER Name of the Fluid : LDO Temperature : 40 - 55 Deg C Pressure : 8 BAR Specific Gravity / Density : 0.267 Viscosity : PL SPECIFY M. RANGE : 0-150 Lit/Hr MOC (WETTEC PARTS) : SS 304 End Connection : SS 304 FLANGED END Process Connection : 1/2” ASA 150 # RF Float Material : SS 304 Float Retainer : PP Tube Material : GERMAN TAPER BOROSILICATE GLASS TUBE Packing/O-Ring Material : PTFE GLAND : CS BODY / COVER : MS POWDER COATED Scale : ACRYLIC ENGRAVED Scale Length : 50 – 150 mm Approx. Rangebility : 10:1 Scale Marking : In LPH Accuracy : ±2% F.S.D. Inlet Conn. Orientation : BOTTOM Outlet Conn. Orientation : TOP FASTNERS : S.S.304 F/F HIEGHT : 500 MM

MAKE : NRG GLOBAL MODEL : TUBULAR SIDE MOUNTED TYPE : WITHOUT ISOLATION VALVE FLUID : LIQUID TEMPERATURE : 50O C SPECIFIC GRAVITY / DENSITY : 0.7-1.2 VISCOSITY (OP / MAX) : 1 Cp WETTED PARTS (MOC) : MS CONNECTION FLANGE : MS SLIP ON TYPE CASING / GLASS PROTECTION: MS “C” TYPE CHANNEL OF 1 MM THICK WITH POWDER COATED TUBE : BOROSILICATE TRANSPARENT GLASS TUBE of 25 MM OD SCALE : ACRYLIC ENGRAVED OF 25 MM WIDTH WITH LC 5MM PACKING : 100 % PTFE GLAND PUSHER : PTFE VALVE TYPE : NA VALVE BODY : NA VENT PLUG : ½” MS BSP Stop Plug DRAIN PLUG : ½” MS BSP Stop Plug ACCESSOIRES : NA HYD TEST : 7 Kg/cm2 to Vacuum FASTENERS : SS304
