NRG MAKE OIL LEVEL INDICATOR This 'L' shape oil level indicator are available in Brass, MS with chrome plating and transparent body This oil level indicators overcome all limitation of monitoring oil level within gearbox with dip stick/oil sight window. Transparent body indicators provides a clear on line indication of oil level in gear boxes. KNOBE Type: . Compressors, Gear Box, Pharma Machinery SPMS Available in 1/4" to 2" Sizes - Materials in Aluminum S.S Ms. L-Shape:- These are easy to install and dismantled and require no maintenance in addition to this Products are higher on performance and robust & durable in nature thread connection 1/8" to 1/2", Length up to 300 mm.

“NRG GLOBAL INSTRUMENTS’ make Float & Board Level Indicators are designed for an accurate, reliable & trouble free float operated technique used in large non -pressurized storage tanksDirect IndicationThe Float & Board Level Indicators consists of a float connected to a pointer through a rope via a set of pulleys. The pointer glides over a calibrated gauge board, positioned parallel to the tank. The float accurately follows liquid level variations in vertical direction. The horizontal float movement is as such, the pointer in ‘TOP POSITION’ when tank is ‘EMPTY’ and in ‘BOTTOM POSITION’ when ‘FULL’.Gauge ClassificationMeasuring Range : Up to 40 meters. For more than 40 meters please consult factory.Float : P.P/SS304/SS316/SS+PTFE COATED HAVING 10” TO 12”Calibrated Gauge Board : 6” wide x Al white powder coating with black graduations & numericalLeast Count : 10 MMMaximum Temperature : 80°C (PP) / 300°C (SS)Maximum Pressure : 10 KG/CM2Float Wire Rope : Ø2.5mm x SS 316 / SS 304 (multistring) / Ø6mm x PP (multistring)Installation : Grounded Level Tank / Underground Tank (sump) / Overhead TankSpecific Gravity of Fluid : 0.75 TO 2.0Connecting Pipe : Carbon Steel Powder CoatedLocal IndicationDirect : Powder coated Red CI pointer with Nylon Rollers to provide super smooth movement along gauge board. Pointer Tip indicates ‘Level’.Pulley Assemblies : Cadmium Plated Steel Pulley with PTFE bush and SS shaft housed in weather proof CI enclosure.(2 NOS)Protection ConduitHorizontal Limb : MS pipe 25NB x 400mm to 800mm (adjustable)Vertical Limb : MS pipe 25NB x 195mm & 100mm longProcess Connections : 1” 150#Note : Custom made assemblies can be provided for specific applications Additional Information: Item Code: FBLISS09 Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

Float & Board type level gauge is a weighing liquid level measuring system applicable for non-pressurized storage tanks/vessels. It is basically a balanced counterweight system with an arrow shaped pointer which smoothen the indication process. It is suitable for most liquid application media whose specific gravity is ≥ 0.8. Additionally, it effectively works in the phenomena of turbulence by ensuring stability using guided rope assembly with an anchor. Installation available for Ground Level Tank, Overhead Level Tank and Underground Level Tank. Wide Range Tank Height: Guided (up to 20m), Non-Guided (up to 8m) Float Ø 280mm × 80mm (SS 316 with Tested Pressure 2kg/cm²) Specific Gravity ≥ 0.8 Application Temperature Range : Up to 100° C Adjustable Horizontal Pipe (500 to 1000 mm) Wetted Parts : SS 316 Weatherproof Scale Board (SS 304 & Pure Polyester Powder Coated Aluminum) Process Connection: Flanges Radium Visibility from longer Distance Additional Information: Item Code: NRG-FBLI-SS_108 Delivery Time: week Packaging Details: Export worthy packing

reading in pressurized tank Wetted Parts in M.S., S.S.304, S.S.316, Polypropylene, Aluminium, M.S.+PTFE, M.S. + P.P Lined, M.S. With Rubber Lined. Isolation Valve & Drain Valve in request Max 3000 mm Length in Single Piece Glass Protected channel available in M.S. S.S.304, S.S.316, FRP Hyd Test Up to 10 Kg/Cm2 Magnetized Float Moves with Level In Extemal Chamber and Magnetic Follower Capsule OR Roller OR Ball Indicates the Liquid Level Externally. Wetted Parts in S.S.304, S.S.316, Polypropylene, PTFE Lined Mainly Use in Furnace Oil, Benzene, Toluene, Ethylene, Alcohol, Acid, Liquid, Gases Like NH3, LPG, SO2, PLC3, etc. High & Low Level Switch, Level Transmitter 4-20 mA, on request. Height up to 5 Mtr Additional Information: Production Capacity: 100 Delivery Time: 1 WEEK Packaging Details: EXPORTWORTY

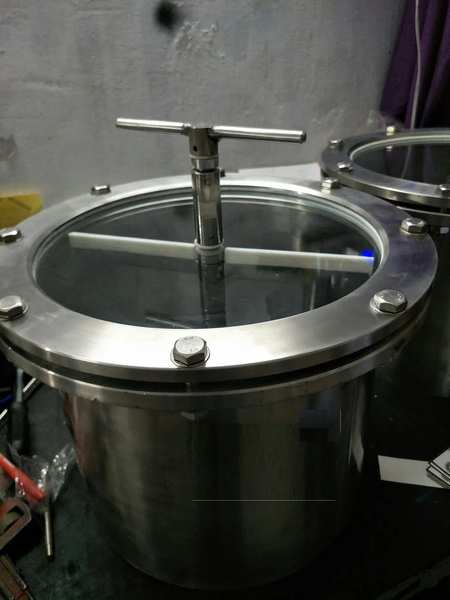

Product Description NRG GLOBAL offer a high quality Tank Mounted View Glass to our customers. These are aesthetically designed and precision-engineered for their higher performance and durable work life. In addition to this, all these Tank Mounted View Glasses are rigidly checked on various quality parameters to deliver a flawless range in the market. Moreover, clients can get the offered assortment from us at very affordable prices and within given span of time. Features: Long working life High efficiency Light in weight Optimum quality Ansi Flange Type Design: NRG MAKE Sight Glasses of ANSI Flanged type are Bolt-on units designed for attachment to ANSI flanged nozzles or vessel studding outlets The lower flange is a standard ANSI 150# Raised Face flange Higher rated units are also available. (300 and 600) Material certification is furnished with all the units Weld Neck Flange Type Design: NRG make Sight Glasses of Weld Neck Flange type are weld neck units designed to be welded on to pipe ends or into tanks or vessels The lower flange is a standard ANSI 150# weld neck flange Higher rated units are also available (300 and 600) Material certification is furnished with all the units Performance: Temperature Ratings: Maximum Operating Temperature rating is 200o C Connections: Flanged OR Socket Weld OR Butt Weld OR Weld Pad OR Weld Neck Flanged End Connection Pressure Ratings: Maximum Pressure rating is 25 Kg / Cm2 Sizes: From 15 NB to 300 NB. Materials of Construction: Pad Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Cover Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Window: Toughened Borosilicate Glass./ Reflex etc Fasteners: SS316 or SS304 or SA 193 Gr.B7 Gasket: CAF or PTFE Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

Product Description NRG GLOBAL offer a high quality Tank Mounted View Glass to our customers. These are aesthetically designed and precision-engineered for their higher performance and durable work life. In addition to this, all these Tank Mounted View Glasses are rigidly checked on various quality parameters to deliver a flawless range in the market. Moreover, clients can get the offered assortment from us at very affordable prices and within given span of time. Features: Long working life High efficiency Light in weight Optimum quality Ansi Flange Type Design: NRG MAKE Sight Glasses of ANSI Flanged type are Bolt-on units designed for attachment to ANSI flanged nozzles or vessel studding outlets The lower flange is a standard ANSI 150# Raised Face flange Higher rated units are also available. (300 and 600) Material certification is furnished with all the units Weld Neck Flange Type Design: NRG make Sight Glasses of Weld Neck Flange type are weld neck units designed to be welded on to pipe ends or into tanks or vessels The lower flange is a standard ANSI 150# weld neck flange Higher rated units are also available (300 and 600) Material certification is furnished with all the units Performance: Temperature Ratings: Maximum Operating Temperature rating is 200o C Connections: Flanged OR Socket Weld OR Butt Weld OR Weld Pad OR Weld Neck Flanged End Connection Pressure Ratings: Maximum Pressure rating is 25 Kg / Cm2 Sizes: From 15 NB to 300 NB. Materials of Construction: Pad Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Cover Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Window: Toughened Borosilicate Glass./ Reflex etc Fasteners: SS316 or SS304 or SA 193 Gr.B7 Gasket: CAF or PTFE Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

NRG GLOBAL INSTRUMENTS Manufactures and exporters of Double Window Type Sight Glass (Sight Flow Indicator) in Cast Construction & Fabricated design to meet an industrial requirement of various applications to inspect the process fluid. In Double Window type Sight Flow Indicator (Sight Glass) Contains Two Toughened Glasses Mounted opposite to each other. NRG GLOBAL Double Window Type Sight Glass (Sight Flow Indicator) available with various thickness and diameter of glass to suit various applications respects to fluid pressure and temperature. Double Window Type Sight Glass (Sight Flow Indicator) is very easy to replace glass without dismantling the whole Sight Glass assembly from process line. Double window type Sight Glass gives better performance in application of Higher Pressure & Temperature. Wide range of Toughen Glasses available to suit industrial pressure. All toughen glasses standard as per DIN 7080. Sight Glass body material available ASTM A 216 GR. WCB (Cast Carbon Steel), ASTM A 351 GR. CF 8 (Stainless Steel 304), ASTM A 351 GR. CF 8M (Stainless Steel 316), ASTM A 351 GR. CF 3 (Stainless Steel 304L), ASTM A 351 GR. CF 3M (Stainless Steel 316L), ASTM A 351 GR. CN 7M (Alloy 20) and others on request. Body Hydraulic Test Pressure design up to 17 Kg./Cm2. We also manufacturing Jacketed Type Sight Glass & Steam Jacketed Double Window Type Sight Flow Indicator Investment Casting (I.C.) Body Stainless Steel 304/316/304L/316L/Alloy 20 Sight Glass Flow Indicator Sight Flow Indicator Manufacturing Range - 1"(DN 25) to 12" (DN 300) Additional Information: Item Code: DWSG09 Production Capacity: 100 Delivery Time: EX STOCK Packaging Details: EXPORT WORTHY PACKING

Product Description NRG GLOBAL offer a high quality Tank Mounted View Glass to our customers. These are aesthetically designed and precision-engineered for their higher performance and durable work life. In addition to this, all these Tank Mounted View Glasses are rigidly checked on various quality parameters to deliver a flawless range in the market. Moreover, clients can get the offered assortment from us at very affordable prices and within given span of time. Features: Long working life High efficiency Light in weight Optimum quality Ansi Flange Type Design: NRG MAKE Sight Glasses of ANSI Flanged type are Bolt-on units designed for attachment to ANSI flanged nozzles or vessel studding outlets The lower flange is a standard ANSI 150# Raised Face flange Higher rated units are also available. (300 and 600) Material certification is furnished with all the units Weld Neck Flange Type Design: NRG make Sight Glasses of Weld Neck Flange type are weld neck units designed to be welded on to pipe ends or into tanks or vessels The lower flange is a standard ANSI 150# weld neck flange Higher rated units are also available (300 and 600) Material certification is furnished with all the units Performance: Temperature Ratings: Maximum Operating Temperature rating is 200o C Connections: Flanged OR Socket Weld OR Butt Weld OR Weld Pad OR Weld Neck Flanged End Connection Pressure Ratings: Maximum Pressure rating is 25 Kg / Cm2 Sizes: From 15 NB to 300 NB. Materials of Construction: Pad Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Cover Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Window: Toughened Borosilicate Glass./ Reflex etc Fasteners: SS316 or SS304 or SA 193 Gr.B7 Gasket: CAF or PTFE Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING

Product Description NRG GLOBAL offer a high quality Tank Mounted View Glass to our customers. These are aesthetically designed and precision-engineered for their higher performance and durable work life. In addition to this, all these Tank Mounted View Glasses are rigidly checked on various quality parameters to deliver a flawless range in the market. Moreover, clients can get the offered assortment from us at very affordable prices and within given span of time. Features: Long working life High efficiency Light in weight Optimum quality Ansi Flange Type Design: NRG MAKE Sight Glasses of ANSI Flanged type are Bolt-on units designed for attachment to ANSI flanged nozzles or vessel studding outlets The lower flange is a standard ANSI 150# Raised Face flange Higher rated units are also available. (300 and 600) Material certification is furnished with all the units Weld Neck Flange Type Design: NRG make Sight Glasses of Weld Neck Flange type are weld neck units designed to be welded on to pipe ends or into tanks or vessels The lower flange is a standard ANSI 150# weld neck flange Higher rated units are also available (300 and 600) Material certification is furnished with all the units Performance: Temperature Ratings: Maximum Operating Temperature rating is 200o C Connections: Flanged OR Socket Weld OR Butt Weld OR Weld Pad OR Weld Neck Flanged End Connection Pressure Ratings: Maximum Pressure rating is 25 Kg / Cm2 Sizes: From 15 NB to 300 NB. Materials of Construction: Pad Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Cover Flange: M.S, C.S. (A–105), S.S.304, S.S.316, or any other alloy Window: Toughened Borosilicate Glass./ Reflex etc Fasteners: SS316 or SS304 or SA 193 Gr.B7 Gasket: CAF or PTFE Additional Information: Production Capacity: 100 Delivery Time: WEEK Packaging Details: EXPORT WORTHY PACKING
